Isis::OsirisRexOcamsDistortionMap Class Reference

Distort/undistort focal plane coordinates for OSIRIS REx's cameras. More...

#include <OsirisRexOcamsDistortionMap.h>

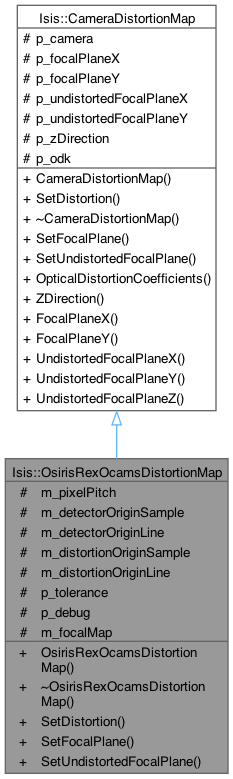

Inheritance diagram for Isis::OsirisRexOcamsDistortionMap:
Inheritance graph
Collaboration diagram for Isis::OsirisRexOcamsDistortionMap:
Collaboration graph

Public Member Functions

 OsirisRexOcamsDistortionMap (Camera *parent, double zDirection=1.0)
 OSIRIS REx Camera distortion map constructor.

virtual ~OsirisRexOcamsDistortionMap ()
 Default Destructor.

virtual void SetDistortion (int naifIkCode)
 Load distortion coefficients and center-of-distortion for OCAMS.

virtual bool SetFocalPlane (double dx, double dy)
 Compute undistorted focal plane x/y.

virtual bool SetUndistortedFocalPlane (double ux, double uy)
 Compute distorted focal plane x/y.

std::vector< double > OpticalDistortionCoefficients () const
 Retrieve the distortion coefficients used for this model.

double ZDirection () const
 Gets the z-direction for this camera.

double FocalPlaneX () const
 Gets the x-value in the focal plane coordinate system.

double FocalPlaneY () const
 Gets the y-value in the focal plane coordinate system.

double UndistortedFocalPlaneX () const
 Gets the x-value in the undistorted focal plane coordinate system.

double UndistortedFocalPlaneY () const
 Gets the y-value in the undistorted focal plane coordinate system.

double UndistortedFocalPlaneZ () const
 Gets the z-value in the undistorted focal plane coordinate system.


Protected Attributes

double m_pixelPitch
 The pixel pitch for OCAMS.

double m_detectorOriginSample
 The origin of the detector's sample coordinate.

double m_detectorOriginLine
 The origin of the detector's line coordinate.

double m_distortionOriginSample
 The distortion's origin sample coordinate.

double m_distortionOriginLine
 The distortion's origin line coordinate.

double p_tolerance
 Convergence tolerance.

bool p_debug
 Debug the model.

QSharedPointer< CameraFocalPlaneMap > m_focalMap

Camera * p_camera
 The camera to distort/undistort.

double p_focalPlaneX
 Distorted focal plane x.

double p_focalPlaneY
 Distorted focal plane y.

double p_undistortedFocalPlaneX
 Undistorted focal plane x.

double p_undistortedFocalPlaneY
 Undistorted focal plane y.

double p_zDirection
 Undistorted focal plane z.

std::vector< double > p_odk = {}
 Vector of distortion coefficients.


Detailed Description

Distort/undistort focal plane coordinates for OSIRIS REx's cameras.

Creates a map for adding/removing optical distortions from the focal plane of a camera. Modified from original version (which still exists for OCams) to include a local version of the focal plane for support in the use of the OpenCV distortion model.

See also
Camera
Author
2019-01-23 Kris Becker

Constructor & Destructor Documentation

◆ OsirisRexOcamsDistortionMap()

Isis::OsirisRexOcamsDistortionMap::OsirisRexOcamsDistortionMap ( Camera * parent,
double zDirection = 1.0 )

OSIRIS REx Camera distortion map constructor.

Create a camera distortion map for OSIRIS REx's.

This class maps between distorted and undistorted focal plane x/y's. The default mapping is the identity, that is, the focal plane x/y and undistorted focal plane x/y will be identical.

Parameters
parentthe parent camera that will use this distortion map
zDirectionthe direction of the focal plane Z-axis (either 1 or -1)

References _FILEINFO_, Isis::CameraFocalPlaneMap::DetectorLineOrigin(), Isis::CameraFocalPlaneMap::DetectorSampleOrigin(), Isis::Camera::FocalPlaneMap(), m_detectorOriginLine, m_detectorOriginSample, m_focalMap, m_pixelPitch, Isis::CameraDistortionMap::p_camera, p_debug, p_tolerance, Isis::Camera::PixelPitch(), and Isis::IException::Programmer.

◆ ~OsirisRexOcamsDistortionMap()

Isis::OsirisRexOcamsDistortionMap::~OsirisRexOcamsDistortionMap ( )
virtual

Default Destructor.

Member Function Documentation

◆ FocalPlaneX()

double Isis::CameraDistortionMap::FocalPlaneX ( ) const
inherited

Gets the x-value in the focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The distorted focal plane x.

References Isis::CameraDistortionMap::p_focalPlaneX.

Referenced by Isis::Camera::SetRightAscensionDeclination(), and Isis::LineScanCameraSkyMap::SetSky().

◆ FocalPlaneY()

double Isis::CameraDistortionMap::FocalPlaneY ( ) const
inherited

Gets the y-value in the focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The distorted focal plane y.

References Isis::CameraDistortionMap::p_focalPlaneY.

Referenced by Isis::Camera::SetRightAscensionDeclination().

◆ OpticalDistortionCoefficients()

std::vector< double > Isis::CameraDistortionMap::OpticalDistortionCoefficients ( ) const
inherited

Retrieve the distortion coefficients used for this model.

Returns
The optical distortion of polynomial coefficients.

References Isis::CameraDistortionMap::p_odk.

◆ SetDistortion()

void Isis::OsirisRexOcamsDistortionMap::SetDistortion ( int naifIkCode)
virtual

Load distortion coefficients and center-of-distortion for OCAMS.

This method loads the distortion coefficients from the instrument kernel. OCAMS's coefficients in the NAIF instrument kernel are expected to be in one of the following forms:

INS-64361_OD_K_FILTER = (2.21E-05, 1.71E-04, 5.96E-05, 0.00E+00, 0.00E+00)
INS-64361_OD_CENTER_FILTER = (486.2, 450.3)

Or if the distortion is not filter-dependent:

INS-64361_OD_K = (2.21E-05, 1.71E-04, 5.96E-05, 0.00E+00, 0.00E+00)
INS-64361_OD_CENTER = (486.2, 450.3)
Parameters
naifIkCodeCode to search for in instrument kernel

Reimplemented from Isis::CameraDistortionMap.

References Isis::Spice::getDouble(), Isis::Spice::getString(), m_distortionOriginLine, m_distortionOriginSample, Isis::CameraDistortionMap::p_camera, p_debug, Isis::CameraDistortionMap::p_odk, p_tolerance, Isis::toBool(), and Isis::toString().

◆ SetFocalPlane()

bool Isis::OsirisRexOcamsDistortionMap::SetFocalPlane ( double dx,
double dy )
virtual

Compute undistorted focal plane x/y.

Compute undistorted focal plane x/y given a distorted focal plane x/y. After calling this method, you can obtain the undistorted x/y via the UndistortedFocalPlaneX and UndistortedFocalPlaneY methods

Parameters
dxdistorted focal plane x in millimeters
dydistorted focal plane y in millimeters
Returns
if the conversion was successful

Reimplemented from Isis::CameraDistortionMap.

References Isis::CameraFocalPlaneMap::DetectorLine(), Isis::CameraFocalPlaneMap::DetectorSample(), Isis::Camera::FocalPlaneMap(), m_detectorOriginLine, m_detectorOriginSample, m_distortionOriginLine, m_distortionOriginSample, m_focalMap, m_pixelPitch, Isis::CameraDistortionMap::p_camera, p_debug, Isis::CameraDistortionMap::p_focalPlaneX, Isis::CameraDistortionMap::p_focalPlaneY, Isis::CameraDistortionMap::p_odk, p_tolerance, Isis::CameraDistortionMap::p_undistortedFocalPlaneX, and Isis::CameraDistortionMap::p_undistortedFocalPlaneY.

◆ SetUndistortedFocalPlane()

bool Isis::OsirisRexOcamsDistortionMap::SetUndistortedFocalPlane ( double ux,
double uy )
virtual

Compute distorted focal plane x/y.

Compute distorted focal plane x/y given an undistorted focal plane x/y.

After calling this method, you can obtain the distorted x/y via the FocalPlaneX and FocalPlaneY methods

Parameters
uxundistorted focal plane x in millimeters
uyundistorted focal plane y in millimeters
Returns
if the conversion was successful
See also
SetDistortion

Reimplemented from Isis::CameraDistortionMap.

References Isis::CameraFocalPlaneMap::DetectorLine(), Isis::CameraFocalPlaneMap::DetectorSample(), Isis::Camera::FocalPlaneMap(), m_detectorOriginLine, m_detectorOriginSample, m_distortionOriginLine, m_distortionOriginSample, m_focalMap, m_pixelPitch, Isis::CameraDistortionMap::p_camera, p_debug, Isis::CameraDistortionMap::p_focalPlaneX, Isis::CameraDistortionMap::p_focalPlaneY, Isis::CameraDistortionMap::p_odk, Isis::CameraDistortionMap::p_undistortedFocalPlaneX, and Isis::CameraDistortionMap::p_undistortedFocalPlaneY.

◆ UndistortedFocalPlaneX()

double Isis::CameraDistortionMap::UndistortedFocalPlaneX ( ) const
inherited

Gets the x-value in the undistorted focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The undistorted focal plane x

References Isis::CameraDistortionMap::p_undistortedFocalPlaneX.

Referenced by Isis::LidarControlPoint::ComputeResiduals(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ UndistortedFocalPlaneY()

double Isis::CameraDistortionMap::UndistortedFocalPlaneY ( ) const
inherited

Gets the y-value in the undistorted focal plane coordinate system.

This is represented in millimeters from the origin.

Returns
The undistorted focal plane y

References Isis::CameraDistortionMap::p_undistortedFocalPlaneY.

Referenced by Isis::LidarControlPoint::ComputeResiduals(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ UndistortedFocalPlaneZ()

double Isis::CameraDistortionMap::UndistortedFocalPlaneZ ( ) const
inherited

Gets the z-value in the undistorted focal plane coordinate system.

This is represented as the focal length, in millimeters, with the sign indicating z-direction.

Returns
The undistorted focal plane z

References Isis::Camera::FocalLength(), Isis::CameraDistortionMap::p_camera, and Isis::CameraDistortionMap::p_zDirection.

Referenced by Isis::CameraGroundMap::GetdXYdOrientation(), Isis::CameraGroundMap::GetdXYdPoint(), Isis::CameraGroundMap::GetdXYdPosition(), Isis::CameraGroundMap::GetdXYdTOrientation(), Isis::CameraGroundMap::GetXY(), Isis::CameraGroundMap::LookCtoFocalPlaneXY(), Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ ZDirection()

double Isis::CameraDistortionMap::ZDirection ( ) const
inherited

Gets the z-direction for this camera.

The direction is represented as +/- 1.

Returns
The direction of the focal plane Z-axis

References Isis::CameraDistortionMap::p_zDirection.

Member Data Documentation

◆ m_detectorOriginLine

double Isis::OsirisRexOcamsDistortionMap::m_detectorOriginLine
protected

The origin of the detector's line coordinate.

Referenced by OsirisRexOcamsDistortionMap(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ m_detectorOriginSample

double Isis::OsirisRexOcamsDistortionMap::m_detectorOriginSample
protected

The origin of the detector's sample coordinate.

Referenced by OsirisRexOcamsDistortionMap(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ m_distortionOriginLine

double Isis::OsirisRexOcamsDistortionMap::m_distortionOriginLine
protected

The distortion's origin line coordinate.

Referenced by SetDistortion(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ m_distortionOriginSample

double Isis::OsirisRexOcamsDistortionMap::m_distortionOriginSample
protected

The distortion's origin sample coordinate.

Referenced by SetDistortion(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ m_focalMap

QSharedPointer<CameraFocalPlaneMap> Isis::OsirisRexOcamsDistortionMap::m_focalMap
protected

Referenced by OsirisRexOcamsDistortionMap(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ m_pixelPitch

double Isis::OsirisRexOcamsDistortionMap::m_pixelPitch
protected

The pixel pitch for OCAMS.

Referenced by OsirisRexOcamsDistortionMap(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ p_camera

Camera* Isis::CameraDistortionMap::p_camera
protectedinherited

The camera to distort/undistort.

Referenced by Isis::LroWideAngleCameraDistortionMap::addFilter(), Isis::CameraDistortionMap::CameraDistortionMap(), Isis::OsirisRexTagcamsDistortionMap::distortion_to_pointing_frame(), Isis::KaguyaTcCameraDistortionMap::KaguyaTcCameraDistortionMap(), Isis::MarciDistortionMap::MarciDistortionMap(), Isis::NewHorizonsMvicFrameCameraDistortionMap::NewHorizonsMvicFrameCameraDistortionMap(), Isis::NewHorizonsMvicTdiCameraDistortionMap::NewHorizonsMvicTdiCameraDistortionMap(), Isis::OsirisRexDistortionMap::OsirisRexDistortionMap(), OsirisRexOcamsDistortionMap(), Isis::OsirisRexTagcamsDistortionMap::pointing_to_distortion_frame(), Isis::KaguyaMiCameraDistortionMap::SetDistortion(), Isis::LoHighDistortionMap::SetDistortion(), Isis::LoMediumDistortionMap::SetDistortion(), Isis::LroNarrowAngleDistortionMap::SetDistortion(), Isis::TaylorCameraDistortionMap::SetDistortion(), Isis::CameraDistortionMap::SetDistortion(), Isis::JunoDistortionMap::SetDistortion(), SetDistortion(), Isis::OsirisRexDistortionMap::SetDistortion(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::TgoCassisDistortionMap(), and Isis::CameraDistortionMap::UndistortedFocalPlaneZ().

◆ p_debug

bool Isis::OsirisRexOcamsDistortionMap::p_debug
protected

Debug the model.

Referenced by OsirisRexOcamsDistortionMap(), SetDistortion(), SetFocalPlane(), and SetUndistortedFocalPlane().

◆ p_focalPlaneX

double Isis::CameraDistortionMap::p_focalPlaneX
protectedinherited

Distorted focal plane x.

Referenced by Isis::CameraDistortionMap::FocalPlaneX(), Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and SetUndistortedFocalPlane().

◆ p_focalPlaneY

double Isis::CameraDistortionMap::p_focalPlaneY
protectedinherited

Distorted focal plane y.

Referenced by Isis::CameraDistortionMap::FocalPlaneY(), Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and SetUndistortedFocalPlane().

◆ p_odk

std::vector<double> Isis::CameraDistortionMap::p_odk = {}
protectedinherited

Vector of distortion coefficients.

Referenced by Isis::LroWideAngleCameraDistortionMap::LroWideAngleCameraDistortionMap(), Isis::MarciDistortionMap::MarciDistortionMap(), Isis::CameraDistortionMap::OpticalDistortionCoefficients(), Isis::LroWideAngleCameraDistortionMap::setBand(), Isis::LroNarrowAngleDistortionMap::SetDistortion(), Isis::CameraDistortionMap::SetDistortion(), Isis::JunoDistortionMap::SetDistortion(), SetDistortion(), Isis::OsirisRexDistortionMap::SetDistortion(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), and SetUndistortedFocalPlane().

◆ p_tolerance

double Isis::OsirisRexOcamsDistortionMap::p_tolerance
protected

Convergence tolerance.

Referenced by OsirisRexOcamsDistortionMap(), SetDistortion(), and SetFocalPlane().

◆ p_undistortedFocalPlaneX

double Isis::CameraDistortionMap::p_undistortedFocalPlaneX
protectedinherited

Undistorted focal plane x.

Referenced by Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), and Isis::CameraDistortionMap::UndistortedFocalPlaneX().

◆ p_undistortedFocalPlaneY

double Isis::CameraDistortionMap::p_undistortedFocalPlaneY
protectedinherited

Undistorted focal plane y.

Referenced by Isis::ApolloMetricDistortionMap::SetFocalPlane(), Isis::RadarSlantRangeMap::SetFocalPlane(), Isis::RadialDistortionMap::SetFocalPlane(), Isis::ReseauDistortionMap::SetFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetFocalPlane(), Isis::ClementineUvvisDistortionMap::SetFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetFocalPlane(), Isis::LoHighDistortionMap::SetFocalPlane(), Isis::LoMediumDistortionMap::SetFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetFocalPlane(), Isis::TaylorCameraDistortionMap::SetFocalPlane(), Isis::MocWideAngleDistortionMap::SetFocalPlane(), Isis::MarciDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetFocalPlane(), Isis::ThemisIrDistortionMap::SetFocalPlane(), Isis::ThemisVisDistortionMap::SetFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetFocalPlane(), Isis::TgoCassisDistortionMap::SetFocalPlane(), Isis::DawnFcDistortionMap::SetFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetFocalPlane(), Isis::CameraDistortionMap::SetFocalPlane(), Isis::Hyb2OncDistortionMap::SetFocalPlane(), Isis::JunoDistortionMap::SetFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetFocalPlane(), Isis::OsirisRexDistortionMap::SetFocalPlane(), SetFocalPlane(), Isis::DawnFcDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsLorriDistortionMap::SetUndistortedFocalPlane(), Isis::ApolloMetricDistortionMap::SetUndistortedFocalPlane(), Isis::RadarSlantRangeMap::SetUndistortedFocalPlane(), Isis::RadialDistortionMap::SetUndistortedFocalPlane(), Isis::ReseauDistortionMap::SetUndistortedFocalPlane(), Isis::Chandrayaan1M3DistortionMap::SetUndistortedFocalPlane(), Isis::ClementineUvvisDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaMiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::LoHighDistortionMap::SetUndistortedFocalPlane(), Isis::LoMediumDistortionMap::SetUndistortedFocalPlane(), Isis::LroNarrowAngleDistortionMap::SetUndistortedFocalPlane(), Isis::LroWideAngleCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TaylorCameraDistortionMap::SetUndistortedFocalPlane(), Isis::MocWideAngleDistortionMap::SetUndistortedFocalPlane(), Isis::MarciDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicFrameCameraDistortionMap::SetUndistortedFocalPlane(), Isis::NewHorizonsMvicTdiCameraDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisIrDistortionMap::SetUndistortedFocalPlane(), Isis::ThemisVisDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexTagcamsDistortionMap::SetUndistortedFocalPlane(), Isis::RosettaOsirisCameraDistortionMap::SetUndistortedFocalPlane(), Isis::TgoCassisDistortionMap::SetUndistortedFocalPlane(), Isis::CameraDistortionMap::SetUndistortedFocalPlane(), Isis::Hyb2OncDistortionMap::SetUndistortedFocalPlane(), Isis::JunoDistortionMap::SetUndistortedFocalPlane(), Isis::KaguyaTcCameraDistortionMap::SetUndistortedFocalPlane(), Isis::OsirisRexDistortionMap::SetUndistortedFocalPlane(), SetUndistortedFocalPlane(), and Isis::CameraDistortionMap::UndistortedFocalPlaneY().

◆ p_zDirection

double Isis::CameraDistortionMap::p_zDirection
protectedinherited

Undistorted focal plane z.

Referenced by Isis::CameraDistortionMap::CameraDistortionMap(), Isis::CameraDistortionMap::UndistortedFocalPlaneZ(), and Isis::CameraDistortionMap::ZDirection().

The documentation for this class was generated from the following files:
