Isis::NormModel Class Reference

#include <NormModel.h>

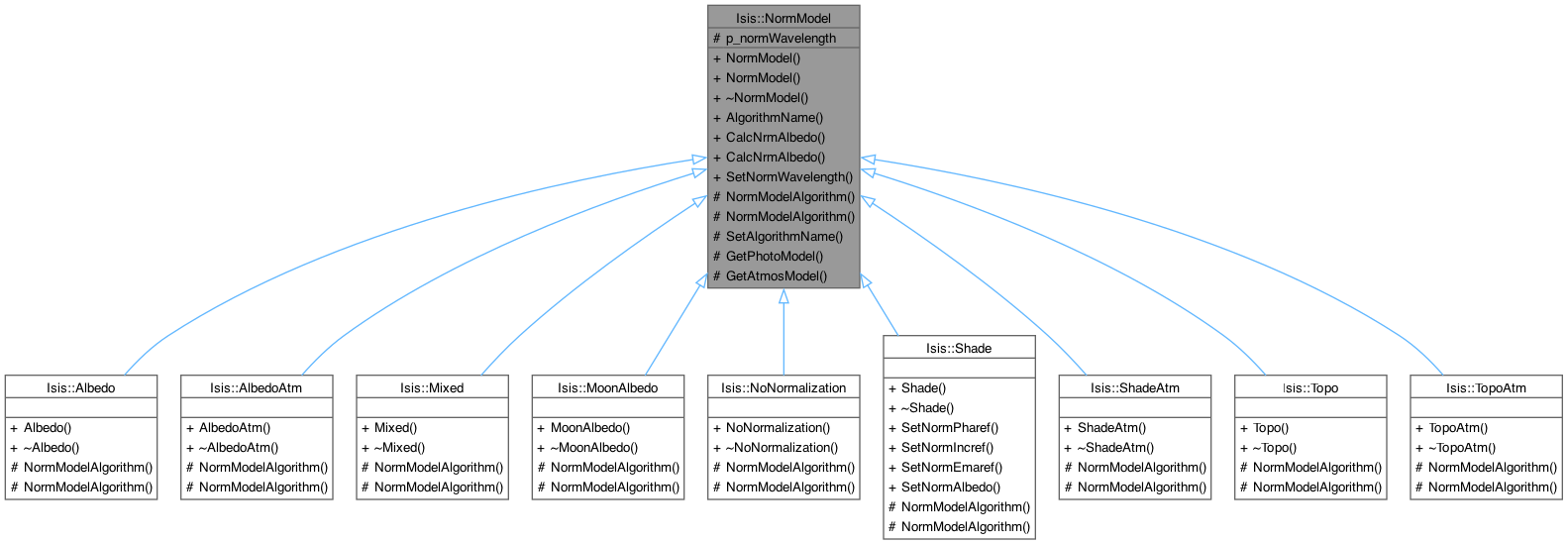

Inheritance diagram for Isis::NormModel:

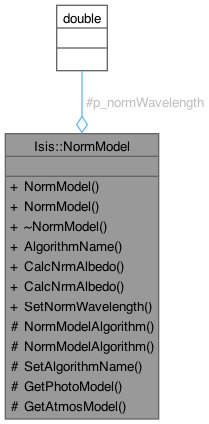

Collaboration diagram for Isis::NormModel:

Public Member Functions
	NormModel (Pvl &pvl, PhotoModel &pmodel)
	Create a NormModel object.
	NormModel (Pvl &pvl, PhotoModel &pmodel, AtmosModel &amodel)
	Create a NormModel object.
virtual	~NormModel ()
std::string	AlgorithmName () const
	Return normalization algorithm name.
void	CalcNrmAlbedo (double pha, double inc, double ema, double dn, double &albedo, double &mult, double &base)
	Calculate the albedo normalization.
void	CalcNrmAlbedo (double pha, double inc, double ema, double deminc, double demema, double dn, double &albedo, double &mult, double &base)
	Calculate the normalization albedo using photometric angle information.
virtual void	SetNormWavelength (double wavelength)
	Set the wavelength parameter.

Protected Member Functions
virtual void	NormModelAlgorithm (double pha, double inc, double ema, double dn, double &albedo, double &mult, double &base)=0
virtual void	NormModelAlgorithm (double pha, double inc, double ema, double deminc, double demema, double dn, double &albedo, double &mult, double &base)=0
void	SetAlgorithmName (std::string name)
PhotoModel *	GetPhotoModel ()
AtmosModel *	GetAtmosModel ()

Protected Attributes
double	p_normWavelength

Detailed Description

Author

1998-12-21 Randy Kirk

Constructor & Destructor Documentation

NormModel() [1/2]

Isis::NormModel::NormModel	(	Pvl &	pvl,
		PhotoModel &	pmodel )

Create a NormModel object.

Because this is a pure virtual class you can not create a NormModel class directly. Instead, see the NormModelFactory class.

Parameters

pvl	A pvl object containing a valid NormModel specification

See also

normalizationModels.doc

References p_normWavelength.

Referenced by Isis::Albedo::Albedo(), Isis::AlbedoAtm::AlbedoAtm(), Isis::Mixed::Mixed(), Isis::MoonAlbedo::MoonAlbedo(), Isis::NoNormalization::NoNormalization(), Isis::Shade::Shade(), Isis::ShadeAtm::ShadeAtm(), Isis::Topo::Topo(), and Isis::TopoAtm::TopoAtm().

NormModel() [2/2]

Isis::NormModel::NormModel	(	Pvl &	pvl,
		PhotoModel &	pmodel,
		AtmosModel &	amodel )

Create a NormModel object.

Because this is a pure virtual class you can not create a NormModel class directly. Instead, see the NormModelFactory class.

Parameters

pvl	A pvl object containing a valid NormModel specification

See also

normalizationModels.doc

References p_normWavelength.

~NormModel()

virtual Isis::NormModel::~NormModel ( )

inlinevirtual

Member Function Documentation

AlgorithmName()

std::string Isis::NormModel::AlgorithmName ( ) const

inline

Return normalization algorithm name.

CalcNrmAlbedo() [1/2]

void Isis::NormModel::CalcNrmAlbedo	(	double	pha,
		double	inc,
		double	ema,
		double	deminc,
		double	demema,
		double	dn,
		double &	albedo,
		double &	mult,
		double &	base )

Calculate the normalization albedo using photometric angle information.

Parameters

pha	input phase angle
inc	input incidence angle for ellipsoid
ema	input emission angle for ellipsoid
deminc	input incidence angle for dem
demema	input emission angle for dem
dn	input albedo value

References NormModelAlgorithm().

CalcNrmAlbedo() [2/2]

void Isis::NormModel::CalcNrmAlbedo	(	double	pha,
		double	inc,
		double	ema,
		double	dn,
		double &	albedo,
		double &	mult,
		double &	base )

Calculate the albedo normalization.

Calculate the normalization albedo using photometric angle information.

Parameters

pha	input phase angle
inc	input incidence angle
ema	input emission angle
dn	input albedo value

References NormModelAlgorithm().

GetAtmosModel()

AtmosModel * Isis::NormModel::GetAtmosModel ( )

inlineprotected

Referenced by Isis::AlbedoAtm::AlbedoAtm(), Isis::AlbedoAtm::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), and Isis::TopoAtm::TopoAtm().

GetPhotoModel()

PhotoModel * Isis::NormModel::GetPhotoModel ( )

inlineprotected

Referenced by Isis::Albedo::Albedo(), Isis::AlbedoAtm::AlbedoAtm(), Isis::Mixed::Mixed(), Isis::Albedo::NormModelAlgorithm(), Isis::AlbedoAtm::NormModelAlgorithm(), Isis::Mixed::NormModelAlgorithm(), Isis::MoonAlbedo::NormModelAlgorithm(), Isis::NoNormalization::NormModelAlgorithm(), Isis::Shade::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), and Isis::TopoAtm::TopoAtm().

NormModelAlgorithm() [1/2]

virtual void Isis::NormModel::NormModelAlgorithm ( double pha, double inc, double ema, double deminc, double demema, double dn, double & albedo, double & mult, double & base )

protectedpure virtual

Implemented in Isis::Albedo, Isis::AlbedoAtm, Isis::Mixed, Isis::MoonAlbedo, Isis::NoNormalization, Isis::Shade, Isis::ShadeAtm, Isis::Topo, and Isis::TopoAtm.

NormModelAlgorithm() [2/2]

virtual void Isis::NormModel::NormModelAlgorithm ( double pha, double inc, double ema, double dn, double & albedo, double & mult, double & base )

protectedpure virtual

Implemented in Isis::Albedo, Isis::AlbedoAtm, Isis::Mixed, Isis::MoonAlbedo, Isis::NoNormalization, Isis::Shade, Isis::ShadeAtm, Isis::Topo, and Isis::TopoAtm.

Referenced by CalcNrmAlbedo(), and CalcNrmAlbedo().

SetAlgorithmName()

void Isis::NormModel::SetAlgorithmName ( std::string name )

inlineprotected

SetNormWavelength()

void Isis::NormModel::SetNormWavelength ( double wavelength )

virtual

Set the wavelength parameter.

This value is obtained from the BandBin Center keyword of the image. This must be set by the application.

References p_normWavelength.

Member Data Documentation

p_normWavelength

double Isis::NormModel::p_normWavelength

protected

Referenced by Isis::MoonAlbedo::MoonAlbedo(), NormModel(), NormModel(), and SetNormWavelength().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/base/objs/NormModel/NormModel.h
• /Users/astamile/ISIS3/isis/src/base/objs/NormModel/NormModel.cpp
