Isis Developer Reference
Public Types | Public Slots | Signals | Public Member Functions | Protected Member Functions | List of all members
Isis::AbstractTableModel Class Referenceabstract

Translates the tree model into a table model. More...

#include <AbstractTableModel.h>

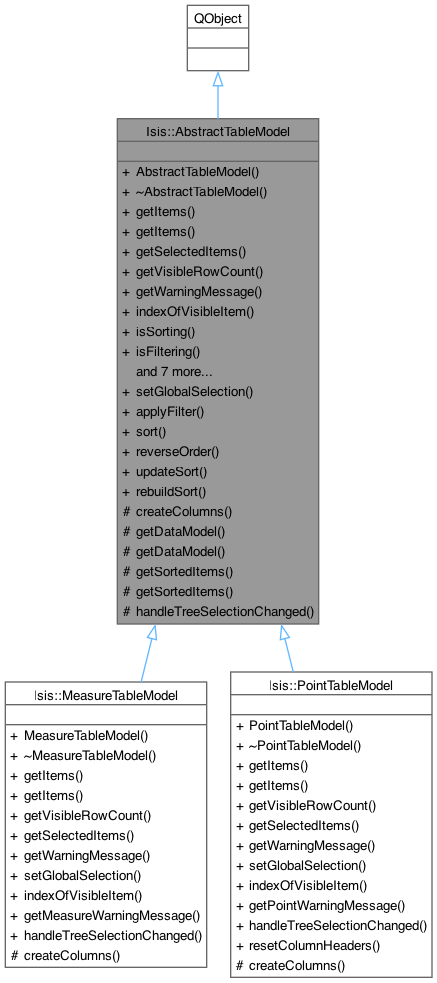

Inheritance diagram for Isis::AbstractTableModel:
Inheritance graph

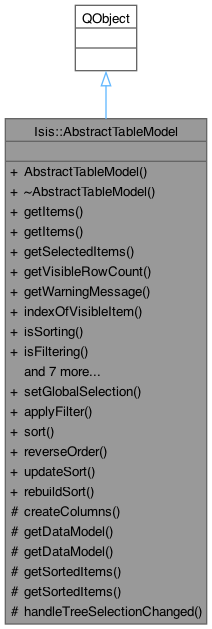

Collaboration diagram for Isis::AbstractTableModel:
Collaboration graph

Public Types

enum  Warning { None = 0 , SortingDisabled , SortingTableSizeLimitReached }


Public Slots

virtual void setGlobalSelection (bool selected)=0

virtual void applyFilter ()

virtual void sort ()

virtual void reverseOrder (TableColumn *)

virtual void updateSort ()

virtual void rebuildSort ()


Signals

void modelModified ()

void filterProgressChanged (int)

void rebuildProgressChanged (int)

void sortProgressChanged (int)

void filterProgressRangeChanged (int, int)

void rebuildProgressRangeChanged (int, int)

void sortProgressRangeChanged (int, int)

void filterCountsChanged (int visibleRows, int totalRows)

void treeSelectionChanged (QList< AbstractTreeItem * >)

void tableSelectionChanged (QList< AbstractTreeItem * >)

void userWarning (AbstractTableModel::Warning)


Public Member Functions

 AbstractTableModel (AbstractTreeModel *, AbstractTableDelegate *)

virtual ~AbstractTableModel ()

virtual QList< AbstractTreeItem * > getItems (int, int)=0

virtual QList< AbstractTreeItem * > getItems (AbstractTreeItem *, AbstractTreeItem *)=0

virtual QList< AbstractTreeItem * > getSelectedItems ()=0

virtual int getVisibleRowCount () const =0

virtual QString getWarningMessage (AbstractTreeItem const *, TableColumn const *, QString valueToSave) const =0

virtual int indexOfVisibleItem (AbstractTreeItem const *item) const =0

virtual bool isSorting () const

virtual bool isFiltering () const

virtual bool sortingIsEnabled () const

virtual void setSortingEnabled (bool)

virtual int sortLimit () const

virtual void setSortLimit (int)

virtual bool sortingOn () const

virtual TableColumnList * getColumns ()

virtual const AbstractTableDelegate * getDelegate () const


Protected Member Functions

virtual TableColumnList * createColumns ()=0

AbstractTreeModel * getDataModel ()

const AbstractTreeModel * getDataModel () const

virtual QList< AbstractTreeItem * > getSortedItems (int, int, AbstractTreeModel::InterestingItems)

virtual QList< AbstractTreeItem * > getSortedItems (AbstractTreeItem *, AbstractTreeItem *, AbstractTreeModel::InterestingItems)

void handleTreeSelectionChanged (QList< AbstractTreeItem * > newlySelectedItems, AbstractTreeItem::InternalPointerType)


Detailed Description

Translates the tree model into a table model.

This class acts as a proxy model for the abstract tree model by allowing the user to access data in a table-like fashion (by sorted row).

Author
????-??-?? Eric Hyer

Member Enumeration Documentation

◆ Warning

enum Isis::AbstractTableModel::Warning
Enumerator
None
SortingDisabled
SortingTableSizeLimitReached

Constructor & Destructor Documentation

◆ AbstractTableModel()

Isis::AbstractTableModel::AbstractTableModel ( AbstractTreeModel * model,
AbstractTableDelegate * someDelegate )

References filterCountsChanged(), filterProgressChanged(), filterProgressRangeChanged(), modelModified(), rebuildProgressChanged(), rebuildProgressRangeChanged(), rebuildSort(), and tableSelectionChanged().

Referenced by createColumns(), Isis::MeasureTableModel::MeasureTableModel(), and Isis::PointTableModel::PointTableModel().

◆ ~AbstractTableModel()

Isis::AbstractTableModel::~AbstractTableModel ( )
virtual

Member Function Documentation

◆ applyFilter

void Isis::AbstractTableModel::applyFilter ( )
virtualslot

References Isis::AbstractTreeModel::applyFilter(), and getDataModel().

◆ createColumns()

virtual TableColumnList * Isis::AbstractTableModel::createColumns ( )
protectedpure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

References AbstractTableModel().

Referenced by getColumns().

◆ filterCountsChanged

void Isis::AbstractTableModel::filterCountsChanged ( int visibleRows,
int totalRows )
signal

Referenced by AbstractTableModel(), Isis::MeasureTableModel::MeasureTableModel(), and Isis::PointTableModel::PointTableModel().

◆ filterProgressChanged

void Isis::AbstractTableModel::filterProgressChanged ( int )
signal

Referenced by AbstractTableModel().

◆ filterProgressRangeChanged

void Isis::AbstractTableModel::filterProgressRangeChanged ( int ,
int  )
signal

Referenced by AbstractTableModel().

◆ getColumns()

TableColumnList * Isis::AbstractTableModel::getColumns ( )
virtual

References createColumns(), and sort().

Referenced by Isis::PointTableModel::resetColumnHeaders(), and Isis::TableViewContent::TableViewContent().

◆ getDataModel() [1/2]

AbstractTreeModel * Isis::AbstractTableModel::getDataModel ( )
protected

Referenced by applyFilter(), Isis::MeasureTableModel::getSelectedItems(), Isis::PointTableModel::getSelectedItems(), getSortedItems(), getSortedItems(), Isis::MeasureTableModel::getVisibleRowCount(), Isis::PointTableModel::getVisibleRowCount(), Isis::MeasureTableModel::indexOfVisibleItem(), Isis::PointTableModel::indexOfVisibleItem(), Isis::MeasureTableModel::setGlobalSelection(), and Isis::PointTableModel::setGlobalSelection().

◆ getDataModel() [2/2]

const AbstractTreeModel * Isis::AbstractTableModel::getDataModel ( ) const
protected

◆ getDelegate()

const AbstractTableDelegate * Isis::AbstractTableModel::getDelegate ( ) const
virtual

◆ getItems() [1/2]

virtual QList< AbstractTreeItem * > Isis::AbstractTableModel::getItems ( AbstractTreeItem * ,
AbstractTreeItem *  )
pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

◆ getItems() [2/2]

virtual QList< AbstractTreeItem * > Isis::AbstractTableModel::getItems ( int ,
int  )
pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

Referenced by Isis::TableViewContent::keyPressEvent(), and rebuildSort().

◆ getSelectedItems()

virtual QList< AbstractTreeItem * > Isis::AbstractTableModel::getSelectedItems ( )
pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

◆ getSortedItems() [1/2]

QList< AbstractTreeItem * > Isis::AbstractTableModel::getSortedItems ( AbstractTreeItem * item1,
AbstractTreeItem * item2,
AbstractTreeModel::InterestingItems flags )
protectedvirtual

References _FILEINFO_, getDataModel(), Isis::AbstractTreeModel::getItems(), Isis::IException::Programmer, and sortingOn().

◆ getSortedItems() [2/2]

QList< AbstractTreeItem * > Isis::AbstractTableModel::getSortedItems ( int start,
int end,
AbstractTreeModel::InterestingItems flags )
protectedvirtual

References getDataModel(), Isis::AbstractTreeModel::getItems(), isFiltering(), and sortingOn().

Referenced by Isis::MeasureTableModel::getItems(), Isis::MeasureTableModel::getItems(), Isis::PointTableModel::getItems(), and Isis::PointTableModel::getItems().

◆ getVisibleRowCount()

virtual int Isis::AbstractTableModel::getVisibleRowCount ( ) const
pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

Referenced by Isis::TableViewContent::keyPressEvent(), Isis::CnetEditorSortConfigDialog::readSettings(), and sortingOn().

◆ getWarningMessage()

virtual QString Isis::AbstractTableModel::getWarningMessage ( AbstractTreeItem const * ,
TableColumn const * ,
QString valueToSave ) const
pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

◆ handleTreeSelectionChanged()

void Isis::AbstractTableModel::handleTreeSelectionChanged ( QList< AbstractTreeItem * > newlySelectedItems,
AbstractTreeItem::InternalPointerType pointerType )
protected

References Isis::AbstractTreeItem::getPointerType(), and treeSelectionChanged().

Referenced by Isis::MeasureTableModel::handleTreeSelectionChanged(), and Isis::PointTableModel::handleTreeSelectionChanged().

◆ indexOfVisibleItem()

virtual int Isis::AbstractTableModel::indexOfVisibleItem ( AbstractTreeItem const * item) const
pure virtual

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

Referenced by Isis::TableViewContent::keyPressEvent(), and Isis::TableViewContent::scrollTo().

◆ isFiltering()

bool Isis::AbstractTableModel::isFiltering ( ) const
virtual

Referenced by getSortedItems().

◆ isSorting()

bool Isis::AbstractTableModel::isSorting ( ) const
virtual

Referenced by sort().

◆ modelModified

void Isis::AbstractTableModel::modelModified ( )
signal

Referenced by AbstractTableModel(), rebuildSort(), and sort().

◆ rebuildProgressChanged

void Isis::AbstractTableModel::rebuildProgressChanged ( int )
signal

Referenced by AbstractTableModel().

◆ rebuildProgressRangeChanged

void Isis::AbstractTableModel::rebuildProgressRangeChanged ( int ,
int  )
signal

Referenced by AbstractTableModel().

◆ rebuildSort

void Isis::AbstractTableModel::rebuildSort ( )
virtualslot

References getItems(), modelModified(), None, sort(), SortingDisabled, sortingOn(), SortingTableSizeLimitReached, and userWarning().

Referenced by AbstractTableModel(), setSortingEnabled(), and setSortLimit().

◆ reverseOrder

void Isis::AbstractTableModel::reverseOrder ( TableColumn * column)
virtualslot

◆ setGlobalSelection

virtual void Isis::AbstractTableModel::setGlobalSelection ( bool selected)
pure virtualslot

Implemented in Isis::MeasureTableModel, and Isis::PointTableModel.

◆ setSortingEnabled()

void Isis::AbstractTableModel::setSortingEnabled ( bool enabled)
virtual

References rebuildSort().

◆ setSortLimit()

void Isis::AbstractTableModel::setSortLimit ( int limit)
virtual

References rebuildSort().

◆ sort

void Isis::AbstractTableModel::sort ( )
virtualslot

References isSorting(), modelModified(), and sortingOn().

Referenced by getColumns(), and rebuildSort().

◆ sortingIsEnabled()

bool Isis::AbstractTableModel::sortingIsEnabled ( ) const
virtual

Referenced by sortingOn().

◆ sortingOn()

bool Isis::AbstractTableModel::sortingOn ( ) const
virtual

References getVisibleRowCount(), sortingIsEnabled(), and sortLimit().

Referenced by getSortedItems(), getSortedItems(), rebuildSort(), and sort().

◆ sortLimit()

int Isis::AbstractTableModel::sortLimit ( ) const
virtual

Referenced by Isis::CnetEditorSortConfigDialog::readSettings(), and sortingOn().

◆ sortProgressChanged

void Isis::AbstractTableModel::sortProgressChanged ( int )
signal

◆ sortProgressRangeChanged

void Isis::AbstractTableModel::sortProgressRangeChanged ( int ,
int  )
signal

◆ tableSelectionChanged

void Isis::AbstractTableModel::tableSelectionChanged ( QList< AbstractTreeItem * > )
signal

Referenced by AbstractTableModel().

◆ treeSelectionChanged

void Isis::AbstractTableModel::treeSelectionChanged ( QList< AbstractTreeItem * > )
signal

Referenced by handleTreeSelectionChanged(), Isis::MeasureTableModel::MeasureTableModel(), and Isis::PointTableModel::PointTableModel().

◆ updateSort

void Isis::AbstractTableModel::updateSort ( )
virtualslot

◆ userWarning

void Isis::AbstractTableModel::userWarning ( AbstractTableModel::Warning )
signal

Referenced by rebuildSort().

The documentation for this class was generated from the following files:
