Isis::ControlPointEdit Class Reference

Point Editor Widget. More...

#include <ControlPointEdit.h>

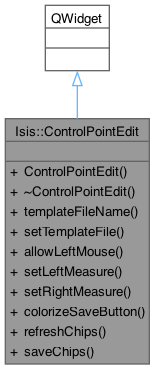

Inheritance diagram for Isis::ControlPointEdit:

Collaboration diagram for Isis::ControlPointEdit:

Public Slots
void	setLeftMeasure (ControlMeasure *leftMeasure, Cube *leftCube, QString pointId)
	Set the measure displayed in the left ChipViewport.
void	setRightMeasure (ControlMeasure *rightMeasure, Cube *rightCube, QString pointId)
	Set the measure displayed in the right ChipViewport.
void	colorizeSaveButton ()
	Turn "Save Measure" button text to red.
void	refreshChips ()
void	saveChips ()
	Slot to save registration chips to files and fire off qview.

Signals
void	updateLeftView (double sample, double line)
void	updateRightView (double sample, double line)
void	measureSaved ()
void	newControlNetwork (ControlNet *)
void	stretchChipViewport (Stretch *, CubeViewport *)

Public Member Functions
	ControlPointEdit (ControlNet *cnet, QWidget *parent=0, bool allowLeftMouse=false, bool useGeometry=true)
	Constructs a ControlPointEdit widget.
	~ControlPointEdit ()
QString	templateFileName ()
bool	setTemplateFile (QString)
	Allows user to choose a new template file by opening a window from which to select a filename.
void	allowLeftMouse (bool allowMouse)
	Set the option that allows mouse movements in the left ChipViewport.

Detailed Description

Point Editor Widget.

Author

2008-09-09 Tracie Sucharski

Constructor & Destructor Documentation

ControlPointEdit()

Isis::ControlPointEdit::ControlPointEdit	(	ControlNet *	cnet,
		QWidget *	parent = 0,
		bool	allowLeftMouse = false,
		bool	useGeometry = true )

Constructs a ControlPointEdit widget.

Parameters

parent	Input Parent of widget
allowLeftMouse	Input Allow/Disallow mouse events on Left ChipViewport

Author

Tracie Sucharski

References allowLeftMouse(), and newControlNetwork().

~ControlPointEdit()

Isis::ControlPointEdit::~ControlPointEdit

(

)

Member Function Documentation

allowLeftMouse()

void Isis::ControlPointEdit::allowLeftMouse

(

bool

allowMouse

)

Set the option that allows mouse movements in the left ChipViewport.

Author

Tracie Sucharski

Referenced by ControlPointEdit().

colorizeSaveButton

void Isis::ControlPointEdit::colorizeSaveButton ( )

slot

Turn "Save Measure" button text to red.

Author

2011-06-14 Tracie Sucharski

measureSaved

void Isis::ControlPointEdit::measureSaved ( )

signal

newControlNetwork

void Isis::ControlPointEdit::newControlNetwork ( ControlNet * )

signal

Referenced by ControlPointEdit().

refreshChips

void Isis::ControlPointEdit::refreshChips ( )

slot

saveChips

void Isis::ControlPointEdit::saveChips ( )

slot

Slot to save registration chips to files and fire off qview.

Author

2009-03-18 Tracie Sucharski

References Isis::ProgramLauncher::RunSystemCommand(), and Isis::toString().

setLeftMeasure

void Isis::ControlPointEdit::setLeftMeasure ( ControlMeasure * leftMeasure, Cube * leftCube, QString pointId )

slot

Set the measure displayed in the left ChipViewport.

Parameters

leftMeasure	Input Measure displayed in left ChipViewport
leftCube	Input Cube of measure displayed in left ChipViewport

Author

Tracie Sucharski

setRightMeasure

void Isis::ControlPointEdit::setRightMeasure ( ControlMeasure * rightMeasure, Cube * rightCube, QString pointId )

slot

Set the measure displayed in the right ChipViewport.

Parameters

rightMeasure	Input Measure displayed in right ChipViewport
rightCube	Input Cube of measure displayed in right ChipViewport

Author

Tracie Sucharski

References _FILEINFO_, Isis::IException::toString(), and Isis::IException::User.

setTemplateFile()

bool Isis::ControlPointEdit::setTemplateFile

(

QString

fn

)

Allows user to choose a new template file by opening a window from which to select a filename.

This file is then registered and set as the new template.

Author

Tracie Sucharski

References _FILEINFO_, Isis::AutoRegFactory::Create(), Isis::IException::Io, and Isis::IException::toString().

stretchChipViewport

void Isis::ControlPointEdit::stretchChipViewport ( Stretch * , CubeViewport *  )

signal

templateFileName()

QString Isis::ControlPointEdit::templateFileName ( )

inline

updateLeftView

void Isis::ControlPointEdit::updateLeftView ( double sample, double line )

signal

updateRightView

void Isis::ControlPointEdit::updateRightView ( double sample, double line )

signal

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/qisis/objs/ControlPointEdit/ControlPointEdit.h
• /Users/astamile/ISIS3/isis/src/qisis/objs/ControlPointEdit/ControlPointEdit.cpp
