Isis::StretchTool Class Reference

Stretch image edit tool. More...

#include <StretchTool.h>

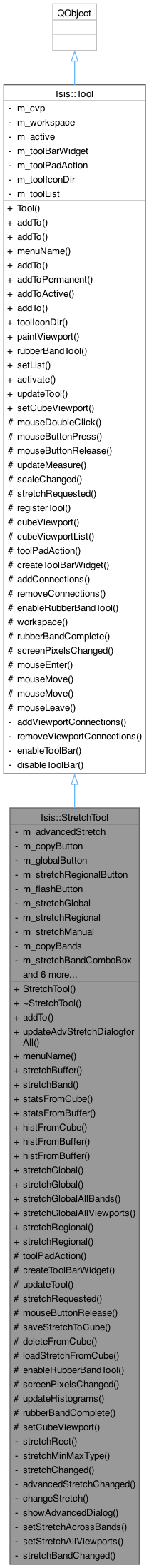

Inheritance diagram for Isis::StretchTool:

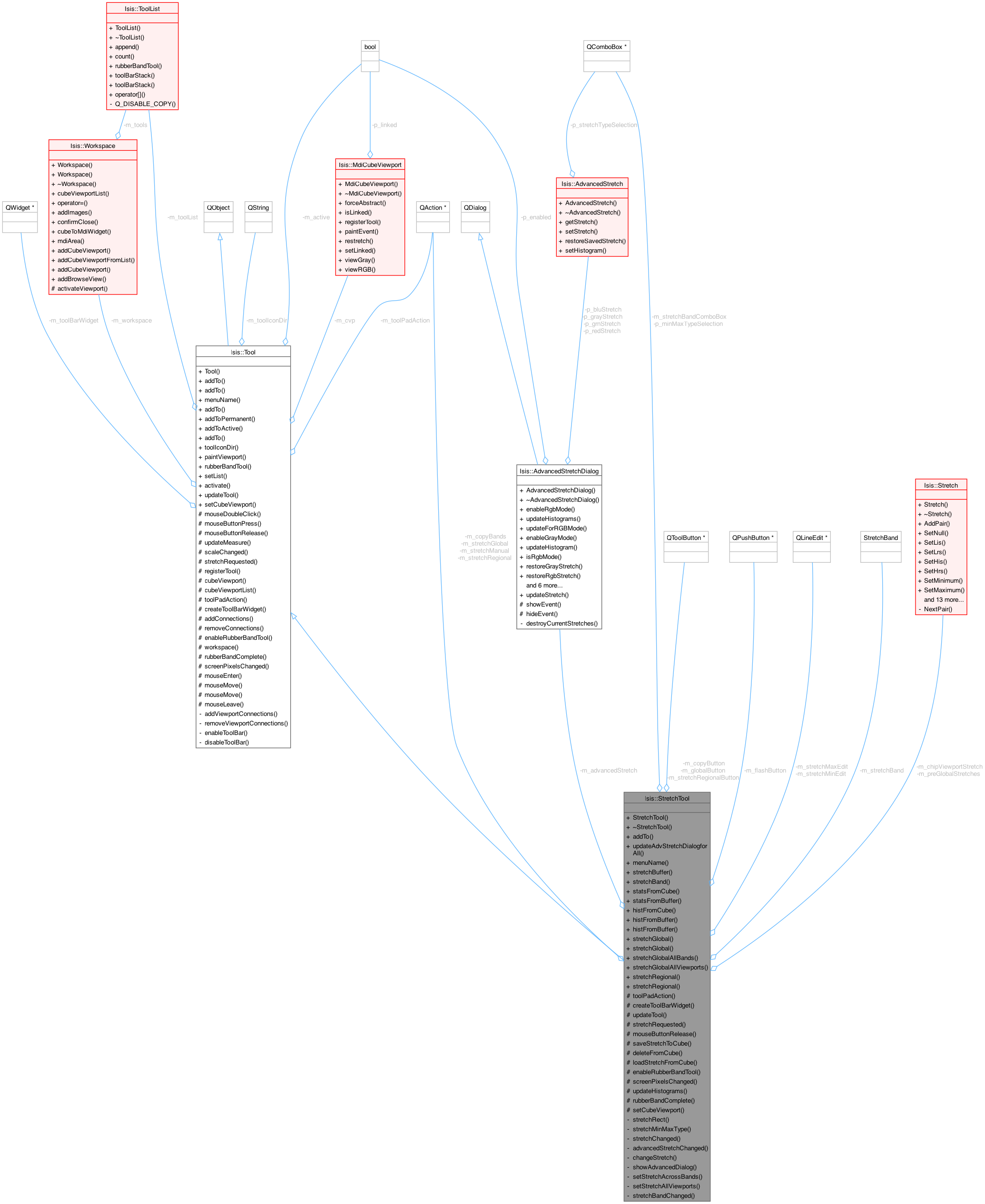

Collaboration diagram for Isis::StretchTool:

Public Types
enum	StretchBand {   Gray , Red , Green , Blue ,   All }
	Enum to store the bands. More...

Public Slots
void	stretchGlobal ()
	Does a global stretch for the active viewport.
void	stretchGlobal (CubeViewport *)
	Does a global stretch for the specified viewport.
void	stretchGlobalAllBands ()
	This resets the stretch across all bands.
void	stretchGlobalAllViewports ()
	Does a global stretch for all the viewports.
void	stretchRegional ()
	Does a regional stretch for the active viewport.
void	stretchRegional (CubeViewport *)
	Does a regional stretch for the specified viewport.
void	activate (bool)
	Activates the tool.
void	setCubeViewport (MdiCubeViewport *cvp)
	Sets the current viewport to the given cvp.

Signals
void	stretchChipViewport (Stretch *, CubeViewport *)
	when a viewport is stretched, send the stretch and the viewport associated with it to any ChipViewport's that might be listening
void	warningSignal (std::string &pStr, const std::string pExStr)
	Shows a warning.
void	clearWarningSignal ()
void	toolActivated ()
void	viewportChanged ()

Public Member Functions
	StretchTool (QWidget *parent)
	StretchTool constructor.
	~StretchTool ()
	Destructor.
void	addTo (QMenu *menu)
	Adds the stretch action to the given menu.
void	updateAdvStretchDialogforAll (void)
	Update the streches and corresponding histograms for all the colors Red, Green and Blue for Stretch All Mode.
QString	menuName () const
	This let's Tool know which Menu the actions this class has should be added to.
void	addTo (ViewportMainWindow *mw)
	Adds the tool to the application.
void	addTo (ToolPad *toolpad)
	Adds the tool to the toolpad.
virtual void	addTo (Workspace *ws)
	Adds the given workspace to the cubeviewport list.
virtual void	addToPermanent (QToolBar *toolbar)
void	addToActive (QToolBar *toolbar)
QString	toolIconDir () const
	returns the path to the icon directory.
virtual void	paintViewport (MdiCubeViewport *vp, QPainter *painter)
RubberBandTool *	rubberBandTool ()
void	setList (ToolList *currentList)

Static Public Member Functions
static Stretch	stretchBuffer (ViewportBuffer *buffer, QRect rect)
	This method computes the stretch over a region using the viewport buffer.
static Stretch	stretchBand (CubeViewport *cvp, StretchBand band)
	This method computes the stretch over the entire cube.
static Statistics	statsFromCube (Cube *cube, int band)
	This method will calculate and return the statistics for a given cube and band.
static Statistics	statsFromBuffer (ViewportBuffer *buffer, QRect rect)
	This method will calculate and return the statistics for a given region and viewport buffer.
static Histogram	histFromCube (Cube *cube, int band, double min, double max)
	This method will calculate and return the histogram for a given cube and band.
static Histogram	histFromBuffer (ViewportBuffer *buffer)
	Given a viewport buffer, this calculates a histogram.
static Histogram	histFromBuffer (ViewportBuffer *buffer, QRect rect, double min, double max)
	This method will calculate and return the histogram for a given region and viewport buffer.

Protected Types
typedef QVector< MdiCubeViewport * >	CubeViewportList
	A list of cubeviewports.

Protected Slots
void	mouseButtonRelease (QPoint p, Qt::MouseButton s)
	This method will call a global stretch if the right mouse button is released.
void	saveStretchToCube ()
	Saves a strech to the cube.
void	deleteFromCube ()
	Deletes a saved stretch from the cube.
void	loadStretchFromCube ()
	Restores a saved stretch from the cube.
void	enableRubberBandTool ()
	This method enables the RubberBandTool.
void	screenPixelsChanged ()
	This is called when the visible area changes.
void	updateHistograms ()
	This updates the visible histograms in the advanced stretch, if present.
void	rubberBandComplete ()
	This method is called when the RubberBandTool is complete.
void	setCubeViewport (CubeViewport *)
	This updates the advanced stretch to use the given viewport.
virtual void	mouseEnter ()
virtual void	mouseMove (QPoint p)
virtual void	mouseMove (QPoint p, Qt::MouseButton)
virtual void	mouseLeave ()

Protected Member Functions
QAction *	toolPadAction (ToolPad *pad)
	Adds the stretch action to the toolpad.
QWidget *	createToolBarWidget (QStackedWidget *parent)
	Creates the widget to add to the tool bar.
void	updateTool ()
	Updates the stretch tool.
void	stretchRequested (MdiCubeViewport *cvp, int bandId)
	The cube viewport requested a stretch at this time, give it to the viewport.
virtual void	mouseDoubleClick (QPoint p)
virtual void	mouseButtonPress (QPoint p, Qt::MouseButton s)
virtual void	updateMeasure ()
virtual void	scaleChanged ()
void	registerTool (MdiCubeViewport *viewport)
	Registers the tool to the viewport.
MdiCubeViewport *	cubeViewport () const
	Return the current cubeviewport.
CubeViewportList *	cubeViewportList () const
	Return the list of cubeviewports.
virtual void	addConnections (MdiCubeViewport *cvp)
	Anytime a tool is created, you must add the connections for it.
virtual void	removeConnections (MdiCubeViewport *cvp)
	Anytime a tool is created, you must be able to remove it's connections.
Workspace *	workspace ()

Private Slots
void	stretchChanged ()
	This method is called when the stretch has changed and sets the min/max text fields to the correct values.
void	advancedStretchChanged ()
	This is called when one of the advanced stretches changed.
void	changeStretch (bool useMinMaxTypeSelection=false)
	This method is called when the stretch has changed and sets the min/max text fields to the correct values.
void	showAdvancedDialog ()
	This methods shows and updates the advanced dialog.
void	setStretchAcrossBands ()
	Sets the stretch for all the bands in the active viewport to the current stretch.
void	setStretchAllViewports ()
	Sets the stretch for all the viewports to the current stretch in the active viewport.
void	stretchBandChanged (int)
	The selected band for stretching changed.

Private Member Functions
void	stretchRect (CubeViewport *cvp, QRect rect)
	stretch the specified CubeViewport with the given rect
void	stretchMinMaxType (CubeViewport *cvp)
	Sets stretch for current band in active viewport given the min/max type selection.
void	addViewportConnections ()
	Makes all the connections for the tool.
void	removeViewportConnections ()
	Removes all the connections from the tool.
void	enableToolBar ()
	Enables entire tool bar.
void	disableToolBar ()
	Disables entire tool bar.

Private Attributes
AdvancedStretchDialog *	m_advancedStretch
	The advanced dialog.
QToolButton *	m_copyButton
	Copy Button.
QToolButton *	m_globalButton
	Global Button.
QToolButton *	m_stretchRegionalButton
	Regional Stretch Button.
QPushButton *	m_flashButton
	Button to press for global stretch.
QAction *	m_stretchGlobal
	Global stretch action.
QAction *	m_stretchRegional
	Regional stretch action.
QAction *	m_stretchManual
	Manual stretch action.
QAction *	m_copyBands
	Copy band stretch action.
QComboBox *	m_stretchBandComboBox
	Stretch combo box.
QComboBox *	p_minMaxTypeSelection
	Min/Max type combo box.
QLineEdit *	m_stretchMinEdit
	Min. line edit.
QLineEdit *	m_stretchMaxEdit
	Max. line edit.
StretchBand	m_stretchBand
	Current stretch band.
Stretch *	m_preGlobalStretches
	Stretches before global button pressed.
Stretch *	m_chipViewportStretch
	ChipViewport's stretch.
MdiCubeViewport *	m_cvp
	current cubeviewport
Workspace *	m_workspace
bool	m_active
	Is the tool acitve?
QWidget *	m_toolBarWidget
	The tool bar on which this tool resides.
QAction *	m_toolPadAction
	The tool pad on which this tool resides.
QString	m_toolIconDir
	The pathway to the icon directory.
ToolList *	m_toolList

Detailed Description

Stretch image edit tool.

This tool is part of the Qisis namespace and allows interactive editing of displayed images.

Author

????-??-?? Unknown

History

2008-05-23 Noah Hilt - Added RubberBandTool

2010-03-18 Sharmila Prasad - Exception handling and emit warning signal to the Viewportwindow to display warning status on the status bar(Track Tool)

2010-04-08 Steven Lambright - Made to work with threaded viewportbuffer and also removed map to viewport stretches due to synchronization problems.

2010-04-08 Steven Lambright - Fixed access of viewport data for statistics

2010-05-20 Steven Lambright - Re-enabled the advanced stretch... without a viewport map!

2010-06-26 Eric Hyer

• Now uses MdiCubeViewport
• Fixed all include abuses

2010-08-30 Eric Hyer

• Added RGB support for stretchRegional
• stretchRegional and rubberBandComplete now use the new private method stretchRect in order to avoid duplicate code.

2010-11-22 Eric Hyer - new SIGNAL called stretchChipViewport exists for sending stretches made in CubeViewports to any ChipViewports that want to get stretched.

2010-12-01 Steven Lambright - Improved stretch copy abilities

2010-12-02 Eric Hyer - changed where stretchChipViewport is emitted.

2011-03-22 Sharmila Prasad - Add option to stretch All Bands

2011-11-04 Steven Lambright - Improved advanced stretch to allow all stretches to be changed despite combo box. References #567.

2012-01-18 Steven Lambright - Fixed a bug that caused the stretch pair line edits to not update properly in grey mode when the color mode band selection was set to all. Also, fixed layout of stretch options to correctly squeeze widgets left. Fixes #640.

2012-06-11 Steven Lambright - Fixed a bug that caused the stretch pair line edits to not update properly when switching between viewports, and another that caused the stretch to be copied the new viewport if the advanced stretch dialog is active. Fixes #771.

2015-08-07 Makayla Shepherd - No longer crashes when the user attempts to apply a stretch while the cube is still loading. This crash was caused by an unhandled exception being thrown in a connected slot. Fixes #2117.

Definition at line 85 of file StretchTool.h.

Member Typedef Documentation

CubeViewportList

typedef QVector< MdiCubeViewport * > Isis::Tool::CubeViewportList

protectedinherited

A list of cubeviewports.

Definition at line 205 of file Tool.h.

Member Enumeration Documentation

StretchBand

enum Isis::StretchTool::StretchBand

Enum to store the bands.

Enumerator
Gray	Gray Band.
Red	Red Band.
Green	Green Band.
Blue	Blue Band.
All	All Bands.

Definition at line 96 of file StretchTool.h.

Constructor & Destructor Documentation

StretchTool()

Isis::StretchTool::StretchTool

(

QWidget *

parent

)

StretchTool constructor.

Parameters

parent

Definition at line 48 of file StretchTool.cpp.

References advancedStretchChanged(), deleteFromCube(), loadStretchFromCube(), m_advancedStretch, m_chipViewportStretch, m_preGlobalStretches, m_stretchGlobal, m_stretchRegional, saveStretchToCube(), stretchChanged(), stretchGlobal(), stretchRegional(), Isis::Tool::Tool(), updateTool(), and warningSignal().

~StretchTool()

Isis::StretchTool::~StretchTool

(

)

Destructor.

Definition at line 94 of file StretchTool.cpp.

References m_chipViewportStretch, and m_preGlobalStretches.

Member Function Documentation

activate

void Isis::Tool::activate ( bool on )

slotinherited

Activates the tool.

Parameters

on

Definition at line 131 of file Tool.cpp.

References addViewportConnections(), disableToolBar(), enableToolBar(), m_active, m_toolPadAction, and removeViewportConnections().

Referenced by addTo(), Isis::AdvancedTrackTool::AdvancedTrackTool(), Isis::RubberBandTool::disable(), Isis::RubberBandTool::enable(), Isis::AdvancedTrackTool::eventFilter(), Isis::FileTool::FileTool(), Isis::RubberBandTool::RubberBandTool(), Isis::TrackTool::TrackTool(), Isis::WindowTool::WindowTool(), and Isis::Workspace::Workspace().

addConnections()

virtual void Isis::Tool::addConnections ( MdiCubeViewport * cvp )

inlineprotectedvirtualinherited

Anytime a tool is created, you must add the connections for it.

Parameters

cvp

Reimplemented in Isis::TrackTool, and Isis::WindowTool.

Definition at line 239 of file Tool.h.

Referenced by addViewportConnections().

addTo() [1/4]

void Isis::StretchTool::addTo ( QMenu * menu )

virtual

Adds the stretch action to the given menu.

Parameters

menu

Reimplemented from Isis::Tool.

Definition at line 131 of file StretchTool.cpp.

References m_stretchGlobal, and m_stretchRegional.

addTo() [2/4]

void Isis::Tool::addTo ( ToolPad * toolpad )

inherited

Adds the tool to the toolpad.

Parameters

toolpad

Definition at line 98 of file Tool.cpp.

References activate(), Isis::ToolPad::addAction(), m_toolPadAction, and toolPadAction().

addTo() [3/4]

void Isis::Tool::addTo ( ViewportMainWindow * pViewPortMnWin )

inherited

Adds the tool to the application.

Parameters

pViewPortMnWin

Definition at line 78 of file Tool.cpp.

References Isis::ViewportMainWindow::activeToolBar(), addTo(), addToActive(), addToPermanent(), Isis::ViewportMainWindow::getMenu(), menuName(), Isis::ViewportMainWindow::permanentToolBar(), Isis::ViewportMainWindow::toolPad(), and Isis::ViewportMainWindow::workspace().

Referenced by Isis::EditTool::addTo(), Isis::FileTool::addTo(), Isis::SpecialPixelTool::addTo(), addTo(), Isis::WindowTool::addTo(), and Isis::Workspace::Workspace().

addTo() [4/4]

void Isis::Tool::addTo ( Workspace * ws )

virtualinherited

Adds the given workspace to the cubeviewport list.

Parameters

ws

Reimplemented in Isis::EditTool, Isis::FileTool, Isis::SpecialPixelTool, and Isis::WindowTool.

Definition at line 45 of file Tool.cpp.

References registerTool(), and setCubeViewport().

addToActive()

void Isis::Tool::addToActive ( QToolBar * toolbar )

inherited

Parameters

toolbar

Definition at line 112 of file Tool.cpp.

References createToolBarWidget(), disableToolBar(), and m_toolBarWidget.

Referenced by addTo(), and Isis::Workspace::Workspace().

addToPermanent()

virtual void Isis::Tool::addToPermanent ( QToolBar * toolbar )

inlinevirtualinherited

Parameters

toolbar

Reimplemented in Isis::AdvancedTrackTool, Isis::BlinkTool, Isis::FileTool, Isis::HelpTool, Isis::SpecialPixelTool, and Isis::WindowTool.

Definition at line 97 of file Tool.h.

Referenced by addTo(), and Isis::Workspace::Workspace().

addViewportConnections()

void Isis::Tool::addViewportConnections ( )

privateinherited

Makes all the connections for the tool.

Definition at line 187 of file Tool.cpp.

References addConnections(), enableRubberBandTool(), m_cvp, m_toolPadAction, mouseButtonPress(), mouseButtonRelease(), mouseDoubleClick(), mouseMove(), and screenPixelsChanged().

Referenced by activate(), and setCubeViewport().

advancedStretchChanged

void Isis::StretchTool::advancedStretchChanged ( )

privateslot

This is called when one of the advanced stretches changed.

Give the stretch to the viewport.

Definition at line 1021 of file StretchTool.cpp.

References Isis::CubeViewport::blueStretch(), Isis::Stretch::ClearPairs(), Isis::Stretch::CopyPairs(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayStretch(), Isis::CubeViewport::greenStretch(), m_advancedStretch, m_chipViewportStretch, Isis::CubeViewport::redStretch(), Isis::CubeViewport::stretchBlue(), stretchChanged(), stretchChipViewport(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), and Isis::CubeViewport::stretchRed().

Referenced by StretchTool().

changeStretch

void Isis::StretchTool::changeStretch ( bool useMinMaxTypeSelection = false )

privateslot

This method is called when the stretch has changed and sets the min/max text fields to the correct values.

Does not effect All as the min/max lineedits are hidden for this option

Definition at line 1061 of file StretchTool.cpp.

References Isis::Stretch::AddPair(), Blue, Isis::CubeViewport::blueStretch(), Isis::Stretch::ClearPairs(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayStretch(), Green, Isis::CubeViewport::greenStretch(), Isis::CubeViewport::isGray(), m_chipViewportStretch, m_stretchBand, m_stretchMaxEdit, m_stretchMinEdit, Red, Isis::CubeViewport::redStretch(), Isis::CubeViewport::stretchBlue(), stretchChanged(), stretchChipViewport(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), stretchMinMaxType(), Isis::CubeViewport::stretchRed(), and updateTool().

Referenced by createToolBarWidget().

createToolBarWidget()

QWidget * Isis::StretchTool::createToolBarWidget ( QStackedWidget * parent )

protectedvirtual

Creates the widget to add to the tool bar.

Parameters

parent

Returns

QWidget*

Reimplemented from Isis::Tool.

Definition at line 145 of file StretchTool.cpp.

References All, Blue, changeStretch(), deleteFromCube(), Green, loadStretchFromCube(), m_copyBands, m_copyButton, m_flashButton, m_globalButton, m_stretchBand, m_stretchBandComboBox, m_stretchMaxEdit, m_stretchMinEdit, m_stretchRegionalButton, p_minMaxTypeSelection, Red, saveStretchToCube(), setStretchAcrossBands(), setStretchAllViewports(), showAdvancedDialog(), stretchBandChanged(), stretchChanged(), stretchGlobal(), stretchGlobalAllBands(), stretchGlobalAllViewports(), stretchRegional(), and Isis::Tool::toolIconDir().

cubeViewport()

MdiCubeViewport * Isis::Tool::cubeViewport ( ) const

inlineprotectedinherited

Return the current cubeviewport.

Returns

CubeViewport*

Definition at line 197 of file Tool.h.

References m_cvp.

Referenced by Isis::TrackTool::addConnections(), Isis::WindowTool::addConnections(), Isis::StretchTool::advancedStretchChanged(), Isis::FindTool::centerLinkedViewports(), Isis::StretchTool::changeStretch(), Isis::BandTool::changeView(), Isis::BandTool::copyLinkedViewports(), Isis::StretchTool::deleteFromCube(), Isis::FileTool::discard(), enableToolBar(), Isis::FileTool::exportToList(), Isis::FileTool::exportView(), Isis::StatisticsTool::getStatistics(), Isis::FindTool::handleRecordClicked(), Isis::EditTool::LineToPoints(), Isis::StretchTool::loadStretchFromCube(), Isis::TrackTool::locateCursor(), Isis::SunShadowTool::mouseButtonPress(), Isis::ControlNetTool::mouseButtonRelease(), Isis::EditTool::mouseButtonRelease(), Isis::FeatureNomenclatureTool::mouseButtonRelease(), Isis::FindTool::mouseButtonRelease(), Isis::MatchTool::mouseButtonRelease(), Isis::QnetTool::mouseButtonRelease(), Isis::RubberBandTool::mouseButtonRelease(), Isis::StretchTool::mouseButtonRelease(), Isis::AdvancedTrackTool::mouseLeave(), Isis::RubberBandTool::mouseMove(), Isis::ScatterPlotTool::mouseMove(), Isis::SunShadowTool::mouseMove(), Isis::TrackTool::mouseMove(), Isis::FindTool::paintViewport(), Isis::LatLonGridTool::paintViewport(), Isis::RubberBandTool::paintViewport(), Isis::SunShadowTool::paintViewport(), Isis::FileTool::print(), Isis::SunShadowTool::recalculateShadowHeight(), Isis::EditTool::redoEdit(), Isis::FindTool::refresh(), Isis::HistogramTool::refreshPlot(), Isis::SpatialPlotTool::refreshPlot(), Isis::SpectralPlotTool::refreshPlot(), Isis::TrackTool::removeConnections(), Isis::WindowTool::removeConnections(), Isis::RubberBandTool::repaint(), Isis::WindowTool::resizeWindows(), Isis::EditTool::rubberBandComplete(), Isis::HistogramTool::rubberBandComplete(), Isis::MeasureTool::rubberBandComplete(), Isis::StretchTool::rubberBandComplete(), Isis::ZoomTool::rubberBandComplete(), Isis::FileTool::save(), Isis::FileTool::saveAs(), Isis::FileTool::saveAsCubeByOption(), Isis::FileTool::saveAsReducedCube(), Isis::FileTool::saveInfo(), Isis::StretchTool::saveStretchToCube(), Isis::BandTool::setBandBin(), Isis::BandTool::setList(), Isis::StretchTool::setStretchAcrossBands(), Isis::StretchTool::setStretchAllViewports(), Isis::StretchTool::showAdvancedDialog(), Isis::ScatterPlotTool::showNewScatterPlotConfig(), Isis::StretchTool::stretchChanged(), Isis::StretchTool::stretchGlobal(), Isis::StretchTool::stretchGlobalAllBands(), Isis::StretchTool::stretchRegional(), Isis::EditTool::undoEdit(), Isis::StretchTool::updateAdvStretchDialogforAll(), Isis::StretchTool::updateHistograms(), Isis::TrackTool::updateLabels(), Isis::MeasureTool::updateMeasure(), Isis::AdvancedTrackTool::updateRow(), Isis::AdvancedTrackTool::updateRow(), Isis::AbstractPlotTool::updateTool(), Isis::BandTool::updateTool(), Isis::BlinkTool::updateTool(), Isis::EditTool::updateTool(), Isis::FileTool::updateTool(), Isis::FindTool::updateTool(), Isis::LatLonGridTool::updateTool(), Isis::SpecialPixelTool::updateTool(), Isis::StretchTool::updateTool(), Isis::SunShadowTool::updateTool(), Isis::WindowTool::updateTool(), Isis::ZoomTool::updateTool(), Isis::AbstractPlotTool::viewportsToPlot(), Isis::EditTool::writeToCube(), Isis::ZoomTool::zoomBy(), Isis::ZoomTool::zoomFit(), Isis::ZoomTool::zoomFitHeight(), Isis::ZoomTool::zoomFitWidth(), and Isis::ZoomTool::zoomManual().

cubeViewportList()

Tool::CubeViewportList * Isis::Tool::cubeViewportList ( ) const

protectedinherited

Return the list of cubeviewports.

Returns

CubeViewportList*

Definition at line 390 of file Tool.cpp.

Referenced by Isis::BlinkTool::advance(), Isis::SpecialPixelTool::apply(), Isis::FindTool::centerLinkedViewports(), Isis::WindowTool::changeCursor(), Isis::FileTool::closeAll(), Isis::BandTool::copyAllViewports(), Isis::BandTool::copyLinkedViewports(), Isis::MatchTool::createPoint(), Isis::BlinkTool::eventFilter(), Isis::FeatureNomenclatureTool::featuresIdentified(), Isis::FeatureNomenclatureTool::findMissingNomenclature(), Isis::FeatureNomenclatureTool::findNomenclatureStateChanged(), Isis::FindTool::handleLinkClicked(), Isis::WindowTool::linkWindows(), Isis::RubberBandTool::mouseButtonRelease(), Isis::RubberBandTool::mouseMove(), Isis::QnetTool::openGround(), Isis::ControlNetTool::paintAllViewports(), Isis::MatchTool::paintAllViewports(), Isis::QnetTool::paintAllViewports(), Isis::StereoTool::paintAllViewports(), Isis::FindTool::refresh(), Isis::AbstractPlotTool::repaintViewports(), Isis::AbstractPlotTool::repaintViewports(), Isis::ScatterPlotTool::repaintViewports(), Isis::WindowTool::resizeWindows(), Isis::BlinkTool::reverse(), Isis::ZoomTool::rubberBandComplete(), Isis::MatchTool::serialNumberList(), Isis::ControlNetTool::setControlNet(), Isis::FeatureNomenclatureTool::setFontColor(), Isis::FeatureNomenclatureTool::setFontSize(), Isis::FeatureNomenclatureTool::setShowApprovedOnly(), Isis::StretchTool::setStretchAllViewports(), Isis::FeatureNomenclatureTool::setVectorType(), Isis::StretchTool::stretchGlobalAllViewports(), Isis::BlinkTool::toggleLink(), Isis::WindowTool::unlinkWindows(), Isis::MeasureTool::updateMeasure(), Isis::AdvancedTrackTool::updateRow(), Isis::BlinkTool::updateTool(), Isis::FindTool::updateTool(), Isis::WindowTool::updateTool(), Isis::AbstractPlotTool::viewportsToPlot(), Isis::ZoomTool::zoomBy(), Isis::ZoomTool::zoomFit(), Isis::ZoomTool::zoomFitHeight(), Isis::ZoomTool::zoomFitWidth(), and Isis::ZoomTool::zoomManual().

deleteFromCube

void Isis::StretchTool::deleteFromCube ( )

protectedslot

Deletes a saved stretch from the cube.

Definition at line 554 of file StretchTool.cpp.

References Isis::PvlObject::beginObject(), Isis::CubeViewport::cube(), Isis::Tool::cubeViewport(), Isis::Cube::deleteBlob(), Isis::CubeViewport::grayBand(), Isis::Cube::isReadOnly(), Isis::Cube::label(), and Isis::Cube::reopen().

Referenced by createToolBarWidget(), and StretchTool().

disableToolBar()

void Isis::Tool::disableToolBar ( )

privateinherited

Disables entire tool bar.

Definition at line 285 of file Tool.cpp.

References m_toolBarWidget.

Referenced by activate(), and addToActive().

enableRubberBandTool

void Isis::StretchTool::enableRubberBandTool ( )

protectedslot

This method enables the RubberBandTool.

Definition at line 1366 of file StretchTool.cpp.

Referenced by mouseButtonRelease().

enableToolBar()

void Isis::Tool::enableToolBar ( )

privateinherited

Enables entire tool bar.

Definition at line 297 of file Tool.cpp.

References cubeViewport(), m_toolBarWidget, and updateTool().

Referenced by activate(), and setCubeViewport().

histFromBuffer() [1/2]

Histogram Isis::StretchTool::histFromBuffer ( ViewportBuffer * buffer )

static

Given a viewport buffer, this calculates a histogram.

Parameters

buffer

Returns

Histogram

Definition at line 1625 of file StretchTool.cpp.

References Isis::Statistics::BestMaximum(), Isis::Statistics::BestMinimum(), Isis::ViewportBuffer::bufferXYRect(), histFromBuffer(), and statsFromBuffer().

Referenced by histFromBuffer(), setCubeViewport(), stretchBuffer(), updateAdvStretchDialogforAll(), and updateHistograms().

histFromBuffer() [2/2]

Histogram Isis::StretchTool::histFromBuffer ( ViewportBuffer * buffer, QRect rect, double min, double max )

static

This method will calculate and return the histogram for a given region and viewport buffer.

Parameters

buffer
rect
min
max

Returns

Histogram

Definition at line 1644 of file StretchTool.cpp.

References Isis::Histogram::AddData(), Isis::ViewportBuffer::bufferXYRect(), Isis::ViewportBuffer::getLine(), and Isis::IException::Unknown.

histFromCube()

Histogram Isis::StretchTool::histFromCube ( Cube * cube, int band, double min, double max )

static

This method will calculate and return the histogram for a given cube and band.

Parameters

cube
band
min
max

Returns

Histogram

Definition at line 1603 of file StretchTool.cpp.

References Isis::Histogram::AddData(), Isis::Buffer::DoubleBuffer(), Isis::Cube::lineCount(), Isis::Cube::pixelType(), Isis::Cube::read(), Isis::Cube::sampleCount(), and Isis::Brick::SetBasePosition().

Referenced by stretchBand(), and stretchMinMaxType().

loadStretchFromCube

void Isis::StretchTool::loadStretchFromCube ( )

protectedslot

Restores a saved stretch from the cube.

Definition at line 434 of file StretchTool.cpp.

References Isis::PvlObject::beginObject(), Isis::CubeViewport::blueBand(), Isis::CubeViewport::blueStretch(), Isis::Stretch::CopyPairs(), Isis::CubeViewport::cube(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayBand(), Isis::CubeViewport::grayStretch(), Isis::CubeViewport::greenBand(), Isis::CubeViewport::greenStretch(), Isis::CubeViewport::isGray(), Isis::Cube::label(), m_advancedStretch, Isis::Cube::readCubeStretch(), Isis::CubeViewport::redBand(), Isis::CubeViewport::redStretch(), Isis::CubeViewport::stretchBlue(), stretchChanged(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), and Isis::CubeViewport::stretchRed().

Referenced by createToolBarWidget(), and StretchTool().

menuName()

QString Isis::StretchTool::menuName ( ) const

inlinevirtual

This let's Tool know which Menu the actions this class has should be added to.

Removal of this results in "Ctrl+R" and "Ctrl+G" not working.

Returns

Name of the Menu

Reimplemented from Isis::Tool.

Definition at line 123 of file StretchTool.h.

mouseButtonPress()

void Isis::Tool::mouseButtonPress ( QPoint p, Qt::MouseButton s )

protectedvirtualinherited

Parameters

p
s

Definition at line 367 of file Tool.cpp.

Referenced by addViewportConnections(), and removeViewportConnections().

mouseButtonRelease

void Isis::StretchTool::mouseButtonRelease ( QPoint start, Qt::MouseButton s )

protectedslot

This method will call a global stretch if the right mouse button is released.

Parameters

start
s

Definition at line 1342 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), enableRubberBandTool(), Isis::Tool::mouseButtonRelease(), stretchChipViewport(), and stretchGlobal().

mouseDoubleClick()

void Isis::Tool::mouseDoubleClick ( QPoint p )

protectedvirtualinherited

Parameters

p

Definition at line 358 of file Tool.cpp.

Referenced by addViewportConnections(), and removeViewportConnections().

mouseEnter

virtual void Isis::Tool::mouseEnter ( )

inlineprotectedvirtualslotinherited

Definition at line 152 of file Tool.h.

mouseLeave

virtual void Isis::Tool::mouseLeave ( )

inlineprotectedvirtualslotinherited

Definition at line 159 of file Tool.h.

mouseMove [1/2]

void Isis::Tool::mouseMove ( QPoint p )

protectedvirtualslotinherited

Parameters

p

Definition at line 352 of file Tool.cpp.

Referenced by addViewportConnections(), and removeViewportConnections().

mouseMove [2/2]

virtual void Isis::Tool::mouseMove ( QPoint p, Qt::MouseButton  )

inlineprotectedvirtualslotinherited

Definition at line 155 of file Tool.h.

paintViewport()

virtual void Isis::Tool::paintViewport ( MdiCubeViewport * vp, QPainter * painter )

inlinevirtualinherited

Parameters

vp
painter

Reimplemented in Isis::AbstractPlotTool, Isis::ControlNetTool, Isis::FeatureNomenclatureTool, Isis::FindTool, Isis::LatLonGridTool, Isis::MatchTool, Isis::QnetTool, Isis::RubberBandTool, Isis::ScatterPlotTool, Isis::StereoTool, and Isis::SunShadowTool.

Definition at line 122 of file Tool.h.

registerTool()

void Isis::Tool::registerTool ( MdiCubeViewport * viewport )

protectedinherited

Registers the tool to the viewport.

Parameters

viewport

Definition at line 327 of file Tool.cpp.

References m_cvp, and Isis::MdiCubeViewport::registerTool().

Referenced by addTo().

removeConnections()

virtual void Isis::Tool::removeConnections ( MdiCubeViewport * cvp )

inlineprotectedvirtualinherited

Anytime a tool is created, you must be able to remove it's connections.

Parameters

cvp

Reimplemented in Isis::MeasureTool, Isis::TrackTool, and Isis::WindowTool.

Definition at line 247 of file Tool.h.

Referenced by removeViewportConnections().

removeViewportConnections()

void Isis::Tool::removeViewportConnections ( )

privateinherited

Removes all the connections from the tool.

Definition at line 238 of file Tool.cpp.

References m_cvp, mouseButtonPress(), mouseButtonRelease(), mouseDoubleClick(), mouseMove(), removeConnections(), and screenPixelsChanged().

Referenced by activate(), and setCubeViewport().

rubberBandComplete

void Isis::StretchTool::rubberBandComplete ( )

protectedslot

This method is called when the RubberBandTool is complete.

It will get a rectangle from the RubberBandTool and stretch accordingly.

Definition at line 1273 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), and stretchRect().

rubberBandTool()

RubberBandTool * Isis::Tool::rubberBandTool ( )

inherited

Definition at line 57 of file Tool.cpp.

saveStretchToCube

void Isis::StretchTool::saveStretchToCube ( )

protectedslot

Saves a strech to the cube.

Definition at line 620 of file StretchTool.cpp.

References Isis::PvlObject::beginObject(), Isis::CubeViewport::blueBand(), Isis::CubeViewport::blueStretch(), Isis::CubeViewport::cube(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayBand(), Isis::CubeViewport::grayStretch(), Isis::CubeViewport::greenBand(), Isis::CubeViewport::greenStretch(), Isis::CubeViewport::isGray(), Isis::Cube::isReadOnly(), Isis::Cube::label(), m_advancedStretch, Isis::CubeViewport::redBand(), Isis::CubeViewport::redStretch(), Isis::Cube::reopen(), Isis::CubeStretch::setBandNumber(), Isis::CubeStretch::setName(), Isis::CubeStretch::toBlob(), and Isis::Cube::write().

Referenced by createToolBarWidget(), and StretchTool().

scaleChanged()

virtual void Isis::Tool::scaleChanged ( )

inlineprotectedvirtualinherited

Definition at line 172 of file Tool.h.

screenPixelsChanged

void Isis::StretchTool::screenPixelsChanged ( )

protectedslot

This is called when the visible area changes.

Definition at line 774 of file StretchTool.cpp.

References updateHistograms().

Referenced by stretchRequested().

setCubeViewport [1/2]

void Isis::StretchTool::setCubeViewport ( CubeViewport * cvp )

protectedslot

This updates the advanced stretch to use the given viewport.

Parameters

cvp

Definition at line 784 of file StretchTool.cpp.

References Isis::CubeViewport::blueBuffer(), Isis::CubeViewport::blueStretch(), Isis::CubeViewport::grayBuffer(), Isis::CubeViewport::grayStretch(), Isis::CubeViewport::greenBuffer(), Isis::CubeViewport::greenStretch(), histFromBuffer(), Isis::CubeViewport::isGray(), m_advancedStretch, Isis::CubeViewport::redBuffer(), Isis::CubeViewport::redStretch(), and Isis::ViewportBuffer::working().

Referenced by updateTool().

setCubeViewport [2/2]

void Isis::Tool::setCubeViewport ( MdiCubeViewport * cvp )

slotinherited

Sets the current viewport to the given cvp.

Parameters

cvp

Definition at line 160 of file Tool.cpp.

References addViewportConnections(), enableToolBar(), m_active, m_cvp, removeViewportConnections(), and updateTool().

Referenced by addTo(), and Isis::FileTool::closeAll().

setList()

void Isis::Tool::setList ( ToolList * currentList )

inherited

Definition at line 68 of file Tool.cpp.

setStretchAcrossBands

void Isis::StretchTool::setStretchAcrossBands ( )

privateslot

Sets the stretch for all the bands in the active viewport to the current stretch.

Definition at line 1377 of file StretchTool.cpp.

References Isis::Stretch::AddPair(), Blue, Isis::CubeViewport::blueStretch(), Isis::Stretch::ClearPairs(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayStretch(), Green, Isis::CubeViewport::greenStretch(), Isis::CubeViewport::isGray(), m_stretchBand, m_stretchMaxEdit, m_stretchMinEdit, Red, Isis::CubeViewport::redStretch(), Isis::CubeViewport::setAllBandStretches(), Isis::CubeViewport::stretchBlue(), Isis::CubeViewport::stretchGreen(), and Isis::CubeViewport::stretchRed().

Referenced by createToolBarWidget().

setStretchAllViewports

void Isis::StretchTool::setStretchAllViewports ( )

privateslot

Sets the stretch for all the viewports to the current stretch in the active viewport.

Definition at line 1428 of file StretchTool.cpp.

References Isis::CubeViewport::blueStretch(), Isis::Stretch::CopyPairs(), Isis::Tool::cubeViewport(), Isis::Tool::cubeViewportList(), Isis::CubeViewport::grayStretch(), Isis::CubeViewport::greenStretch(), Isis::CubeViewport::isGray(), Isis::CubeViewport::redStretch(), Isis::CubeViewport::stretchBlue(), stretchChanged(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), and Isis::CubeViewport::stretchRed().

Referenced by createToolBarWidget().

showAdvancedDialog

void Isis::StretchTool::showAdvancedDialog ( )

privateslot

This methods shows and updates the advanced dialog.

Definition at line 1180 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), m_advancedStretch, and updateTool().

Referenced by createToolBarWidget().

statsFromBuffer()

Statistics Isis::StretchTool::statsFromBuffer ( ViewportBuffer * buffer, QRect rect )

static

This method will calculate and return the statistics for a given region and viewport buffer.

Parameters

buffer
rect

Returns

Statistics

Definition at line 1568 of file StretchTool.cpp.

References Isis::Statistics::AddData(), Isis::ViewportBuffer::bufferXYRect(), Isis::ViewportBuffer::getLine(), Isis::IException::User, and Isis::ViewportBuffer::working().

Referenced by histFromBuffer(), and stretchBuffer().

statsFromCube()

Statistics Isis::StretchTool::statsFromCube ( Cube * cube, int band )

static

This method will calculate and return the statistics for a given cube and band.

Parameters

cube
band

Returns

Statistics

Definition at line 1545 of file StretchTool.cpp.

References Isis::Statistics::AddData(), Isis::Buffer::DoubleBuffer(), Isis::Cube::lineCount(), Isis::Cube::pixelType(), Isis::Cube::read(), Isis::Cube::sampleCount(), and Isis::Brick::SetBasePosition().

Referenced by stretchBand(), and stretchMinMaxType().

stretchBand()

Stretch Isis::StretchTool::stretchBand ( CubeViewport * cvp, StretchBand band )

static

This method computes the stretch over the entire cube.

Parameters

cvp
band	Band to stretch

Definition at line 1502 of file StretchTool.cpp.

References Isis::Stretch::AddPair(), Isis::Statistics::BestMaximum(), Isis::Statistics::BestMinimum(), Blue, Isis::CubeViewport::blueBand(), Isis::CubeViewport::blueStretch(), Isis::Stretch::ClearPairs(), Isis::CubeViewport::cube(), Isis::CubeViewport::grayBand(), Isis::CubeViewport::grayStretch(), Green, Isis::CubeViewport::greenBand(), Isis::CubeViewport::greenStretch(), histFromCube(), Isis::Histogram::Percent(), Red, Isis::CubeViewport::redBand(), Isis::CubeViewport::redStretch(), and statsFromCube().

Referenced by Isis::IndependentCubeViewport::restretch(), and stretchRequested().

stretchBandChanged

void Isis::StretchTool::stretchBandChanged ( int )

privateslot

The selected band for stretching changed.

Definition at line 1677 of file StretchTool.cpp.

References All, m_stretchBand, m_stretchBandComboBox, m_stretchMaxEdit, m_stretchMinEdit, and stretchChanged().

Referenced by createToolBarWidget(), and updateTool().

stretchBuffer()

Stretch Isis::StretchTool::stretchBuffer ( ViewportBuffer * buffer, QRect rect )

static

This method computes the stretch over a region using the viewport buffer.

Parameters

buffer
rect

Definition at line 1472 of file StretchTool.cpp.

References Isis::Stretch::AddPair(), Isis::Statistics::BestMaximum(), Isis::Statistics::BestMinimum(), histFromBuffer(), Isis::Statistics::Maximum(), Isis::Statistics::Minimum(), Isis::Stretch::Pairs(), Isis::Histogram::Percent(), statsFromBuffer(), and Isis::Statistics::ValidPixels().

Referenced by stretchRect(), and stretchRequested().

stretchChanged

void Isis::StretchTool::stretchChanged ( )

privateslot

This method is called when the stretch has changed and sets the min/max text fields to the correct values.

Definition at line 937 of file StretchTool.cpp.

References All, Blue, Isis::CubeViewport::blueStretch(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayStretch(), Green, Isis::CubeViewport::greenStretch(), Isis::Stretch::Input(), Isis::CubeViewport::isGray(), m_advancedStretch, m_flashButton, m_preGlobalStretches, m_stretchBand, m_stretchMaxEdit, m_stretchMinEdit, Isis::Stretch::Pairs(), Red, Isis::CubeViewport::redStretch(), Isis::CubeViewport::stretchBlue(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), Isis::CubeViewport::stretchKnownGlobal(), Isis::CubeViewport::stretchRed(), and updateAdvStretchDialogforAll().

Referenced by advancedStretchChanged(), changeStretch(), createToolBarWidget(), loadStretchFromCube(), setStretchAllViewports(), stretchBandChanged(), stretchGlobal(), stretchRect(), stretchRequested(), StretchTool(), and updateTool().

stretchChipViewport

void Isis::StretchTool::stretchChipViewport ( Stretch * , CubeViewport *  )

signal

when a viewport is stretched, send the stretch and the viewport associated with it to any ChipViewport's that might be listening

Referenced by advancedStretchChanged(), changeStretch(), mouseButtonRelease(), and stretchRect().

stretchGlobal [1/2]

void Isis::StretchTool::stretchGlobal ( )

slot

Does a global stretch for the active viewport.

Definition at line 1195 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), and stretchGlobal().

Referenced by createToolBarWidget(), mouseButtonRelease(), stretchGlobal(), stretchGlobalAllBands(), stretchGlobalAllViewports(), and StretchTool().

stretchGlobal [2/2]

void Isis::StretchTool::stretchGlobal ( CubeViewport * cvp )

slot

Does a global stretch for the specified viewport.

Definition at line 1219 of file StretchTool.cpp.

References stretchChanged(), and Isis::CubeViewport::stretchKnownGlobal().

stretchGlobalAllBands

void Isis::StretchTool::stretchGlobalAllBands ( )

slot

This resets the stretch across all bands.

Definition at line 1206 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), Isis::CubeViewport::forgetStretches(), and stretchGlobal().

Referenced by createToolBarWidget().

stretchGlobalAllViewports

void Isis::StretchTool::stretchGlobalAllViewports ( )

slot

Does a global stretch for all the viewports.

Definition at line 1229 of file StretchTool.cpp.

References Isis::Tool::cubeViewportList(), and stretchGlobal().

Referenced by createToolBarWidget().

stretchMinMaxType()

void Isis::StretchTool::stretchMinMaxType ( CubeViewport * cvp )

private

Sets stretch for current band in active viewport given the min/max type selection.

Definition at line 1127 of file StretchTool.cpp.

References Isis::Statistics::BestMaximum(), Isis::Statistics::BestMinimum(), Blue, Isis::CubeViewport::blueBand(), Isis::Statistics::ChebyshevMaximum(), Isis::Statistics::ChebyshevMinimum(), Isis::CubeViewport::cube(), Isis::CubeViewport::grayBand(), Green, Isis::CubeViewport::greenBand(), histFromCube(), m_stretchBandComboBox, m_stretchMaxEdit, m_stretchMinEdit, Isis::Statistics::Maximum(), Isis::Statistics::Minimum(), p_minMaxTypeSelection, Isis::Histogram::Percent(), Red, Isis::CubeViewport::redBand(), and statsFromCube().

Referenced by changeStretch().

stretchRect()

void Isis::StretchTool::stretchRect ( CubeViewport * cvp, QRect rect )

private

stretch the specified CubeViewport with the given rect

Parameters

cvp	The CubeViewport to stretch
rect	The rect with which to stretch the CubeViewport

Definition at line 1292 of file StretchTool.cpp.

References All, Blue, Isis::CubeViewport::blueBuffer(), Isis::CubeViewport::blueStretch(), Isis::Stretch::ClearPairs(), Isis::Stretch::CopyPairs(), Isis::CubeViewport::grayBuffer(), Isis::CubeViewport::grayStretch(), Green, Isis::CubeViewport::greenBuffer(), Isis::CubeViewport::greenStretch(), Isis::CubeViewport::isGray(), m_chipViewportStretch, m_stretchBand, Isis::IException::Programmer, Red, Isis::CubeViewport::redBuffer(), Isis::CubeViewport::redStretch(), Isis::CubeViewport::stretchBlue(), stretchBuffer(), stretchChanged(), stretchChipViewport(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), and Isis::CubeViewport::stretchRed().

Referenced by rubberBandComplete(), and stretchRegional().

stretchRegional [1/2]

void Isis::StretchTool::stretchRegional ( )

slot

Does a regional stretch for the active viewport.

Definition at line 1242 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), and stretchRegional().

Referenced by createToolBarWidget(), stretchRegional(), and StretchTool().

stretchRegional [2/2]

void Isis::StretchTool::stretchRegional ( CubeViewport * cvp )

slot

Does a regional stretch for the specified viewport.

Definition at line 1253 of file StretchTool.cpp.

References stretchRect().

stretchRequested()

void Isis::StretchTool::stretchRequested ( MdiCubeViewport * cvp, int bandId )

protectedvirtual

The cube viewport requested a stretch at this time, give it to the viewport.

Parameters

cvp
bandId

Reimplemented from Isis::Tool.

Definition at line 875 of file StretchTool.cpp.

References All, Blue, Isis::CubeViewport::blueBuffer(), Isis::CubeViewport::blueStretch(), Isis::Stretch::CopyPairs(), Gray, Isis::CubeViewport::grayBuffer(), Isis::CubeViewport::grayStretch(), Green, Isis::CubeViewport::greenBuffer(), Isis::CubeViewport::greenStretch(), Isis::ViewportBuffer::hasEntireCube(), Red, Isis::CubeViewport::redBuffer(), Isis::CubeViewport::redStretch(), screenPixelsChanged(), stretchBand(), Isis::CubeViewport::stretchBlue(), stretchBuffer(), stretchChanged(), Isis::CubeViewport::stretchGray(), Isis::CubeViewport::stretchGreen(), Isis::CubeViewport::stretchRed(), and updateHistograms().

toolIconDir()

QString Isis::Tool::toolIconDir ( ) const

inlineinherited

returns the path to the icon directory.

Returns

QString

Definition at line 113 of file Tool.h.

References m_toolIconDir.

Referenced by Isis::AdvancedTrackTool::AdvancedTrackTool(), Isis::BlinkTool::BlinkTool(), Isis::MatchTool::createActions(), Isis::QnetTool::createActions(), Isis::StereoTool::createMenus(), Isis::BandTool::createToolBarWidget(), Isis::EditTool::createToolBarWidget(), Isis::FindTool::createToolBarWidget(), Isis::PanTool::createToolBarWidget(), Isis::StereoTool::createToolBarWidget(), Isis::StretchTool::createToolBarWidget(), Isis::ZoomTool::createToolBarWidget(), Isis::FileTool::FileTool(), Isis::FindTool::FindTool(), Isis::HistogramTool::HistogramTool(), Isis::SpecialPixelTool::SpecialPixelTool(), Isis::BandTool::toolPadAction(), Isis::ControlNetTool::toolPadAction(), Isis::EditTool::toolPadAction(), Isis::FeatureNomenclatureTool::toolPadAction(), Isis::FindTool::toolPadAction(), Isis::HistogramTool::toolPadAction(), Isis::LatLonGridTool::toolPadAction(), Isis::MatchTool::toolPadAction(), Isis::MeasureTool::toolPadAction(), Isis::PanTool::toolPadAction(), Isis::QnetTool::toolPadAction(), Isis::ScatterPlotTool::toolPadAction(), Isis::SpatialPlotTool::toolPadAction(), Isis::SpectralPlotTool::toolPadAction(), Isis::StatisticsTool::toolPadAction(), Isis::StereoTool::toolPadAction(), Isis::StretchTool::toolPadAction(), Isis::SunShadowTool::toolPadAction(), Isis::ZoomTool::toolPadAction(), Isis::WindowTool::WindowTool(), and Isis::ZoomTool::ZoomTool().

toolPadAction()

QAction * Isis::StretchTool::toolPadAction ( ToolPad * pad )

protectedvirtual

Adds the stretch action to the toolpad.

Parameters

pad

Returns

QAction*

Reimplemented from Isis::Tool.

Definition at line 111 of file StretchTool.cpp.

References Isis::Tool::toolIconDir().

updateAdvStretchDialogforAll()

void Isis::StretchTool::updateAdvStretchDialogforAll

(

void

)

Update the streches and corresponding histograms for all the colors Red, Green and Blue for Stretch All Mode.

Author

Sharmila Prasad (3/14/2011)

Definition at line 406 of file StretchTool.cpp.

References Isis::CubeViewport::blueBuffer(), Isis::CubeViewport::blueStretch(), Isis::Tool::cubeViewport(), Isis::CubeViewport::greenBuffer(), Isis::CubeViewport::greenStretch(), histFromBuffer(), Isis::CubeViewport::isGray(), m_advancedStretch, Isis::CubeViewport::redBuffer(), Isis::CubeViewport::redStretch(), and Isis::ViewportBuffer::working().

Referenced by stretchChanged().

updateHistograms

void Isis::StretchTool::updateHistograms ( )

protectedslot

This updates the visible histograms in the advanced stretch, if present.

Definition at line 358 of file StretchTool.cpp.

References Isis::CubeViewport::blueBuffer(), Isis::Tool::cubeViewport(), Isis::CubeViewport::grayBuffer(), Isis::CubeViewport::greenBuffer(), histFromBuffer(), Isis::CubeViewport::isGray(), m_advancedStretch, Isis::CubeViewport::redBuffer(), updateTool(), Isis::Statistics::ValidPixels(), and Isis::ViewportBuffer::working().

Referenced by screenPixelsChanged(), stretchRequested(), and updateTool().

updateMeasure()

virtual void Isis::Tool::updateMeasure ( )

inlineprotectedvirtualinherited

Definition at line 167 of file Tool.h.

updateTool()

void Isis::StretchTool::updateTool ( )

protectedvirtual

Updates the stretch tool.

Reimplemented from Isis::Tool.

Definition at line 822 of file StretchTool.cpp.

References Isis::Tool::cubeViewport(), Isis::CubeViewport::isGray(), m_advancedStretch, m_copyBands, m_stretchBandComboBox, m_stretchMaxEdit, m_stretchMinEdit, setCubeViewport(), stretchBandChanged(), stretchChanged(), and updateHistograms().

Referenced by changeStretch(), showAdvancedDialog(), StretchTool(), and updateHistograms().

warningSignal

void Isis::StretchTool::warningSignal ( std::string & pStr, const std::string pExStr )

signal

Shows a warning.

This sends a signal (meant for when an exception occurs) to display the error using the warning object

Parameters

pStr
pExStr

Referenced by StretchTool().

workspace()

Workspace * Isis::Tool::workspace ( )

protectedinherited

Definition at line 344 of file Tool.cpp.

Member Data Documentation

m_active

bool Isis::Tool::m_active

privateinherited

Is the tool acitve?

Definition at line 264 of file Tool.h.

Referenced by activate(), setCubeViewport(), and Tool().

m_advancedStretch

AdvancedStretchDialog* Isis::StretchTool::m_advancedStretch

private

The advanced dialog.

Definition at line 183 of file StretchTool.h.

Referenced by advancedStretchChanged(), loadStretchFromCube(), saveStretchToCube(), setCubeViewport(), showAdvancedDialog(), stretchChanged(), StretchTool(), updateAdvStretchDialogforAll(), updateHistograms(), and updateTool().

m_chipViewportStretch

Stretch* Isis::StretchTool::m_chipViewportStretch

private

ChipViewport's stretch.

Definition at line 206 of file StretchTool.h.

Referenced by advancedStretchChanged(), changeStretch(), stretchRect(), StretchTool(), and ~StretchTool().

m_copyBands

QAction* Isis::StretchTool::m_copyBands

private

Copy band stretch action.

Definition at line 193 of file StretchTool.h.

Referenced by createToolBarWidget(), and updateTool().

m_copyButton

QToolButton* Isis::StretchTool::m_copyButton

private

Copy Button.

Definition at line 185 of file StretchTool.h.

Referenced by createToolBarWidget().

m_cvp

MdiCubeViewport* Isis::Tool::m_cvp

privateinherited

current cubeviewport

Definition at line 261 of file Tool.h.

Referenced by addViewportConnections(), cubeViewport(), registerTool(), removeViewportConnections(), setCubeViewport(), and Tool().

m_flashButton

QPushButton* Isis::StretchTool::m_flashButton

private

Button to press for global stretch.

Definition at line 188 of file StretchTool.h.

Referenced by createToolBarWidget(), and stretchChanged().

m_globalButton

QToolButton* Isis::StretchTool::m_globalButton

private

Global Button.

Definition at line 186 of file StretchTool.h.

Referenced by createToolBarWidget().

m_preGlobalStretches

Stretch* Isis::StretchTool::m_preGlobalStretches

private

Stretches before global button pressed.

Definition at line 204 of file StretchTool.h.

Referenced by stretchChanged(), StretchTool(), and ~StretchTool().

m_stretchBand

StretchBand Isis::StretchTool::m_stretchBand

private

Current stretch band.

Definition at line 201 of file StretchTool.h.

Referenced by changeStretch(), createToolBarWidget(), setStretchAcrossBands(), stretchBandChanged(), stretchChanged(), and stretchRect().

m_stretchBandComboBox

QComboBox* Isis::StretchTool::m_stretchBandComboBox

private

Stretch combo box.

Definition at line 195 of file StretchTool.h.

Referenced by createToolBarWidget(), stretchBandChanged(), stretchMinMaxType(), and updateTool().

m_stretchGlobal

QAction* Isis::StretchTool::m_stretchGlobal

private

Global stretch action.

Definition at line 190 of file StretchTool.h.

Referenced by addTo(), and StretchTool().

m_stretchManual

QAction* Isis::StretchTool::m_stretchManual

private

Manual stretch action.

Definition at line 192 of file StretchTool.h.

m_stretchMaxEdit

QLineEdit* Isis::StretchTool::m_stretchMaxEdit

private

Max. line edit.

Definition at line 199 of file StretchTool.h.

Referenced by changeStretch(), createToolBarWidget(), setStretchAcrossBands(), stretchBandChanged(), stretchChanged(), stretchMinMaxType(), and updateTool().

m_stretchMinEdit

QLineEdit* Isis::StretchTool::m_stretchMinEdit

private

Min. line edit.

Definition at line 198 of file StretchTool.h.

Referenced by changeStretch(), createToolBarWidget(), setStretchAcrossBands(), stretchBandChanged(), stretchChanged(), stretchMinMaxType(), and updateTool().

m_stretchRegional

QAction* Isis::StretchTool::m_stretchRegional

private

Regional stretch action.

Definition at line 191 of file StretchTool.h.

Referenced by addTo(), and StretchTool().

m_stretchRegionalButton

QToolButton* Isis::StretchTool::m_stretchRegionalButton

private

Regional Stretch Button.

Definition at line 187 of file StretchTool.h.

Referenced by createToolBarWidget().

m_toolBarWidget

QWidget* Isis::Tool::m_toolBarWidget

privateinherited

The tool bar on which this tool resides.

Definition at line 265 of file Tool.h.

Referenced by addToActive(), disableToolBar(), enableToolBar(), and Tool().

m_toolIconDir

QString Isis::Tool::m_toolIconDir

privateinherited

The pathway to the icon directory.

Definition at line 267 of file Tool.h.

Referenced by Tool(), and toolIconDir().

m_toolList

ToolList* Isis::Tool::m_toolList

privateinherited

Definition at line 268 of file Tool.h.

m_toolPadAction

QAction* Isis::Tool::m_toolPadAction

privateinherited

The tool pad on which this tool resides.

Definition at line 266 of file Tool.h.

Referenced by activate(), addTo(), addViewportConnections(), and Tool().

m_workspace

Workspace* Isis::Tool::m_workspace

privateinherited

Definition at line 262 of file Tool.h.

p_minMaxTypeSelection

QComboBox* Isis::StretchTool::p_minMaxTypeSelection

private

Min/Max type combo box.

Definition at line 196 of file StretchTool.h.

Referenced by createToolBarWidget(), and stretchMinMaxType().

---

The documentation for this class was generated from the following files:

• src/qisis/objs/StretchTool/StretchTool.h
• src/qisis/objs/StretchTool/StretchTool.cpp
