Isis 3 Programmer Reference
Public Slots | Signals | Public Member Functions | Protected Types | Protected Slots | Protected Member Functions | Private Slots | Private Member Functions | Private Attributes | List of all members
Isis::TrackTool Class Reference

This tool is part of the Qisis namespace and displays the statusbar of the window. More...

#include <TrackTool.h>

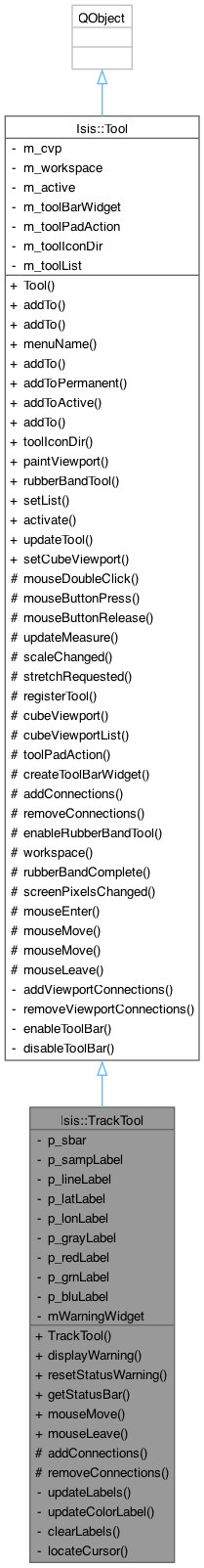

Inheritance diagram for Isis::TrackTool:
Inheritance graph

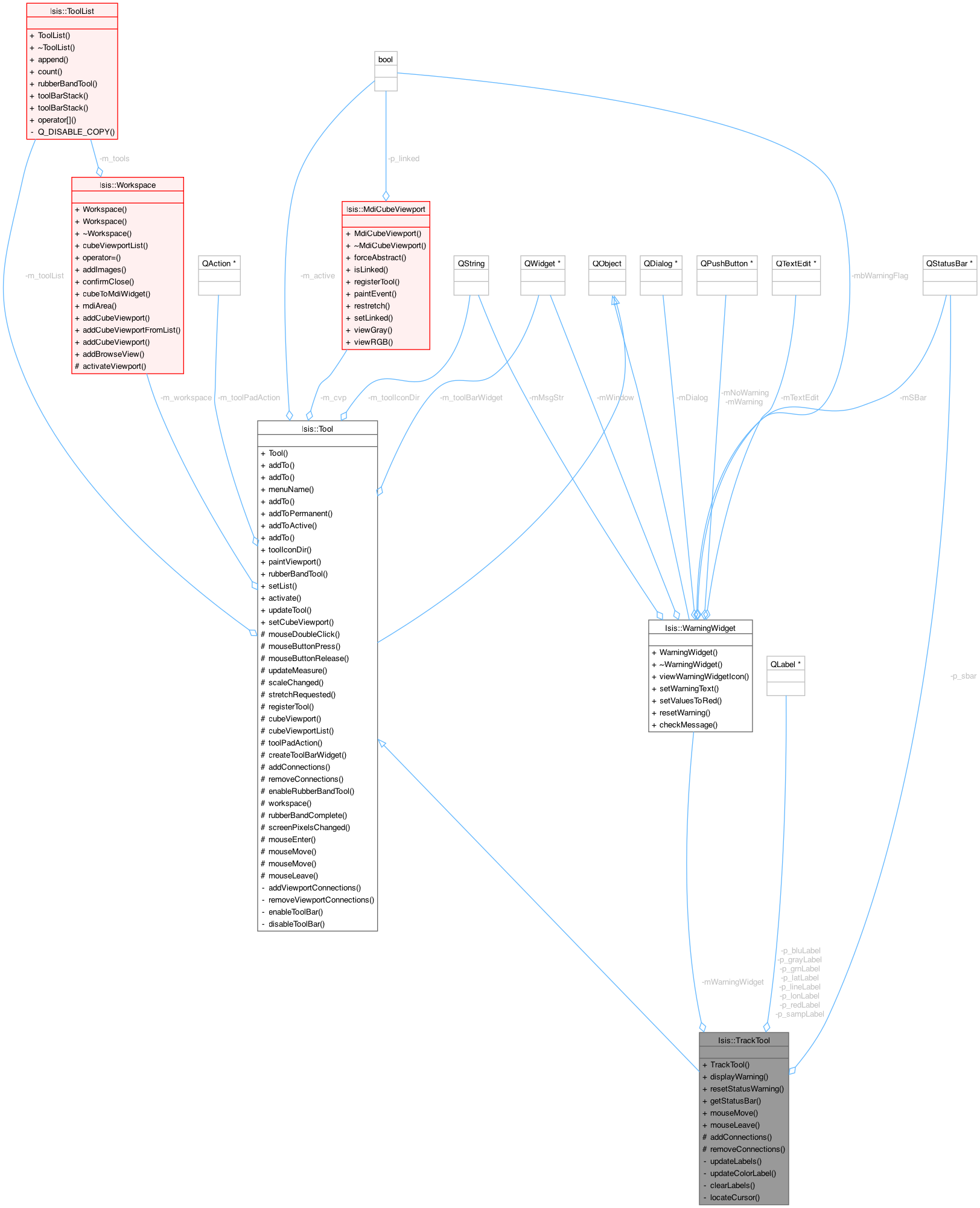

Collaboration diagram for Isis::TrackTool:
Collaboration graph

Public Slots

virtual void mouseMove (QPoint p)
 Updates the labels anytime the mouse moves.

virtual void mouseLeave ()
 Clears the labels if the mouse leaves the application.

void activate (bool)
 Activates the tool.

virtual void updateTool ()
 Updates the tool.

void setCubeViewport (MdiCubeViewport *cvp)
 Sets the current viewport to the given cvp.


Signals

void clearWarningSignal ()

void toolActivated ()

void viewportChanged ()


Public Member Functions

 TrackTool (QStatusBar *parent)
 TrackTool constructor.

void displayWarning (std::string &pStr, const std::string &pExStr)
 Display the Warning icon in case of an exception, sent from the tool where the exception occured.

void resetStatusWarning (void)
 Resets the warning status on the status bar to default.

QStatusBar * getStatusBar (void)

void addTo (ViewportMainWindow *mw)
 Adds the tool to the application.

void addTo (ToolPad *toolpad)
 Adds the tool to the toolpad.

virtual void addTo (QMenu *menu)

virtual void addTo (Workspace *ws)
 Adds the given workspace to the cubeviewport list.

virtual QString menuName () const
 Anytime a tool is created, you must give it a name for the menu.

virtual void addToPermanent (QToolBar *toolbar)

void addToActive (QToolBar *toolbar)

QString toolIconDir () const
 returns the path to the icon directory.

virtual void paintViewport (MdiCubeViewport *vp, QPainter *painter)

RubberBandTool * rubberBandTool ()

void setList (ToolList *currentList)


Protected Types

typedef QVector< MdiCubeViewport * > CubeViewportList
 A list of cubeviewports.


Protected Slots

virtual void rubberBandComplete ()

virtual void screenPixelsChanged ()
 This is called when actions change which pixels from the cube are displayed.

virtual void mouseEnter ()

virtual void mouseMove (QPoint p, Qt::MouseButton)


Protected Member Functions

void addConnections (MdiCubeViewport *cvp)
 Adds the connections to the given viewport.

void removeConnections (MdiCubeViewport *cvp)
 Removes the connections from the given viewport.

virtual void mouseDoubleClick (QPoint p)

virtual void mouseButtonPress (QPoint p, Qt::MouseButton s)

virtual void mouseButtonRelease (QPoint p, Qt::MouseButton s)
 Resets the Warning to Nowarning when a different activity occurs on the application.

virtual void updateMeasure ()

virtual void scaleChanged ()

virtual void stretchRequested (MdiCubeViewport *, int)

void registerTool (MdiCubeViewport *viewport)
 Registers the tool to the viewport.

MdiCubeViewport * cubeViewport () const
 Return the current cubeviewport.

CubeViewportList * cubeViewportList () const
 Return the list of cubeviewports.

virtual QAction * toolPadAction (ToolPad *toolpad)
 Anytime a tool is created, you must setup a tool pad action with it.

virtual QWidget * createToolBarWidget (QStackedWidget *parent)
 Anytime a tool is created, you must add it to the tool bar.

virtual void enableRubberBandTool ()
 Anytime a tool is created, you may use the rubber band tool.

Workspace * workspace ()


Private Slots

void locateCursor ()
 Finds the cursor position.


Private Member Functions

void updateLabels (QPoint p)
 Updates the tracking labels.

QString updateColorLabel (QPoint p, ViewportBuffer *buf, QLabel *label)

void clearLabels ()
 Clears the labels.

void addViewportConnections ()
 Makes all the connections for the tool.

void removeViewportConnections ()
 Removes all the connections from the tool.

void enableToolBar ()
 Enables entire tool bar.

void disableToolBar ()
 Disables entire tool bar.


Private Attributes

QStatusBar * p_sbar
 Status bar.

QLabel * p_sampLabel
 Sample label.

QLabel * p_lineLabel
 Line label.

QLabel * p_latLabel
 Lat label.

QLabel * p_lonLabel
 Lon label.

QLabel * p_grayLabel
 Gray label.

QLabel * p_redLabel
 Red label.

QLabel * p_grnLabel
 Green label.

QLabel * p_bluLabel
 Blue label.

WarningWidget * mWarningWidget
 Warning Widget.

MdiCubeViewport * m_cvp
 current cubeviewport

Workspace * m_workspace

bool m_active
 Is the tool acitve?

QWidget * m_toolBarWidget
 The tool bar on which this tool resides.

QAction * m_toolPadAction
 The tool pad on which this tool resides.

QString m_toolIconDir
 The pathway to the icon directory.

ToolList * m_toolList


Detailed Description

This tool is part of the Qisis namespace and displays the statusbar of the window.

The status bar tracks the line, sample, lat ,lon and pixel values. Also displays Warning status for any application activity.

Author
????-??-?? Unknown
History

2010-03-18 Sharmila Prasad - Added the Warning widget to the status bar to display the error status both icon and message for any application activity

2010-06-26 Eric Hyer - Now uses MdiCubeViewport instead of CubeViewport. Fixed include issues.

2011-04-25 Steven Lambright - Fixed updates at the bottom right

2012-06-18 Steven Lambright - Fixed access of viewport DN data to not access out of range data. Fixes #896.

2013-02-20 Debbie A. Cook - Changed to use TProjection instead of Projection. References #775.

2013-04-24 Jeannie Backer - Capitalized text output, "n/a", to be consistent with the AdvancedTrackTool text output. References #775.

2013-05-07 Jeannie Backer - Replaced Lat with Rad for non-projected "Plane" shaped models. References #775.

Definition at line 43 of file TrackTool.h.

Member Typedef Documentation

◆ CubeViewportList

typedef QVector< MdiCubeViewport * > Isis::Tool::CubeViewportList
protectedinherited

A list of cubeviewports.

Definition at line 205 of file Tool.h.

Constructor & Destructor Documentation

◆ TrackTool()

Isis::TrackTool::TrackTool ( QStatusBar * parent)

TrackTool constructor.

Parameters
parent

Definition at line 26 of file TrackTool.cpp.

References Isis::Tool::activate(), clearLabels(), mWarningWidget, p_bluLabel, p_grayLabel, p_grnLabel, p_latLabel, p_lineLabel, p_lonLabel, p_redLabel, p_sampLabel, p_sbar, and Isis::Tool::Tool().

Member Function Documentation

◆ activate

void Isis::Tool::activate ( bool on)
slotinherited

Activates the tool.

Parameters
on

Definition at line 131 of file Tool.cpp.

References addViewportConnections(), disableToolBar(), enableToolBar(), m_active, m_toolPadAction, and removeViewportConnections().

Referenced by addTo(), Isis::AdvancedTrackTool::AdvancedTrackTool(), Isis::RubberBandTool::disable(), Isis::RubberBandTool::enable(), Isis::AdvancedTrackTool::eventFilter(), Isis::FileTool::FileTool(), Isis::RubberBandTool::RubberBandTool(), Isis::TrackTool::TrackTool(), Isis::WindowTool::WindowTool(), and Isis::Workspace::Workspace().

◆ addConnections()

void Isis::TrackTool::addConnections ( MdiCubeViewport * cvp)
protectedvirtual

Adds the connections to the given viewport.

Parameters
cvp

Reimplemented from Isis::Tool.

Definition at line 335 of file TrackTool.cpp.

References Isis::Tool::cubeViewport(), and locateCursor().

◆ addTo() [1/4]

virtual void Isis::Tool::addTo ( QMenu * menu)
inlinevirtualinherited
Parameters
menu

Reimplemented in Isis::AdvancedTrackTool, Isis::BlinkTool, Isis::FeatureNomenclatureTool, Isis::FileTool, Isis::FindTool, Isis::HelpTool, Isis::MeasureTool, Isis::PanTool, Isis::QnetFileTool, Isis::SpecialPixelTool, Isis::SpectralPlotTool, Isis::StretchTool, Isis::SunShadowTool, Isis::WindowTool, and Isis::ZoomTool.

Definition at line 91 of file Tool.h.

◆ addTo() [2/4]

void Isis::Tool::addTo ( ToolPad * toolpad)
inherited

Adds the tool to the toolpad.

Parameters
toolpad

Definition at line 98 of file Tool.cpp.

References activate(), Isis::ToolPad::addAction(), m_toolPadAction, and toolPadAction().

◆ addTo() [3/4]

void Isis::Tool::addTo ( ViewportMainWindow * pViewPortMnWin)
inherited

Adds the tool to the application.

Parameters
pViewPortMnWin

Definition at line 78 of file Tool.cpp.

References Isis::ViewportMainWindow::activeToolBar(), addTo(), addToActive(), addToPermanent(), Isis::ViewportMainWindow::getMenu(), menuName(), Isis::ViewportMainWindow::permanentToolBar(), Isis::ViewportMainWindow::toolPad(), and Isis::ViewportMainWindow::workspace().

Referenced by Isis::EditTool::addTo(), Isis::FileTool::addTo(), Isis::SpecialPixelTool::addTo(), addTo(), Isis::WindowTool::addTo(), and Isis::Workspace::Workspace().

◆ addTo() [4/4]

void Isis::Tool::addTo ( Workspace * ws)
virtualinherited

Adds the given workspace to the cubeviewport list.

Parameters
ws

Reimplemented in Isis::EditTool, Isis::FileTool, Isis::SpecialPixelTool, and Isis::WindowTool.

Definition at line 45 of file Tool.cpp.

References registerTool(), and setCubeViewport().

◆ addToActive()

void Isis::Tool::addToActive ( QToolBar * toolbar)
inherited
Parameters
toolbar

Definition at line 112 of file Tool.cpp.

References createToolBarWidget(), disableToolBar(), and m_toolBarWidget.

Referenced by addTo(), and Isis::Workspace::Workspace().

◆ addToPermanent()

virtual void Isis::Tool::addToPermanent ( QToolBar * toolbar)
inlinevirtualinherited
Parameters
toolbar

Reimplemented in Isis::AdvancedTrackTool, Isis::BlinkTool, Isis::FileTool, Isis::HelpTool, Isis::SpecialPixelTool, and Isis::WindowTool.

Definition at line 97 of file Tool.h.

Referenced by addTo(), and Isis::Workspace::Workspace().

◆ addViewportConnections()

void Isis::Tool::addViewportConnections ( )
privateinherited

Makes all the connections for the tool.

Definition at line 187 of file Tool.cpp.

References addConnections(), enableRubberBandTool(), m_cvp, m_toolPadAction, mouseButtonPress(), mouseButtonRelease(), mouseDoubleClick(), mouseMove(), and screenPixelsChanged().

Referenced by activate(), and setCubeViewport().

◆ clearLabels()

void Isis::TrackTool::clearLabels ( )
private

Clears the labels.

Definition at line 302 of file TrackTool.cpp.

References p_bluLabel, p_grayLabel, p_grnLabel, p_latLabel, p_lineLabel, p_lonLabel, p_redLabel, and p_sampLabel.

Referenced by mouseLeave(), TrackTool(), and updateLabels().

◆ createToolBarWidget()

virtual QWidget * Isis::Tool::createToolBarWidget ( QStackedWidget * parent)
inlineprotectedvirtualinherited

Anytime a tool is created, you must add it to the tool bar.

Parameters
parent
Returns
QWidget*

Reimplemented in Isis::AbstractPlotTool, Isis::BandTool, Isis::EditTool, Isis::FeatureNomenclatureTool, Isis::FindTool, Isis::HistogramTool, Isis::LatLonGridTool, Isis::MeasureTool, Isis::PanTool, Isis::ScatterPlotTool, Isis::SpatialPlotTool, Isis::SpectralPlotTool, Isis::StatisticsTool, Isis::StereoTool, Isis::StretchTool, Isis::SunShadowTool, and Isis::ZoomTool.

Definition at line 229 of file Tool.h.

Referenced by addToActive().

◆ cubeViewport()

MdiCubeViewport * Isis::Tool::cubeViewport ( ) const
inlineprotectedinherited

Return the current cubeviewport.

Returns
CubeViewport*

Definition at line 197 of file Tool.h.

References m_cvp.

Referenced by Isis::TrackTool::addConnections(), Isis::WindowTool::addConnections(), Isis::StretchTool::advancedStretchChanged(), Isis::FindTool::centerLinkedViewports(), Isis::StretchTool::changeStretch(), Isis::BandTool::changeView(), Isis::BandTool::copyLinkedViewports(), Isis::StretchTool::deleteFromCube(), Isis::FileTool::discard(), enableToolBar(), Isis::FileTool::exportToList(), Isis::FileTool::exportView(), Isis::StatisticsTool::getStatistics(), Isis::FindTool::handleRecordClicked(), Isis::EditTool::LineToPoints(), Isis::StretchTool::loadStretchFromCube(), Isis::TrackTool::locateCursor(), Isis::SunShadowTool::mouseButtonPress(), Isis::ControlNetTool::mouseButtonRelease(), Isis::EditTool::mouseButtonRelease(), Isis::FeatureNomenclatureTool::mouseButtonRelease(), Isis::FindTool::mouseButtonRelease(), Isis::MatchTool::mouseButtonRelease(), Isis::QnetTool::mouseButtonRelease(), Isis::RubberBandTool::mouseButtonRelease(), Isis::StretchTool::mouseButtonRelease(), Isis::AdvancedTrackTool::mouseLeave(), Isis::RubberBandTool::mouseMove(), Isis::ScatterPlotTool::mouseMove(), Isis::SunShadowTool::mouseMove(), Isis::TrackTool::mouseMove(), Isis::FindTool::paintViewport(), Isis::LatLonGridTool::paintViewport(), Isis::RubberBandTool::paintViewport(), Isis::SunShadowTool::paintViewport(), Isis::FileTool::print(), Isis::SunShadowTool::recalculateShadowHeight(), Isis::EditTool::redoEdit(), Isis::FindTool::refresh(), Isis::HistogramTool::refreshPlot(), Isis::SpatialPlotTool::refreshPlot(), Isis::SpectralPlotTool::refreshPlot(), Isis::TrackTool::removeConnections(), Isis::WindowTool::removeConnections(), Isis::RubberBandTool::repaint(), Isis::WindowTool::resizeWindows(), Isis::EditTool::rubberBandComplete(), Isis::HistogramTool::rubberBandComplete(), Isis::MeasureTool::rubberBandComplete(), Isis::StretchTool::rubberBandComplete(), Isis::ZoomTool::rubberBandComplete(), Isis::FileTool::save(), Isis::FileTool::saveAs(), Isis::FileTool::saveAsCubeByOption(), Isis::FileTool::saveAsReducedCube(), Isis::FileTool::saveInfo(), Isis::StretchTool::saveStretchToCube(), Isis::BandTool::setBandBin(), Isis::BandTool::setList(), Isis::StretchTool::setStretchAcrossBands(), Isis::StretchTool::setStretchAllViewports(), Isis::StretchTool::showAdvancedDialog(), Isis::ScatterPlotTool::showNewScatterPlotConfig(), Isis::StretchTool::stretchChanged(), Isis::StretchTool::stretchGlobal(), Isis::StretchTool::stretchGlobalAllBands(), Isis::StretchTool::stretchRegional(), Isis::EditTool::undoEdit(), Isis::StretchTool::updateAdvStretchDialogforAll(), Isis::StretchTool::updateHistograms(), Isis::TrackTool::updateLabels(), Isis::MeasureTool::updateMeasure(), Isis::AdvancedTrackTool::updateRow(), Isis::AdvancedTrackTool::updateRow(), Isis::AbstractPlotTool::updateTool(), Isis::BandTool::updateTool(), Isis::BlinkTool::updateTool(), Isis::EditTool::updateTool(), Isis::FileTool::updateTool(), Isis::FindTool::updateTool(), Isis::LatLonGridTool::updateTool(), Isis::SpecialPixelTool::updateTool(), Isis::StretchTool::updateTool(), Isis::SunShadowTool::updateTool(), Isis::WindowTool::updateTool(), Isis::ZoomTool::updateTool(), Isis::AbstractPlotTool::viewportsToPlot(), Isis::EditTool::writeToCube(), Isis::ZoomTool::zoomBy(), Isis::ZoomTool::zoomFit(), Isis::ZoomTool::zoomFitHeight(), Isis::ZoomTool::zoomFitWidth(), and Isis::ZoomTool::zoomManual().

◆ cubeViewportList()

Tool::CubeViewportList * Isis::Tool::cubeViewportList ( ) const
protectedinherited

Return the list of cubeviewports.

Returns
CubeViewportList*

Definition at line 390 of file Tool.cpp.

Referenced by Isis::BlinkTool::advance(), Isis::SpecialPixelTool::apply(), Isis::FindTool::centerLinkedViewports(), Isis::WindowTool::changeCursor(), Isis::FileTool::closeAll(), Isis::BandTool::copyAllViewports(), Isis::BandTool::copyLinkedViewports(), Isis::MatchTool::createPoint(), Isis::BlinkTool::eventFilter(), Isis::FeatureNomenclatureTool::featuresIdentified(), Isis::FeatureNomenclatureTool::findMissingNomenclature(), Isis::FeatureNomenclatureTool::findNomenclatureStateChanged(), Isis::FindTool::handleLinkClicked(), Isis::WindowTool::linkWindows(), Isis::RubberBandTool::mouseButtonRelease(), Isis::RubberBandTool::mouseMove(), Isis::QnetTool::openGround(), Isis::ControlNetTool::paintAllViewports(), Isis::MatchTool::paintAllViewports(), Isis::QnetTool::paintAllViewports(), Isis::StereoTool::paintAllViewports(), Isis::FindTool::refresh(), Isis::AbstractPlotTool::repaintViewports(), Isis::AbstractPlotTool::repaintViewports(), Isis::ScatterPlotTool::repaintViewports(), Isis::WindowTool::resizeWindows(), Isis::BlinkTool::reverse(), Isis::ZoomTool::rubberBandComplete(), Isis::MatchTool::serialNumberList(), Isis::ControlNetTool::setControlNet(), Isis::FeatureNomenclatureTool::setFontColor(), Isis::FeatureNomenclatureTool::setFontSize(), Isis::FeatureNomenclatureTool::setShowApprovedOnly(), Isis::StretchTool::setStretchAllViewports(), Isis::FeatureNomenclatureTool::setVectorType(), Isis::StretchTool::stretchGlobalAllViewports(), Isis::BlinkTool::toggleLink(), Isis::WindowTool::unlinkWindows(), Isis::MeasureTool::updateMeasure(), Isis::AdvancedTrackTool::updateRow(), Isis::BlinkTool::updateTool(), Isis::FindTool::updateTool(), Isis::WindowTool::updateTool(), Isis::AbstractPlotTool::viewportsToPlot(), Isis::ZoomTool::zoomBy(), Isis::ZoomTool::zoomFit(), Isis::ZoomTool::zoomFitHeight(), Isis::ZoomTool::zoomFitWidth(), and Isis::ZoomTool::zoomManual().

◆ disableToolBar()

void Isis::Tool::disableToolBar ( )
privateinherited

Disables entire tool bar.

Definition at line 285 of file Tool.cpp.

References m_toolBarWidget.

Referenced by activate(), and addToActive().

◆ displayWarning()

void Isis::TrackTool::displayWarning ( std::string & pStr,
const std::string & pExStr )

Display the Warning icon in case of an exception, sent from the tool where the exception occured.

Parameters
pStr- Topmost Exception Message String
pExStr- Propagated exception message string

Definition at line 97 of file TrackTool.cpp.

References mWarningWidget.

◆ enableRubberBandTool()

void Isis::Tool::enableRubberBandTool ( )
protectedvirtualinherited

Anytime a tool is created, you may use the rubber band tool.

Enable the use of the rubberband tool.

Reimplemented in Isis::HistogramTool, Isis::MeasureTool, Isis::RubberBandTool, Isis::SpatialPlotTool, Isis::SpectralPlotTool, Isis::StereoTool, and Isis::ZoomTool.

Definition at line 339 of file Tool.cpp.

Referenced by addViewportConnections().

◆ enableToolBar()

void Isis::Tool::enableToolBar ( )
privateinherited

Enables entire tool bar.

Definition at line 297 of file Tool.cpp.

References cubeViewport(), m_toolBarWidget, and updateTool().

Referenced by activate(), and setCubeViewport().

◆ getStatusBar()

QStatusBar * Isis::TrackTool::getStatusBar ( void )

Definition at line 353 of file TrackTool.cpp.

◆ locateCursor

void Isis::TrackTool::locateCursor ( )
privateslot

Finds the cursor position.

Definition at line 318 of file TrackTool.cpp.

References Isis::Tool::cubeViewport(), and updateLabels().

Referenced by addConnections(), and removeConnections().

◆ menuName()

virtual QString Isis::Tool::menuName ( ) const
inlinevirtualinherited

Anytime a tool is created, you must give it a name for the menu.

Returns
QString

Reimplemented in Isis::AdvancedTrackTool, Isis::BandTool, Isis::BlinkTool, Isis::FeatureNomenclatureTool, Isis::FileTool, Isis::FindTool, Isis::HelpTool, Isis::MeasureTool, Isis::PanTool, Isis::SpecialPixelTool, Isis::StretchTool, Isis::WindowTool, and Isis::ZoomTool.

Definition at line 83 of file Tool.h.

Referenced by addTo(), and Isis::Workspace::Workspace().

◆ mouseButtonPress()

void Isis::Tool::mouseButtonPress ( QPoint p,
Qt::MouseButton s )
protectedvirtualinherited
Parameters
p
s

Definition at line 367 of file Tool.cpp.

Referenced by addViewportConnections(), and removeViewportConnections().

◆ mouseButtonRelease()

void Isis::Tool::mouseButtonRelease ( QPoint p,
Qt::MouseButton s )
protectedvirtualinherited

Resets the Warning to Nowarning when a different activity occurs on the application.

This is called by all the mouseButtonRelease events in all the tools.

Parameters
p
s

Reimplemented in Isis::FeatureNomenclatureTool.

Definition at line 380 of file Tool.cpp.

Referenced by addViewportConnections(), Isis::StretchTool::mouseButtonRelease(), and removeViewportConnections().

◆ mouseDoubleClick()

void Isis::Tool::mouseDoubleClick ( QPoint p)
protectedvirtualinherited
Parameters
p

Definition at line 358 of file Tool.cpp.

Referenced by addViewportConnections(), and removeViewportConnections().

◆ mouseEnter

virtual void Isis::Tool::mouseEnter ( )
inlineprotectedvirtualslotinherited

Definition at line 152 of file Tool.h.

◆ mouseLeave

void Isis::TrackTool::mouseLeave ( )
virtualslot

Clears the labels if the mouse leaves the application.

Definition at line 131 of file TrackTool.cpp.

References clearLabels().

◆ mouseMove [1/2]

virtual void Isis::Tool::mouseMove ( QPoint p,
Qt::MouseButton  )
inlineprotectedvirtualslotinherited

Definition at line 155 of file Tool.h.

◆ mouseMove [2/2]

void Isis::TrackTool::mouseMove ( QPoint p)
virtualslot

Updates the labels anytime the mouse moves.

Parameters
p

Definition at line 116 of file TrackTool.cpp.

References Isis::Tool::cubeViewport(), and updateLabels().

◆ paintViewport()

virtual void Isis::Tool::paintViewport ( MdiCubeViewport * vp,
QPainter * painter )
inlinevirtualinherited
Parameters
vp
painter

Reimplemented in Isis::AbstractPlotTool, Isis::ControlNetTool, Isis::FeatureNomenclatureTool, Isis::FindTool, Isis::LatLonGridTool, Isis::MatchTool, Isis::QnetTool, Isis::RubberBandTool, Isis::ScatterPlotTool, Isis::StereoTool, and Isis::SunShadowTool.

Definition at line 122 of file Tool.h.

◆ registerTool()

void Isis::Tool::registerTool ( MdiCubeViewport * viewport)
protectedinherited

Registers the tool to the viewport.

Parameters
viewport

Definition at line 327 of file Tool.cpp.

References m_cvp, and Isis::MdiCubeViewport::registerTool().

Referenced by addTo().

◆ removeConnections()

void Isis::TrackTool::removeConnections ( MdiCubeViewport * cvp)
protectedvirtual

Removes the connections from the given viewport.

Parameters
cvp

Reimplemented from Isis::Tool.

Definition at line 347 of file TrackTool.cpp.

References Isis::Tool::cubeViewport(), and locateCursor().

◆ removeViewportConnections()

void Isis::Tool::removeViewportConnections ( )
privateinherited

Removes all the connections from the tool.

Definition at line 238 of file Tool.cpp.

References m_cvp, mouseButtonPress(), mouseButtonRelease(), mouseDoubleClick(), mouseMove(), removeConnections(), and screenPixelsChanged().

Referenced by activate(), and setCubeViewport().

◆ resetStatusWarning()

void Isis::TrackTool::resetStatusWarning ( void )

Resets the warning status on the status bar to default.

Definition at line 104 of file TrackTool.cpp.

References mWarningWidget.

◆ rubberBandComplete

virtual void Isis::Tool::rubberBandComplete ( )
inlineprotectedvirtualslotinherited

Definition at line 141 of file Tool.h.

◆ rubberBandTool()

RubberBandTool * Isis::Tool::rubberBandTool ( )
inherited

Definition at line 57 of file Tool.cpp.

◆ scaleChanged()

virtual void Isis::Tool::scaleChanged ( )
inlineprotectedvirtualinherited

Definition at line 172 of file Tool.h.

◆ screenPixelsChanged

virtual void Isis::Tool::screenPixelsChanged ( )
inlineprotectedvirtualslotinherited

This is called when actions change which pixels from the cube are displayed.

Definition at line 148 of file Tool.h.

Referenced by addViewportConnections(), removeViewportConnections(), and Isis::FeatureNomenclatureTool::viewportDone().

◆ setCubeViewport

void Isis::Tool::setCubeViewport ( MdiCubeViewport * cvp)
slotinherited

Sets the current viewport to the given cvp.

Parameters
cvp

Definition at line 160 of file Tool.cpp.

References addViewportConnections(), enableToolBar(), m_active, m_cvp, removeViewportConnections(), and updateTool().

Referenced by addTo(), and Isis::FileTool::closeAll().

◆ setList()

void Isis::Tool::setList ( ToolList * currentList)
inherited

Definition at line 68 of file Tool.cpp.

◆ stretchRequested()

virtual void Isis::Tool::stretchRequested ( MdiCubeViewport * ,
int  )
inlineprotectedvirtualinherited

Reimplemented in Isis::StretchTool.

Definition at line 177 of file Tool.h.

◆ toolIconDir()

QString Isis::Tool::toolIconDir ( ) const
inlineinherited

returns the path to the icon directory.

Returns
QString

Definition at line 113 of file Tool.h.

References m_toolIconDir.

Referenced by Isis::AdvancedTrackTool::AdvancedTrackTool(), Isis::BlinkTool::BlinkTool(), Isis::MatchTool::createActions(), Isis::QnetTool::createActions(), Isis::StereoTool::createMenus(), Isis::BandTool::createToolBarWidget(), Isis::EditTool::createToolBarWidget(), Isis::FindTool::createToolBarWidget(), Isis::PanTool::createToolBarWidget(), Isis::StereoTool::createToolBarWidget(), Isis::StretchTool::createToolBarWidget(), Isis::ZoomTool::createToolBarWidget(), Isis::FileTool::FileTool(), Isis::FindTool::FindTool(), Isis::HistogramTool::HistogramTool(), Isis::SpecialPixelTool::SpecialPixelTool(), Isis::BandTool::toolPadAction(), Isis::ControlNetTool::toolPadAction(), Isis::EditTool::toolPadAction(), Isis::FeatureNomenclatureTool::toolPadAction(), Isis::FindTool::toolPadAction(), Isis::HistogramTool::toolPadAction(), Isis::LatLonGridTool::toolPadAction(), Isis::MatchTool::toolPadAction(), Isis::MeasureTool::toolPadAction(), Isis::PanTool::toolPadAction(), Isis::QnetTool::toolPadAction(), Isis::ScatterPlotTool::toolPadAction(), Isis::SpatialPlotTool::toolPadAction(), Isis::SpectralPlotTool::toolPadAction(), Isis::StatisticsTool::toolPadAction(), Isis::StereoTool::toolPadAction(), Isis::StretchTool::toolPadAction(), Isis::SunShadowTool::toolPadAction(), Isis::ZoomTool::toolPadAction(), Isis::WindowTool::WindowTool(), and Isis::ZoomTool::ZoomTool().

◆ toolPadAction()

virtual QAction * Isis::Tool::toolPadAction ( ToolPad * toolpad)
inlineprotectedvirtualinherited

Anytime a tool is created, you must setup a tool pad action with it.

Parameters
toolpad
Returns
QAction*

Reimplemented in Isis::BandTool, Isis::ControlNetTool, Isis::EditTool, Isis::FeatureNomenclatureTool, Isis::FindTool, Isis::HistogramTool, Isis::LatLonGridTool, Isis::MatchTool, Isis::MeasureTool, Isis::PanTool, Isis::QnetTool, Isis::ScatterPlotTool, Isis::SpatialPlotTool, Isis::SpectralPlotTool, Isis::StatisticsTool, Isis::StereoTool, Isis::StretchTool, Isis::SunShadowTool, and Isis::ZoomTool.

Definition at line 217 of file Tool.h.

Referenced by addTo().

◆ updateColorLabel()

QString Isis::TrackTool::updateColorLabel ( QPoint p,
ViewportBuffer * buf,
QLabel * label )
private

Definition at line 283 of file TrackTool.cpp.

◆ updateLabels()

void Isis::TrackTool::updateLabels ( QPoint p)
private

Updates the tracking labels.

Parameters
p

Definition at line 142 of file TrackTool.cpp.

References Isis::CubeViewport::blueBuffer(), Isis::CubeViewport::camera(), clearLabels(), Isis::CubeViewport::cubeLines(), Isis::CubeViewport::cubeSamples(), Isis::Tool::cubeViewport(), Isis::Sensor::Declination(), Isis::CubeViewport::grayBuffer(), Isis::CubeViewport::greenBuffer(), Isis::CubeViewport::isGray(), Isis::Projection::IsSky(), Isis::Target::isSky(), Isis::TProjection::Latitude(), Isis::Sensor::LocalRadius(), Isis::TProjection::Longitude(), Isis::Distance::meters(), Isis::ShapeModel::name(), p_bluLabel, p_grayLabel, p_grnLabel, p_latLabel, p_lineLabel, p_lonLabel, p_redLabel, p_sampLabel, Isis::CubeViewport::projection(), Isis::Projection::projectionType(), Isis::CubeViewport::redBuffer(), Isis::Sensor::RightAscension(), Isis::RingPlaneProjection::RingLongitude(), Isis::RingPlaneProjection::RingRadius(), Isis::Camera::SetImage(), Isis::Projection::SetWorld(), Isis::Target::shape(), Isis::Spice::target(), Isis::IString::ToQt(), Isis::Projection::Triaxial, Isis::Sensor::UniversalLatitude(), Isis::Sensor::UniversalLongitude(), and Isis::CubeViewport::viewportToCube().

Referenced by locateCursor(), and mouseMove().

◆ updateMeasure()

virtual void Isis::Tool::updateMeasure ( )
inlineprotectedvirtualinherited

Definition at line 167 of file Tool.h.

◆ updateTool

void Isis::Tool::updateTool ( )
virtualslotinherited

Updates the tool.

Reimplemented in Isis::AbstractPlotTool, Isis::BandTool, Isis::BlinkTool, Isis::EditTool, Isis::FeatureNomenclatureTool, Isis::FileTool, Isis::FindTool, Isis::HistogramTool, Isis::LatLonGridTool, Isis::MeasureTool, Isis::SpatialPlotTool, Isis::SpecialPixelTool, Isis::SpectralPlotTool, Isis::StretchTool, Isis::SunShadowTool, Isis::WindowTool, and Isis::ZoomTool.

Definition at line 318 of file Tool.cpp.

Referenced by enableToolBar(), and setCubeViewport().

◆ workspace()

Workspace * Isis::Tool::workspace ( )
protectedinherited

Definition at line 344 of file Tool.cpp.

Member Data Documentation

◆ m_active

bool Isis::Tool::m_active
privateinherited

Is the tool acitve?

Definition at line 264 of file Tool.h.

Referenced by activate(), setCubeViewport(), and Tool().

◆ m_cvp

MdiCubeViewport* Isis::Tool::m_cvp
privateinherited

current cubeviewport

Definition at line 261 of file Tool.h.

Referenced by addViewportConnections(), cubeViewport(), registerTool(), removeViewportConnections(), setCubeViewport(), and Tool().

◆ m_toolBarWidget

QWidget* Isis::Tool::m_toolBarWidget
privateinherited

The tool bar on which this tool resides.

Definition at line 265 of file Tool.h.

Referenced by addToActive(), disableToolBar(), enableToolBar(), and Tool().

◆ m_toolIconDir

QString Isis::Tool::m_toolIconDir
privateinherited

The pathway to the icon directory.

Definition at line 267 of file Tool.h.

Referenced by Tool(), and toolIconDir().

◆ m_toolList

ToolList* Isis::Tool::m_toolList
privateinherited

Definition at line 268 of file Tool.h.

◆ m_toolPadAction

QAction* Isis::Tool::m_toolPadAction
privateinherited

The tool pad on which this tool resides.

Definition at line 266 of file Tool.h.

Referenced by activate(), addTo(), addViewportConnections(), and Tool().

◆ m_workspace

Workspace* Isis::Tool::m_workspace
privateinherited

Definition at line 262 of file Tool.h.

◆ mWarningWidget

WarningWidget* Isis::TrackTool::mWarningWidget
private

Warning Widget.

Definition at line 77 of file TrackTool.h.

Referenced by displayWarning(), resetStatusWarning(), and TrackTool().

◆ p_bluLabel

QLabel* Isis::TrackTool::p_bluLabel
private

Blue label.

Definition at line 76 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_grayLabel

QLabel* Isis::TrackTool::p_grayLabel
private

Gray label.

Definition at line 73 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_grnLabel

QLabel* Isis::TrackTool::p_grnLabel
private

Green label.

Definition at line 75 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_latLabel

QLabel* Isis::TrackTool::p_latLabel
private

Lat label.

Definition at line 71 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_lineLabel

QLabel* Isis::TrackTool::p_lineLabel
private

Line label.

Definition at line 70 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_lonLabel

QLabel* Isis::TrackTool::p_lonLabel
private

Lon label.

Definition at line 72 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_redLabel

QLabel* Isis::TrackTool::p_redLabel
private

Red label.

Definition at line 74 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_sampLabel

QLabel* Isis::TrackTool::p_sampLabel
private

Sample label.

Definition at line 69 of file TrackTool.h.

Referenced by clearLabels(), TrackTool(), and updateLabels().

◆ p_sbar

QStatusBar* Isis::TrackTool::p_sbar
private

Status bar.

Definition at line 68 of file TrackTool.h.

Referenced by TrackTool().

The documentation for this class was generated from the following files:
