Isis::CubePlotCurveConfigureDialog Class Reference

This should be an inner class for CubePlotCurve, but Qt doesn't support having a QObject as an inner class. More...

#include <CubePlotCurveConfigureDialog.h>

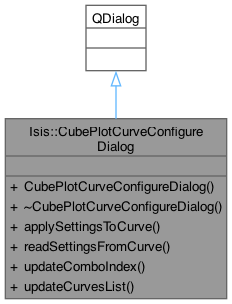

Inheritance diagram for Isis::CubePlotCurveConfigureDialog:

Collaboration diagram for Isis::CubePlotCurveConfigureDialog:

Public Slots
void	applySettingsToCurve ()
	This takes the configuration settings and applies them to the plot curve.
void	readSettingsFromCurve ()
	This takes the current data inside of the plot curve and populates this configuration dialog's widgets with the appropriate data/settings.
void	updateComboIndex (int selected)
void	updateCurvesList ()

Public Member Functions
	CubePlotCurveConfigureDialog (CubePlotCurve *curve, QWidget *parent=NULL)
	This instantiates a configuration dialog associated with the given cube plot curve.
virtual	~CubePlotCurveConfigureDialog ()
	This destroys the configuration dialog, which happens when the user closes it or clicks ok or cancel.

Detailed Description

This should be an inner class for CubePlotCurve, but Qt doesn't support having a QObject as an inner class.

Author

2012-01-18 Steven Lambright

Constructor & Destructor Documentation

CubePlotCurveConfigureDialog()

Isis::CubePlotCurveConfigureDialog::CubePlotCurveConfigureDialog	(	CubePlotCurve *	curve,
		QWidget *	parent = NULL )

This instantiates a configuration dialog associated with the given cube plot curve.

Parameters

curve	The plot curve to be configured.
parent	The parent widget/widget who owns this dialog.

References applySettingsToCurve(), readSettingsFromCurve(), updateComboIndex(), and updateCurvesList().

~CubePlotCurveConfigureDialog()

Isis::CubePlotCurveConfigureDialog::~CubePlotCurveConfigureDialog ( )

virtual

This destroys the configuration dialog, which happens when the user closes it or clicks ok or cancel.

Member Function Documentation

applySettingsToCurve

void Isis::CubePlotCurveConfigureDialog::applySettingsToCurve ( )

slot

This takes the configuration settings and applies them to the plot curve.

This happens when the user clicks 'apply' or 'ok.' Any settings that fail to be applied correctly will be reverted in the GUI.

References readSettingsFromCurve().

Referenced by CubePlotCurveConfigureDialog().

readSettingsFromCurve

void Isis::CubePlotCurveConfigureDialog::readSettingsFromCurve ( )

slot

This takes the current data inside of the plot curve and populates this configuration dialog's widgets with the appropriate data/settings.

References _FILEINFO_, and Isis::IException::Programmer.

Referenced by applySettingsToCurve(), CubePlotCurveConfigureDialog(), updateComboIndex(), and updateCurvesList().

updateComboIndex

void Isis::CubePlotCurveConfigureDialog::updateComboIndex ( int selected )

slot

References readSettingsFromCurve().

Referenced by CubePlotCurveConfigureDialog().

updateCurvesList

void Isis::CubePlotCurveConfigureDialog::updateCurvesList ( )

slot

References readSettingsFromCurve().

Referenced by CubePlotCurveConfigureDialog().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/qisis/objs/CubePlotCurve/CubePlotCurveConfigureDialog.h
• /Users/astamile/ISIS3/isis/src/qisis/objs/CubePlotCurve/CubePlotCurveConfigureDialog.cpp
