Convert between alpha image coordinates and radar sample, time coordinates. More...

#include <RadarPulseMap.h>

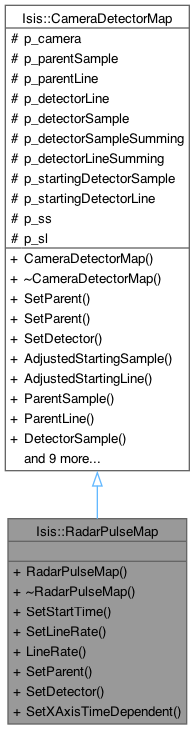

Inheritance diagram for Isis::RadarPulseMap:

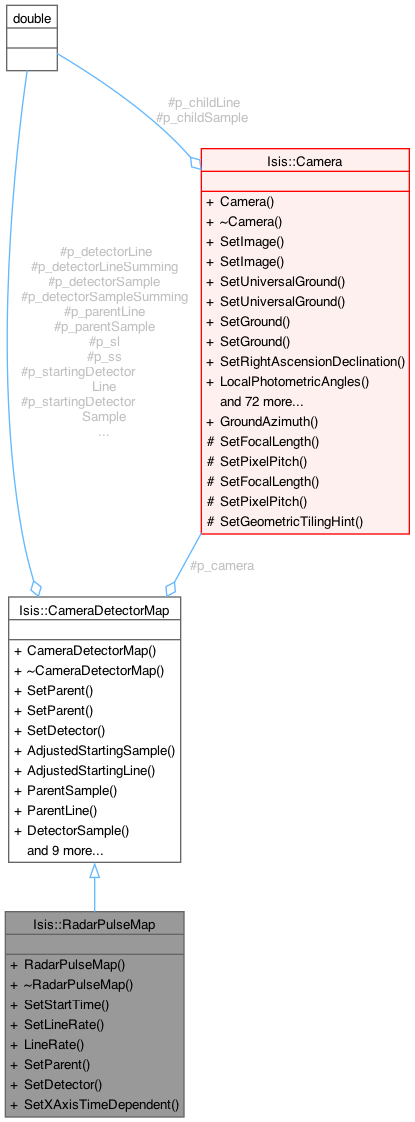

Collaboration diagram for Isis::RadarPulseMap:

Public Member Functions
	RadarPulseMap (Camera *parent, const double etStart, const double lineRate)
	Construct a detector map for line scan cameras.

virtual	~RadarPulseMap ()
	Destructor.

void	SetStartTime (const double etStart)
	Reset the starting ephemeris time.

void	SetLineRate (const double lineRate)
	Reset the line rate.

double	LineRate () const
	Return the time in seconds between scan lines.

virtual bool	SetParent (const double sample, const double line)
	Compute radar (sample/time)from a alpha image coordinate.

virtual bool	SetDetector (const double sample, const double line)
	Compute alpha position from a detector coordinate.

void	SetXAxisTimeDependent (bool on)
	Set the time dependent axis, if never called y is the time dependent axis.

virtual bool	SetParent (const double sample, const double line, const double deltaT)
	Compute detector position from a parent image coordinate.

double	AdjustedStartingSample () const
	Return the starting detector sample adjusted for summation.

double	AdjustedStartingLine () const
	Return the starting detector line adjusted for summation.

double	ParentSample () const
	Return parent sample.

double	ParentLine () const
	Return parent line.

double	DetectorSample () const
	Return detector sample.

double	DetectorLine () const
	Return detector line.

void	SetStartingDetectorSample (const double sample)
	Set the starting detector sample.

void	SetStartingDetectorLine (const double line)
	Set the starting detector line.

void	SetDetectorSampleSumming (const double summing)
	Set sample summing mode.

void	SetDetectorLineSumming (const double summing)
	Set line summing mode.

virtual double	SampleScaleFactor () const
	Return scaling factor for computing sample resolution.

virtual double	LineScaleFactor () const
	Return scaling factor for computing line resolution.

virtual double	exposureDuration (const double sample, const double line, const int band) const
	This virtual method is for returning the exposure duration of a given pixel.

Protected Attributes
Camera *	p_camera
	Pointer to the camera.

double	p_parentSample
	The parent sample calculated from the detector.

double	p_parentLine
	The parent line calculated from the detector.

double	p_detectorLine
	Detector coordinate line value.

double	p_detectorSample
	Detector coordinate sample value.

double	p_detectorSampleSumming
	The scaling factor for computing sample resolution.

double	p_detectorLineSumming
	The scaling factor for computing line resolution.

double	p_startingDetectorSample
	Detector start coordinate sample value.

double	p_startingDetectorLine
	Detector start coordinate line value.

double	p_ss
	Start sample.

double	p_sl
	Start line.

Detailed Description

Convert between alpha image coordinates and radar sample, time coordinates.

This class is used to convert between alpha coordinates (sample/line) and radar pulse coordinates (sample,time) for a radar instrument.

See also: Camera

Author: 2008-06-16 Jeff Anderson

Constructor & Destructor Documentation

◆ RadarPulseMap()

Isis::RadarPulseMap::RadarPulseMap	(	Camera *	parent,
		const double	etStart,
		const double	lineRate )

inline

Construct a detector map for line scan cameras.

Parameters

parent	The parent camera model for the detector map
etStart	starting ephemeris time in seconds at the top of the first line
lineRate	the time in seconds between lines

References Isis::CameraDetectorMap::CameraDetectorMap().

◆ ~RadarPulseMap()

virtual Isis::RadarPulseMap::~RadarPulseMap ( )

inlinevirtual

Destructor.

Member Function Documentation

◆ AdjustedStartingLine()

double Isis::CameraDetectorMap::AdjustedStartingLine ( ) const

inherited

Return the starting detector line adjusted for summation.

Returns: (double) The starting line

References p_sl.

◆ AdjustedStartingSample()

double Isis::CameraDetectorMap::AdjustedStartingSample ( ) const

inherited

Return the starting detector sample adjusted for summation.

Returns: (double) The starting sample

References p_ss.

◆ DetectorLine()

double Isis::CameraDetectorMap::DetectorLine ( ) const

inherited

Return detector line.

Returns: (double) The detector line

References p_detectorLine.

◆ DetectorSample()

double Isis::CameraDetectorMap::DetectorSample ( ) const

inherited

Return detector sample.

Returns: (double) The detector sample

References p_detectorSample.

◆ exposureDuration()

double Isis::CameraDetectorMap::exposureDuration	(	const double	sample,
		const double	line,
		const int	band ) const

virtualinherited

This virtual method is for returning the exposure duration of a given pixel.

For framing cameras, exposure duration is not available so it throws an error.

Parameters

sample	The sample of the desired pixel.
line	The line of the desired pixel.
band	The band of the desired pixel.

Returns: double The exposure duration for the desired pixel in seconds.

Exceptions

IException::Programmer "Exposure duration is only available for LineScan, VariableLineScan, and PushFrame Cameras."

Reimplemented in Isis::LineScanCameraDetectorMap, Isis::NirsDetectorMap, Isis::PushFrameCameraDetectorMap, and Isis::VariableLineScanCameraDetectorMap.

References _FILEINFO_, and Isis::IException::Programmer.

◆ LineRate()

double Isis::RadarPulseMap::LineRate ( ) const

inlinevirtual

Return the time in seconds between scan lines.

Reimplemented from Isis::CameraDetectorMap.

◆ LineScaleFactor()

double Isis::CameraDetectorMap::LineScaleFactor ( ) const

virtualinherited

Return scaling factor for computing line resolution.

Returns: (double) The scaling factor for line resolution

References p_detectorLineSumming.

Referenced by Isis::ThemisIrCamera::SetBand(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetParent(), and Isis::PushFrameCameraDetectorMap::TotalFramelets().

◆ ParentLine()

double Isis::CameraDetectorMap::ParentLine ( ) const

inherited

Return parent line.

Returns: (double) The parent line

References p_parentLine.

◆ ParentSample()

double Isis::CameraDetectorMap::ParentSample ( ) const

inherited

Return parent sample.

Returns: (double) The parent sample

References p_parentSample.

◆ SampleScaleFactor()

double Isis::CameraDetectorMap::SampleScaleFactor ( ) const

virtualinherited

Return scaling factor for computing sample resolution.

Returns: (double) The scaling factor for sample resolution

References p_detectorSampleSumming.

◆ SetDetector()

bool Isis::RadarPulseMap::SetDetector	(	const double	sample,
		const double	line )

virtual

Compute alpha position from a detector coordinate.

This method will compute a alpha sample given a detector coordinate. The alpha line will be computed using the the time in the parent camera

Parameters

sample	Sample number in the detector
line	Line number in the detector (ignored)

Returns: conversion successful

Reimplemented from Isis::CameraDetectorMap.

References Isis::CameraDetectorMap::p_camera, Isis::CameraDetectorMap::p_parentLine, and Isis::CameraDetectorMap::SetDetector().

◆ SetDetectorLineSumming()

void Isis::CameraDetectorMap::SetDetectorLineSumming ( const double summing )

inlineinherited

Set line summing mode.

Use this method to specify if detector lines are summed/averaged. That is, one image lines represents the average of N detectors. If not set the default is 1.

Parameters

summing Line summing mode

References p_detectorLineSumming.

Referenced by Isis::CrismCamera::CrismCamera(), Isis::DawnFcCamera::DawnFcCamera(), Isis::HayabusaAmicaCamera::HayabusaAmicaCamera(), Isis::HiriseCamera::HiriseCamera(), Isis::Hyb2OncCamera::Hyb2OncCamera(), Isis::IssNACamera::IssNACamera(), Isis::IssWACamera::IssWACamera(), Isis::JunoCamera::JunoCamera(), Isis::LroWideAngleCamera::LroWideAngleCamera(), Isis::MarciCamera::MarciCamera(), Isis::MdisCamera::MdisCamera(), Isis::MexHrscSrcCamera::MexHrscSrcCamera(), Isis::MocNarrowAngleCamera::MocNarrowAngleCamera(), Isis::MocWideAngleCamera::MocWideAngleCamera(), Isis::NewHorizonsLorriCamera::NewHorizonsLorriCamera(), Isis::NewHorizonsMvicFrameCamera::NewHorizonsMvicFrameCamera(), Isis::OsirisRexTagcamsCamera::OsirisRexTagcamsCamera(), Isis::RosettaOsirisCamera::RosettaOsirisCamera(), Isis::SsiCamera::SsiCamera(), Isis::TgoCassisCamera::TgoCassisCamera(), Isis::ThemisIrCamera::ThemisIrCamera(), and Isis::ThemisVisCamera::ThemisVisCamera().

◆ SetDetectorSampleSumming()

void Isis::CameraDetectorMap::SetDetectorSampleSumming ( const double summing )

inlineinherited

Set sample summing mode.

Use this method to specify if detector samples are summed/averaged. That is, one image sample represents the average of N detectors. If not set the default is 1.

Parameters

summing Sample summing mode

References p_detectorSampleSumming.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera(), Isis::Chandrayaan1M3Camera::Chandrayaan1M3Camera(), Isis::CrismCamera::CrismCamera(), Isis::CTXCamera::CTXCamera(), Isis::DawnFcCamera::DawnFcCamera(), Isis::DawnVirCamera::DawnVirCamera(), Isis::HayabusaAmicaCamera::HayabusaAmicaCamera(), Isis::HiriseCamera::HiriseCamera(), Isis::HrscCamera::HrscCamera(), Isis::Hyb2OncCamera::Hyb2OncCamera(), Isis::IssNACamera::IssNACamera(), Isis::IssWACamera::IssWACamera(), Isis::JunoCamera::JunoCamera(), Isis::KaguyaMiCamera::KaguyaMiCamera(), Isis::LroNarrowAngleCamera::LroNarrowAngleCamera(), Isis::LroWideAngleCamera::LroWideAngleCamera(), Isis::MarciCamera::MarciCamera(), Isis::MdisCamera::MdisCamera(), Isis::MexHrscSrcCamera::MexHrscSrcCamera(), Isis::MocNarrowAngleCamera::MocNarrowAngleCamera(), Isis::MocWideAngleCamera::MocWideAngleCamera(), Isis::NewHorizonsLorriCamera::NewHorizonsLorriCamera(), Isis::NewHorizonsMvicFrameCamera::NewHorizonsMvicFrameCamera(), Isis::OsirisRexTagcamsCamera::OsirisRexTagcamsCamera(), Isis::RosettaOsirisCamera::RosettaOsirisCamera(), Isis::RosettaVirtisCamera::RosettaVirtisCamera(), Isis::SsiCamera::SsiCamera(), Isis::TgoCassisCamera::TgoCassisCamera(), Isis::ThemisIrCamera::ThemisIrCamera(), and Isis::ThemisVisCamera::ThemisVisCamera().

◆ SetLineRate()

void Isis::RadarPulseMap::SetLineRate ( const double lineRate )

inline

Reset the line rate.

Use this method to reset the time between lines. Usually this will not need to be done unless the rate changes between bands.

Parameters

lineRate the time in seconds between lines

◆ SetParent() [1/2]

bool Isis::CameraDetectorMap::SetParent	(	const double	sample,
		const double	line,
		const double	deltaT )

virtualinherited

Compute detector position from a parent image coordinate.

This method will compute the detector position from the parent line/sample coordinate and an offset from the currently set time in seconds. If the time has not already been set, the input offset is not applied.

Parameters

sample	Sample number in the parent image
line	Line number in the parent image
deltaT	option time offset from center of exposure in seconds

Returns: conversion successful

Reimplemented in Isis::LineScanCameraDetectorMap, Isis::PushFrameCameraDetectorMap, Isis::RollingShutterCameraDetectorMap, and Isis::VariableLineScanCameraDetectorMap.

References p_camera, p_detectorLine, p_detectorLineSumming, p_detectorSample, p_detectorSampleSumming, p_parentLine, p_parentSample, p_sl, and p_ss.

◆ SetParent() [2/2]

bool Isis::RadarPulseMap::SetParent	(	const double	sample,
		const double	line )

virtual

Compute radar (sample/time)from a alpha image coordinate.

This method will compute the radar position from the alpha line/sample coordinate. The alpha line will be used to set the appropriate time in the parent camera.

Parameters

sample	Sample number in the alpha image
line	Line number in the alpha image

Returns: conversion successful

Reimplemented from Isis::CameraDetectorMap.

References Isis::CameraDetectorMap::p_camera, Isis::CameraDetectorMap::p_detectorLine, and Isis::CameraDetectorMap::SetParent().

◆ SetStartingDetectorLine()

void Isis::CameraDetectorMap::SetStartingDetectorLine ( const double line )

inlineinherited

Set the starting detector line.

Use this method to specify the starting detector that represents the first image line in the cube. If not set the default is 1.

Parameters

line	Starting detector line

References p_startingDetectorLine.

Referenced by Isis::HayabusaAmicaCamera::HayabusaAmicaCamera(), Isis::HayabusaNirsCamera::HayabusaNirsCamera(), Isis::JunoCamera::JunoCamera(), Isis::MdisCamera::MdisCamera(), and Isis::RosettaOsirisCamera::RosettaOsirisCamera().

◆ SetStartingDetectorSample()

void Isis::CameraDetectorMap::SetStartingDetectorSample ( const double sample )

inlineinherited

Set the starting detector sample.

Use this method to specify the starting detector that represents the first image sample in the cube. If not set the default is 1.

Parameters

sample Starting detector sample

References p_startingDetectorSample.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera(), Isis::CTXCamera::CTXCamera(), Isis::HayabusaAmicaCamera::HayabusaAmicaCamera(), Isis::HayabusaNirsCamera::HayabusaNirsCamera(), Isis::HiriseCamera::HiriseCamera(), Isis::KaguyaMiCamera::KaguyaMiCamera(), Isis::KaguyaTcCamera::KaguyaTcCamera(), Isis::LroNarrowAngleCamera::LroNarrowAngleCamera(), Isis::LroWideAngleCamera::LroWideAngleCamera(), Isis::MdisCamera::MdisCamera(), Isis::MocNarrowAngleCamera::MocNarrowAngleCamera(), Isis::MocWideAngleCamera::MocWideAngleCamera(), and Isis::RosettaOsirisCamera::RosettaOsirisCamera().

◆ SetStartTime()

void Isis::RadarPulseMap::SetStartTime ( const double etStart )

inline

Reset the starting ephemeris time.

Use this method to reset the starting time of the top edge of the first line in the alpha image. That is the time, prior to cropping, scaling, or padding. Usually this will not need to be done unless the time changes between bands.

Parameters

etStart starting ephemeris time in seconds

◆ SetXAxisTimeDependent()

void Isis::RadarPulseMap::SetXAxisTimeDependent ( bool on )

inline

Set the time dependent axis, if never called y is the time dependent axis.

Member Data Documentation

◆ p_camera

Camera* Isis::CameraDetectorMap::p_camera

protectedinherited

Pointer to the camera.

Referenced by CameraDetectorMap(), Isis::ApolloPanoramicDetectorMap::SetDetector(), Isis::LineScanCameraDetectorMap::SetDetector(), Isis::RadarPulseMap::SetDetector(), Isis::VariableLineScanCameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetFramelet(), Isis::ApolloPanoramicDetectorMap::SetParent(), SetParent(), Isis::LineScanCameraDetectorMap::SetParent(), Isis::MocWideAngleDetectorMap::SetParent(), Isis::RadarPulseMap::SetParent(), Isis::RollingShutterCameraDetectorMap::SetParent(), Isis::VariableLineScanCameraDetectorMap::SetParent(), and Isis::PushFrameCameraDetectorMap::TotalFramelets().

◆ p_detectorLine

double Isis::CameraDetectorMap::p_detectorLine

protectedinherited

Detector coordinate line value.

Referenced by DetectorLine(), Isis::ApolloPanoramicDetectorMap::SetDetector(), SetDetector(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), SetParent(), Isis::LineScanCameraDetectorMap::SetParent(), Isis::PushFrameCameraDetectorMap::SetParent(), Isis::RadarPulseMap::SetParent(), Isis::RollingShutterCameraDetectorMap::SetParent(), and Isis::VariableLineScanCameraDetectorMap::SetParent().

◆ p_detectorLineSumming

double Isis::CameraDetectorMap::p_detectorLineSumming

protectedinherited

The scaling factor for computing line resolution.

Referenced by CameraDetectorMap(), LineScaleFactor(), SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), SetDetectorLineSumming(), SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_detectorSample

double Isis::CameraDetectorMap::p_detectorSample

protectedinherited

Detector coordinate sample value.

Referenced by DetectorSample(), Isis::ApolloPanoramicDetectorMap::SetDetector(), SetDetector(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), SetParent(), Isis::MocWideAngleDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_detectorSampleSumming

double Isis::CameraDetectorMap::p_detectorSampleSumming

protectedinherited

The scaling factor for computing sample resolution.

Referenced by CameraDetectorMap(), SampleScaleFactor(), SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), SetDetectorSampleSumming(), SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_parentLine

double Isis::CameraDetectorMap::p_parentLine

protectedinherited

The parent line calculated from the detector.

Referenced by ParentLine(), Isis::ApolloPanoramicDetectorMap::SetDetector(), SetDetector(), Isis::LineScanCameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::RadarPulseMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::VariableLineScanCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), SetParent(), Isis::PushFrameCameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_parentSample

double Isis::CameraDetectorMap::p_parentSample

protectedinherited

The parent sample calculated from the detector.

Referenced by ParentSample(), Isis::ApolloPanoramicDetectorMap::SetDetector(), SetDetector(), Isis::MocWideAngleDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::ApolloPanoramicDetectorMap::SetParent(), SetParent(), Isis::PushFrameCameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_sl

double Isis::CameraDetectorMap::p_sl

protectedinherited

Start line.

Referenced by AdjustedStartingLine(), SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_ss

double Isis::CameraDetectorMap::p_ss

protectedinherited

Start sample.

Referenced by AdjustedStartingSample(), SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_startingDetectorLine

double Isis::CameraDetectorMap::p_startingDetectorLine

protectedinherited

Detector start coordinate line value.

Referenced by CameraDetectorMap(), and SetStartingDetectorLine().

◆ p_startingDetectorSample

double Isis::CameraDetectorMap::p_startingDetectorSample

protectedinherited

Detector start coordinate sample value.

Referenced by CameraDetectorMap(), and SetStartingDetectorSample().

The documentation for this class was generated from the following files:

/Users/astamile/ISIS3/isis/src/base/objs/RadarPulseMap/RadarPulseMap.h
/Users/astamile/ISIS3/isis/src/base/objs/RadarPulseMap/RadarPulseMap.cpp

Public Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ RadarPulseMap()

◆ ~RadarPulseMap()

Member Function Documentation

◆ AdjustedStartingLine()

◆ AdjustedStartingSample()

◆ DetectorLine()

◆ DetectorSample()

◆ exposureDuration()

◆ LineRate()

◆ LineScaleFactor()

◆ ParentLine()

◆ ParentSample()

◆ SampleScaleFactor()

◆ SetDetector()

◆ SetDetectorLineSumming()

◆ SetDetectorSampleSumming()

◆ SetLineRate()

◆ SetParent() [1/2]

◆ SetParent() [2/2]

◆ SetStartingDetectorLine()

◆ SetStartingDetectorSample()

◆ SetStartTime()

◆ SetXAxisTimeDependent()

Member Data Documentation

◆ p_camera

◆ p_detectorLine

◆ p_detectorLineSumming

◆ p_detectorSample

◆ p_detectorSampleSumming

◆ p_parentLine

◆ p_parentSample

◆ p_sl

◆ p_ss

◆ p_startingDetectorLine

◆ p_startingDetectorSample
