Isis::ControlMeasureEditWidget Class Reference

Point Editor Widget. More...

#include <ControlMeasureEditWidget.h>

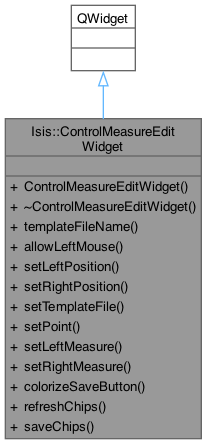

Inheritance diagram for Isis::ControlMeasureEditWidget:

Collaboration diagram for Isis::ControlMeasureEditWidget:

Public Slots
bool	setTemplateFile (QString)
	Allows user to choose a new template file by opening a window from which to select a filename.
void	setPoint (ControlPoint *editPoint, SerialNumberList *snList)
	Set the Control Point for this widget.
void	setLeftMeasure (ControlMeasure *leftMeasure, Cube *leftCube, QString pointId)
	Set the measure displayed in the left ChipViewport.
void	setRightMeasure (ControlMeasure *rightMeasure, Cube *rightCube, QString pointId)
	Set the measure displayed in the right ChipViewport.
void	colorizeSaveButton ()
	Turn "Save Measure" button text to red.
void	refreshChips ()
void	saveChips ()
	Slot to save registration chips to files and fire off qview.

Signals
void	updateLeftView (double sample, double line)
void	updateRightView (double sample, double line)
void	measureSaved ()
void	newControlNetwork (ControlNet *)
void	setTemplateFailed (QString)
void	stretchChipViewport (Stretch *, CubeViewport *)

Public Member Functions
	ControlMeasureEditWidget (QWidget *parent=0, bool allowLeftMouse=false, bool useGeometry=true)
	Constructs a ControlMeasureEditWidget widget.
	~ControlMeasureEditWidget ()
	Destructor.
QString	templateFileName ()
	Returns the template filename used for auto-registration.
void	allowLeftMouse (bool allowMouse)
	Set the option that allows mouse movements in the left ChipViewport.
void	setLeftPosition (double sample, double line)
	Set the tack position of the measure in the left ChipViewport.
void	setRightPosition (double sample, double line)
	Set the tack position of the measure in the right ChipViewport.

Detailed Description

Point Editor Widget.

Author

2008-09-09 Tracie Sucharski

Constructor & Destructor Documentation

ControlMeasureEditWidget()

Isis::ControlMeasureEditWidget::ControlMeasureEditWidget	(	QWidget *	parent = 0,
		bool	allowLeftMouse = false,
		bool	useGeometry = true )

Constructs a ControlMeasureEditWidget widget.

Parameters

parent[in]	Parent of widget
allowLeftMouse[in]	Allow/Disallow mouse events on Left ChipViewport
useGeometry[in]	Allow/Disallow geometry and rotation on right ChipViewport

Author

Tracie Sucharski

References allowLeftMouse().

~ControlMeasureEditWidget()

Isis::ControlMeasureEditWidget::~ControlMeasureEditWidget

(

)

Destructor.

Member Function Documentation

allowLeftMouse()

void Isis::ControlMeasureEditWidget::allowLeftMouse

(

bool

allowMouse

)

Set the option that allows mouse movements in the left ChipViewport.

Parameters

allowMouse

Whether or not to allow mouse event on left chip viewport

Author

Tracie Sucharski

Referenced by ControlMeasureEditWidget().

colorizeSaveButton

void Isis::ControlMeasureEditWidget::colorizeSaveButton ( )

slot

Turn "Save Measure" button text to red.

Author

2011-06-14 Tracie Sucharski

measureSaved

void Isis::ControlMeasureEditWidget::measureSaved ( )

signal

newControlNetwork

void Isis::ControlMeasureEditWidget::newControlNetwork ( ControlNet * )

signal

refreshChips

void Isis::ControlMeasureEditWidget::refreshChips ( )

slot

saveChips

void Isis::ControlMeasureEditWidget::saveChips ( )

slot

Slot to save registration chips to files and fire off qview.

Author

2009-03-18 Tracie Sucharski

References Isis::ProgramLauncher::RunSystemCommand(), and Isis::toString().

setLeftMeasure

void Isis::ControlMeasureEditWidget::setLeftMeasure ( ControlMeasure * leftMeasure, Cube * leftCube, QString pointId )

slot

Set the measure displayed in the left ChipViewport.

Parameters

leftMeasure[in]	Measure displayed in left ChipViewport
leftCube[in]	Cube of measure displayed in left ChipViewport
pointId[in]	Control point id associated with the left measure

Author

Tracie Sucharski

setLeftPosition()

void Isis::ControlMeasureEditWidget::setLeftPosition	(	double	sample,
		double	line )

Set the tack position of the measure in the left ChipViewport.

Parameters

sample[in]	Sample of the tack position for the right ChipViewport
line[in]	Line of the tack position for the left ChipViewport

References updateLeftView().

setPoint

void Isis::ControlMeasureEditWidget::setPoint ( ControlPoint * editPoint, SerialNumberList * snList )

slot

Set the Control Point for this widget.

Parameters

editPoint[in]	ControlPoint for this widget
snList[in]	SerialNumberList associated with the control net containing the ControlPoint

setRightMeasure

void Isis::ControlMeasureEditWidget::setRightMeasure ( ControlMeasure * rightMeasure, Cube * rightCube, QString pointId )

slot

Set the measure displayed in the right ChipViewport.

Parameters

rightMeasure[in]	Measure displayed in right ChipViewport
rightCube[in]	Cube of measure displayed in right ChipViewport
pointId[in]	Control point id associated with the measure

Author

Tracie Sucharski

References _FILEINFO_, Isis::IException::toString(), and Isis::IException::User.

setRightPosition()

void Isis::ControlMeasureEditWidget::setRightPosition	(	double	sample,
		double	line )

Set the tack position of the measure in the right ChipViewport.

Parameters

sample[in]	Sample of the tack position for the right ChipViewport
line[in]	Line of the tack position for the left ChipViewport

References updateRightView().

setTemplateFailed

void Isis::ControlMeasureEditWidget::setTemplateFailed ( QString )

signal

Referenced by setTemplateFile().

setTemplateFile

bool Isis::ControlMeasureEditWidget::setTemplateFile ( QString fn )

slot

Allows user to choose a new template file by opening a window from which to select a filename.

This file is then registered and set as the new template.

Parameters

fn	Template filename

Author

Tracie Sucharski

References _FILEINFO_, Isis::AutoRegFactory::Create(), Isis::IException::Io, setTemplateFailed(), and Isis::IException::toString().

stretchChipViewport

void Isis::ControlMeasureEditWidget::stretchChipViewport ( Stretch * , CubeViewport *  )

signal

templateFileName()

QString Isis::ControlMeasureEditWidget::templateFileName ( )

inline

Returns the template filename used for auto-registration.

Returns

QString Template filename

updateLeftView

void Isis::ControlMeasureEditWidget::updateLeftView ( double sample, double line )

signal

Referenced by setLeftPosition().

updateRightView

void Isis::ControlMeasureEditWidget::updateRightView ( double sample, double line )

signal

Referenced by setRightPosition().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/qisis/objs/ControlMeasureEditWidget/ControlMeasureEditWidget.h
• /Users/astamile/ISIS3/isis/src/qisis/objs/ControlMeasureEditWidget/ControlMeasureEditWidget.cpp
