Isis::Template Class Reference

#include <Template.h>

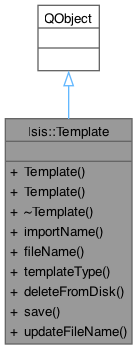

Inheritance diagram for Isis::Template:

Collaboration diagram for Isis::Template:

Public Slots
void	updateFileName (Project *project)
	Change the file name for this template to be where it now is with the given project.

Public Member Functions
	Template (QString fileName, QString templateType, QString importName, QObject *parent=0)
	Create a Template from template file's name.
	Template (FileName templateFolder, QXmlStreamReader *xmlReader, QObject *parent=0)
	Construct this template from XML.
	~Template ()
	Destroys Template object.
QString	importName () const
	Get the name of the TemplateList this file was imported under.
QString	fileName () const
	Get the file name that this Template represents.
QString	templateType () const
	Get the type of template.
void	deleteFromDisk ()
	Delete the template from disk.
void	save (QXmlStreamWriter &stream, const Project *project, FileName newProjectRoot) const
	Method to write this Template object's member data to an XML stream.

Detailed Description

Author

2017-11-01 Christopher Combs

Constructor & Destructor Documentation

Template() [1/2]

Isis::Template::Template ( QString fileName, QString templateType, QString importName, QObject * parent = 0 )

explicit

Create a Template from template file's name.

Parameters

fileName	The name of the template file on disk
templateType	The type of template being imported (Options are maps or registrations)
importName	The name of the TemplateList this Template is imported in
parent	The Qt-relationship parent

References fileName(), importName(), and templateType().

Template() [2/2]

Isis::Template::Template	(	FileName	templateFolder,
		QXmlStreamReader *	xmlReader,
		QObject *	parent = 0 )

Construct this template from XML.

Parameters

templateFolder	Location of template xml
xmlReader	An XML reader that's up to an <template> tag.
parent	The Qt-relationship parent

~Template()

Isis::Template::~Template

(

)

Destroys Template object.

Member Function Documentation

deleteFromDisk()

void Isis::Template::deleteFromDisk

(

)

Delete the template from disk.

Exceptions

IException::Io

"Could not remove file."

References _FILEINFO_, and Isis::IException::Io.

Referenced by Isis::TemplateList::deleteFromDisk().

fileName()

QString Isis::Template::fileName

(

)

const

Get the file name that this Template represents.

Returns

QString A string containing the path to the template file associated.

Referenced by Isis::Directory::addTemplateEditorView(), Isis::TemplateEditViewWorkOrder::isExecutable(), Isis::TemplateList::save(), Isis::ProjectItem::setTemplate(), Isis::TemplateEditViewWorkOrder::setupExecution(), and Template().

importName()

QString Isis::Template::importName

(

)

const

Get the name of the TemplateList this file was imported under.

Returns

QString A string containing TemplateList's name.

Referenced by Template().

save()

void Isis::Template::save	(	QXmlStreamWriter &	stream,
		const Project *	project,
		FileName	newProjectRoot ) const

Method to write this Template object's member data to an XML stream.

Parameters

stream	The stream to which the Template will be saved.
project	The Project to which this Template will be added.
newProjectRoot	The location of the project root directory.

Referenced by Isis::TemplateList::save().

templateType()

QString Isis::Template::templateType

(

)

const

Get the type of template.

Returns

QString The name of the directory to find this file under "templates".

Referenced by Template().

updateFileName

void Isis::Template::updateFileName ( Project * project )

slot

Change the file name for this template to be where it now is with the given project.

Parameters

project

The project that this file is stored in.

References Isis::FileName::name(), and Isis::Project::templateRoot().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/qisis/objs/Template/Template.h
• /Users/astamile/ISIS3/isis/src/qisis/objs/Template/Template.cpp
