Isis::Mixed Class Reference

Mixed albedo/topo normalization without atmosphere. More...

#include <Mixed.h>

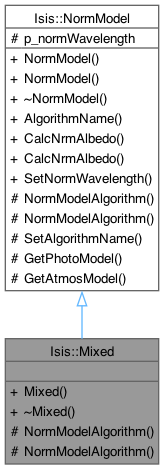

Inheritance diagram for Isis::Mixed:

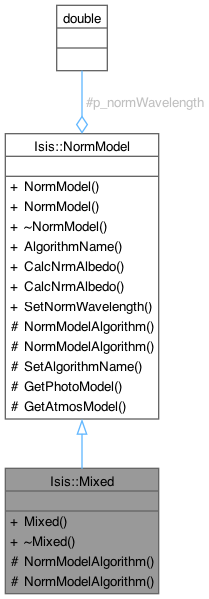

Collaboration diagram for Isis::Mixed:

Public Member Functions
	Mixed (Pvl &pvl, PhotoModel &pmodel)
virtual	~Mixed ()
std::string	AlgorithmName () const
	Return normalization algorithm name.
void	CalcNrmAlbedo (double pha, double inc, double ema, double dn, double &albedo, double &mult, double &base)
	Calculate the albedo normalization.
void	CalcNrmAlbedo (double pha, double inc, double ema, double deminc, double demema, double dn, double &albedo, double &mult, double &base)
	Calculate the normalization albedo using photometric angle information.
virtual void	SetNormWavelength (double wavelength)
	Set the wavelength parameter.

Protected Member Functions
virtual void	NormModelAlgorithm (double pha, double inc, double ema, double dn, double &albedo, double &mult, double &base)
virtual void	NormModelAlgorithm (double pha, double inc, double ema, double deminc, double demema, double dn, double &albedo, double &mult, double &base)
void	SetAlgorithmName (std::string name)
PhotoModel *	GetPhotoModel ()
AtmosModel *	GetAtmosModel ()

Protected Attributes
double	p_normWavelength

Detailed Description

Mixed albedo/topo normalization without atmosphere.

This mode will do albedo normalization over most of the planet but near the terminator it will normalize topographic contrast to avoid the "seams" we are currently getting with the plain albedo normalization. The two effects will be joined seamlessly. In addition to the parameters for no-atmosphere albedo normaliza- tion (i.e., the photometric parameters and the choice of angles for normal albedo calculation) this mode needs two more parameters. INCMAT is the incidence angle at which the RMS contrast from al- bedo matches the RMS contrast from topography. (Could input a full 3-angle geometry at which the contrasts are equal but since the user is probably going to find this parameter by trial and er- ror it's easier to specify only incidence and use emission=0, phase=incidence for this second reference state.) ALBEDO, the av- erage normal albedo, is also needed.

Author

1998-12-21 Randy Kirk

Constructor & Destructor Documentation

Mixed()

Isis::Mixed::Mixed	(	Pvl &	pvl,
		PhotoModel &	pmodel )

References _FILEINFO_, Isis::PhotoModel::CalcSurfAlbedo(), Isis::PvlObject::findObject(), Isis::NormModel::GetPhotoModel(), Isis::PvlContainer::hasKeyword(), Isis::NormModel::NormModel(), Isis::PhotoModel::PhtTopder(), Isis::PhotoModel::SetStandardConditions(), Isis::PvlObject::Traverse, and Isis::IException::Unknown.

~Mixed()

virtual Isis::Mixed::~Mixed ( )

inlinevirtual

Member Function Documentation

AlgorithmName()

std::string Isis::NormModel::AlgorithmName ( ) const

inlineinherited

Return normalization algorithm name.

CalcNrmAlbedo() [1/2]

void Isis::NormModel::CalcNrmAlbedo ( double pha, double inc, double ema, double deminc, double demema, double dn, double & albedo, double & mult, double & base )

inherited

Calculate the normalization albedo using photometric angle information.

Parameters

pha	input phase angle
inc	input incidence angle for ellipsoid
ema	input emission angle for ellipsoid
deminc	input incidence angle for dem
demema	input emission angle for dem
dn	input albedo value

References NormModelAlgorithm().

CalcNrmAlbedo() [2/2]

void Isis::NormModel::CalcNrmAlbedo ( double pha, double inc, double ema, double dn, double & albedo, double & mult, double & base )

inherited

Calculate the albedo normalization.

Calculate the normalization albedo using photometric angle information.

Parameters

pha	input phase angle
inc	input incidence angle
ema	input emission angle
dn	input albedo value

References NormModelAlgorithm().

GetAtmosModel()

AtmosModel * Isis::NormModel::GetAtmosModel ( )

inlineprotectedinherited

Referenced by Isis::AlbedoAtm::AlbedoAtm(), Isis::AlbedoAtm::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), and Isis::TopoAtm::TopoAtm().

GetPhotoModel()

PhotoModel * Isis::NormModel::GetPhotoModel ( )

inlineprotectedinherited

Referenced by Isis::Albedo::Albedo(), Isis::AlbedoAtm::AlbedoAtm(), Isis::Mixed::Mixed(), Isis::Albedo::NormModelAlgorithm(), Isis::AlbedoAtm::NormModelAlgorithm(), Isis::Mixed::NormModelAlgorithm(), Isis::MoonAlbedo::NormModelAlgorithm(), Isis::NoNormalization::NormModelAlgorithm(), Isis::Shade::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), and Isis::TopoAtm::TopoAtm().

NormModelAlgorithm() [1/2]

void Isis::Mixed::NormModelAlgorithm ( double pha, double inc, double ema, double deminc, double demema, double dn, double & albedo, double & mult, double & base )

protectedvirtual

Implements Isis::NormModel.

References Isis::PhotoModel::CalcSurfAlbedo(), Isis::NormModel::GetPhotoModel(), Isis::NULL8, and Isis::PhotoModel::PhtTopder().

NormModelAlgorithm() [2/2]

virtual void Isis::Mixed::NormModelAlgorithm ( double pha, double inc, double ema, double dn, double & albedo, double & mult, double & base )

inlineprotectedvirtual

Implements Isis::NormModel.

SetAlgorithmName()

void Isis::NormModel::SetAlgorithmName ( std::string name )

inlineprotectedinherited

SetNormWavelength()

void Isis::NormModel::SetNormWavelength ( double wavelength )

virtualinherited

Set the wavelength parameter.

This value is obtained from the BandBin Center keyword of the image. This must be set by the application.

References p_normWavelength.

Member Data Documentation

p_normWavelength

double Isis::NormModel::p_normWavelength

protectedinherited

Referenced by Isis::MoonAlbedo::MoonAlbedo(), NormModel(), NormModel(), and SetNormWavelength().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/base/objs/Mixed/Mixed.h
• /Users/astamile/ISIS3/isis/src/base/objs/Mixed/Mixed.cpp
