Convert between parent image (aka encoder aka machine) coordinates and detector coordinates. More...

#include <ApolloPanoramicDetectorMap.h>

Inheritance diagram for Isis::ApolloPanoramicDetectorMap:

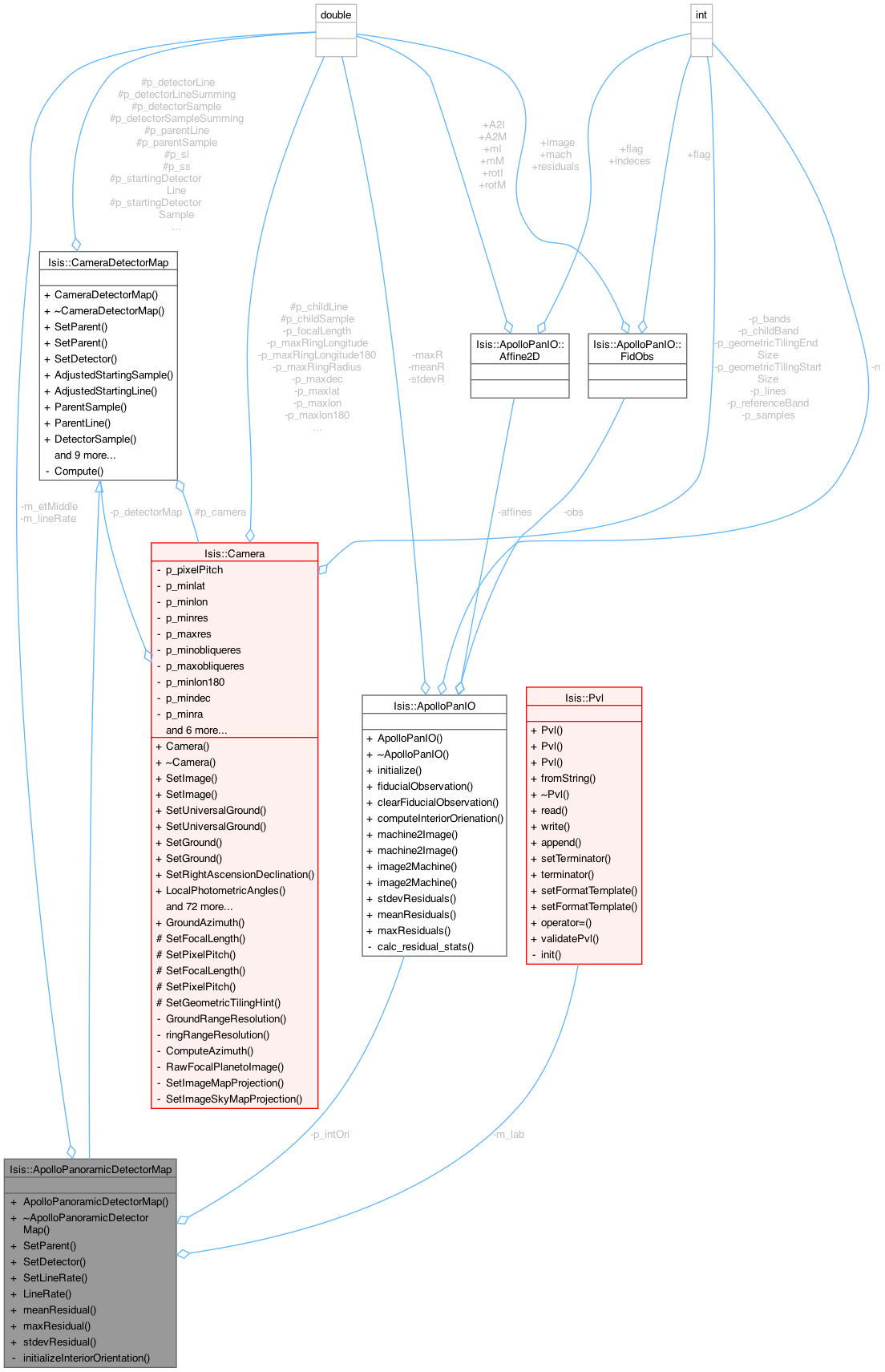

Collaboration diagram for Isis::ApolloPanoramicDetectorMap:

Public Member Functions
	ApolloPanoramicDetectorMap (Camera parent, double etMiddle, double lineRate, Pvl lab)
	Construct a detector map for line scan cameras.

virtual	~ApolloPanoramicDetectorMap ()
	Destroys ApolloPanoramicDetectorMap object.

virtual bool	SetParent (const double sample, const double line)
	This method sets dector sample line coordinates from given cube coordinates.

virtual bool	SetDetector (const double sample, const double line)
	This method sets cube sample line coordinates from given Dector coordinates.

void	SetLineRate (const double lineRate)
	Reset the line rate.

double	LineRate () const
	Return the time in seconds between scan lines.

double	meanResidual ()
	Mean (average) of interior orientation residual vector lengths, accesor.

double	maxResidual ()
	Max interior orientation residual vector length, accesor.

double	stdevResidual ()
	Standard deviation of interior orientation residual vector lengths, accesor.

virtual bool	SetParent (const double sample, const double line, const double deltaT)
	Compute detector position from a parent image coordinate.

double	AdjustedStartingSample () const
	Return the starting detector sample adjusted for summation.

double	AdjustedStartingLine () const
	Return the starting detector line adjusted for summation.

double	ParentSample () const
	Return parent sample.

double	ParentLine () const
	Return parent line.

double	DetectorSample () const
	Return detector sample.

double	DetectorLine () const
	Return detector line.

void	SetStartingDetectorSample (const double sample)
	Set the starting detector sample.

void	SetStartingDetectorLine (const double line)
	Set the starting detector line.

void	SetDetectorSampleSumming (const double summing)
	Set sample summing mode.

void	SetDetectorLineSumming (const double summing)
	Set line summing mode.

virtual double	SampleScaleFactor () const
	Return scaling factor for computing sample resolution.

virtual double	LineScaleFactor () const
	Return scaling factor for computing line resolution.

virtual double	exposureDuration (const double sample, const double line, const int band) const
	This virtual method is for returning the exposure duration of a given pixel.

Protected Attributes
Camera *	p_camera
	Pointer to the camera.

double	p_parentSample
	The parent sample calculated from the detector.

double	p_parentLine
	The parent line calculated from the detector.

double	p_detectorLine
	Detector coordinate line value.

double	p_detectorSample
	Detector coordinate sample value.

double	p_detectorSampleSumming
	The scaling factor for computing sample resolution.

double	p_detectorLineSumming
	The scaling factor for computing line resolution.

double	p_startingDetectorSample
	Detector start coordinate sample value.

double	p_startingDetectorLine
	Detector start coordinate line value.

double	p_ss
	Start sample.

double	p_sl
	Start line.

Private Member Functions
int	initializeInteriorOrientation ()
	This method uses the ApolloPanIO class to compute transforamtion from cube to image (aka fiducial cooraintes)

void	Compute ()
	Compute new offsets whenenver summing or starting sample/lines change.

Private Attributes
double	m_etMiddle
	Ephemeris time at the middle line.

double	m_lineRate
	line exposure duration

Pvl *	m_lab
	Image label used to construct camera object.

ApolloPanIO	p_intOri
	Class to preform transformations from cube coordiantes to image coordinates.

Detailed Description

Convert between parent image (aka encoder aka machine) coordinates and detector coordinates.

This class is used to convert between parent image (aka encoder aka machine) coordinates (sample/line) and detector coordinates for a the Apollo Panoramic Image.

Author: 2011-11-21 Orrin Thomas

History

2011-11-21 Orrin Thomas - Original version

2012-07-10 Orrin Thomas - Updated to current coding standards

2017-06-28 Makayla Shepherd - Updated documentation. References #4807.

Definition at line 32 of file ApolloPanoramicDetectorMap.h.

Constructor & Destructor Documentation

◆ ApolloPanoramicDetectorMap()

Isis::ApolloPanoramicDetectorMap::ApolloPanoramicDetectorMap	(	Camera *	parent,
		double	etMiddle,
		double	lineRate,
		Pvl *	lab )

inline

Construct a detector map for line scan cameras.

Parameters

parent	The parent Camera Model
etMiddle	Time of the center line, line 0 after interior orientation
lineRate	the time in seconds between lines (msec)
lab	The labels to use for the camera creation

Definition at line 43 of file ApolloPanoramicDetectorMap.h.

References initializeInteriorOrientation(), m_etMiddle, m_lab, and m_lineRate.

◆ ~ApolloPanoramicDetectorMap()

virtual Isis::ApolloPanoramicDetectorMap::~ApolloPanoramicDetectorMap ( )

inlinevirtual

Destroys ApolloPanoramicDetectorMap object.

Definition at line 53 of file ApolloPanoramicDetectorMap.h.

Member Function Documentation

◆ AdjustedStartingLine()

double Isis::CameraDetectorMap::AdjustedStartingLine ( ) const

inherited

Return the starting detector line adjusted for summation.

Returns: (double) The starting line

Definition at line 123 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_sl.

◆ AdjustedStartingSample()

double Isis::CameraDetectorMap::AdjustedStartingSample ( ) const

inherited

Return the starting detector sample adjusted for summation.

Returns: (double) The starting sample

Definition at line 113 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_ss.

◆ Compute()

void Isis::CameraDetectorMap::Compute ( )

privateinherited

Compute new offsets whenenver summing or starting sample/lines change.

Definition at line 99 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_detectorLineSumming, Isis::CameraDetectorMap::p_detectorSampleSumming, Isis::CameraDetectorMap::p_sl, Isis::CameraDetectorMap::p_ss, Isis::CameraDetectorMap::p_startingDetectorLine, and Isis::CameraDetectorMap::p_startingDetectorSample.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::SetDetectorLineSumming(), Isis::CameraDetectorMap::SetDetectorSampleSumming(), Isis::CameraDetectorMap::SetStartingDetectorLine(), and Isis::CameraDetectorMap::SetStartingDetectorSample().

◆ DetectorLine()

double Isis::CameraDetectorMap::DetectorLine ( ) const

inherited

Return detector line.

Returns: (double) The detector line

Definition at line 163 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_detectorLine.

Referenced by Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ DetectorSample()

double Isis::CameraDetectorMap::DetectorSample ( ) const

inherited

Return detector sample.

Returns: (double) The detector sample

Definition at line 153 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_detectorSample.

Referenced by Isis::Camera::SetImage(), and Isis::Camera::SetImage().

◆ exposureDuration()

double Isis::CameraDetectorMap::exposureDuration	(	const double	sample,
		const double	line,
		const int	band ) const

virtualinherited

This virtual method is for returning the exposure duration of a given pixel.

For framing cameras, exposure duration is not available so it throws an error.

Parameters

sample	The sample of the desired pixel.
line	The line of the desired pixel.
band	The band of the desired pixel.

Returns: double The exposure duration for the desired pixel in seconds.

Exceptions

IException::Programmer "Exposure duration is only available for LineScan, VariableLineScan, and PushFrame Cameras."

Reimplemented in Isis::LineScanCameraDetectorMap, Isis::PushFrameCameraDetectorMap, Isis::VariableLineScanCameraDetectorMap, and Isis::NirsDetectorMap.

Definition at line 212 of file CameraDetectorMap.cpp.

References Isis::IException::Programmer.

Referenced by Isis::Camera::exposureDuration(), and Isis::Camera::exposureDuration().

◆ initializeInteriorOrientation()

int Isis::ApolloPanoramicDetectorMap::initializeInteriorOrientation ( )

private

This method uses the ApolloPanIO class to compute transforamtion from cube to image (aka fiducial cooraintes)

Exceptions

IException::User	"No FID_MEASURES table found in cube blobs."
IException::User	"Less than four FID_MEASURES found in cube blobs."
IException::User	"Insufficient Fiducial Observations for computation of the interior orientation. At least one vertical pair must be measured, many more is recomented."

Returns: int Returns 1 on success and -1 on failure.

Definition at line 96 of file ApolloPanoramicDetectorMap.cpp.

References Isis::ApolloPanIO::computeInteriorOrienation(), Isis::ApolloPanIO::fiducialObservation(), Isis::PvlContainer::fileName(), Isis::ApolloPanIO::initialize(), m_lab, p_intOri, Isis::Table::Records(), and Isis::IException::User.

Referenced by ApolloPanoramicDetectorMap().

◆ LineRate()

double Isis::ApolloPanoramicDetectorMap::LineRate ( ) const

inlinevirtual

Return the time in seconds between scan lines.

Returns: double Time in seconds between scan lines

Reimplemented from Isis::CameraDetectorMap.

Definition at line 77 of file ApolloPanoramicDetectorMap.h.

References m_lineRate.

◆ LineScaleFactor()

double Isis::CameraDetectorMap::LineScaleFactor ( ) const

virtualinherited

Return scaling factor for computing line resolution.

Returns: (double) The scaling factor for line resolution

Definition at line 183 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_detectorLineSumming.

Referenced by Isis::Camera::LineResolution(), Isis::Camera::ObliqueLineResolution(), Isis::ThemisIrCamera::SetBand(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetParent(), and Isis::PushFrameCameraDetectorMap::TotalFramelets().

◆ maxResidual()

double Isis::ApolloPanoramicDetectorMap::maxResidual ( )

inline

Max interior orientation residual vector length, accesor.

Returns: double Max interior orientation residual vector length

Definition at line 93 of file ApolloPanoramicDetectorMap.h.

References Isis::ApolloPanIO::maxResiduals(), and p_intOri.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera().

◆ meanResidual()

double Isis::ApolloPanoramicDetectorMap::meanResidual ( )

inline

Mean (average) of interior orientation residual vector lengths, accesor.

Returns: double Mean of interior orientation residual vector lengths

Definition at line 86 of file ApolloPanoramicDetectorMap.h.

References Isis::ApolloPanIO::meanResiduals(), and p_intOri.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera().

◆ ParentLine()

double Isis::CameraDetectorMap::ParentLine ( ) const

inherited

Return parent line.

Returns: (double) The parent line

Definition at line 143 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_parentLine.

Referenced by Isis::Camera::RawFocalPlanetoImage(), and Isis::Camera::SetRightAscensionDeclination().

◆ ParentSample()

double Isis::CameraDetectorMap::ParentSample ( ) const

inherited

Return parent sample.

Returns: (double) The parent sample

Definition at line 133 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_parentSample.

Referenced by Isis::Camera::RawFocalPlanetoImage(), and Isis::Camera::SetRightAscensionDeclination().

◆ SampleScaleFactor()

double Isis::CameraDetectorMap::SampleScaleFactor ( ) const

virtualinherited

Return scaling factor for computing sample resolution.

Returns: (double) The scaling factor for sample resolution

Definition at line 173 of file CameraDetectorMap.cpp.

References Isis::CameraDetectorMap::p_detectorSampleSumming.

Referenced by Isis::Camera::ObliqueSampleResolution(), and Isis::Camera::SampleResolution().

◆ SetDetector()

bool Isis::ApolloPanoramicDetectorMap::SetDetector	(	const double	sample,
		const double	line )

virtual

This method sets cube sample line coordinates from given Dector coordinates.

Parameters

sample	dector sample coordinate
line	detector line coordinate

Returns: bool Always returns true

Reimplemented from Isis::CameraDetectorMap.

Definition at line 29 of file ApolloPanoramicDetectorMap.cpp.

References Isis::iTime::Et(), Isis::ApolloPanIO::image2Machine(), m_etMiddle, m_lineRate, Isis::CameraDetectorMap::p_camera, Isis::CameraDetectorMap::p_detectorLine, Isis::CameraDetectorMap::p_detectorSample, p_intOri, Isis::CameraDetectorMap::p_parentLine, Isis::CameraDetectorMap::p_parentSample, and Isis::Spice::time().

◆ SetDetectorLineSumming()

void Isis::CameraDetectorMap::SetDetectorLineSumming ( const double summing )

inlineinherited

Set line summing mode.

Use this method to specify if detector lines are summed/averaged. That is, one image lines represents the average of N detectors. If not set the default is 1.

Parameters

summing Line summing mode

Definition at line 123 of file CameraDetectorMap.h.

References Isis::CameraDetectorMap::Compute(), and Isis::CameraDetectorMap::p_detectorLineSumming.

Referenced by Isis::CrismCamera::CrismCamera().

◆ SetDetectorSampleSumming()

void Isis::CameraDetectorMap::SetDetectorSampleSumming ( const double summing )

inlineinherited

Set sample summing mode.

Use this method to specify if detector samples are summed/averaged. That is, one image sample represents the average of N detectors. If not set the default is 1.

Parameters

summing Sample summing mode

Definition at line 108 of file CameraDetectorMap.h.

References Isis::CameraDetectorMap::Compute(), and Isis::CameraDetectorMap::p_detectorSampleSumming.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera(), Isis::CrismCamera::CrismCamera(), Isis::DawnVirCamera::DawnVirCamera(), Isis::HrscCamera::HrscCamera(), and Isis::RosettaVirtisCamera::RosettaVirtisCamera().

◆ SetLineRate()

void Isis::ApolloPanoramicDetectorMap::SetLineRate ( const double lineRate )

inline

Reset the line rate.

Use this method to reset the time between lines. Usually this will not need to be done unless the rate changes between bands.

Parameters

lineRate the time in seconds between lines

Returns: void

Definition at line 68 of file ApolloPanoramicDetectorMap.h.

References m_lineRate.

◆ SetParent() [1/2]

bool Isis::ApolloPanoramicDetectorMap::SetParent	(	const double	sample,
		const double	line )

virtual

This method sets dector sample line coordinates from given cube coordinates.

Parameters

sample	cube sample coordinate
line	cube line coordinate

Returns: bool Always returns true

Reimplemented from Isis::CameraDetectorMap.

Definition at line 58 of file ApolloPanoramicDetectorMap.cpp.

References m_etMiddle, m_lineRate, Isis::ApolloPanIO::machine2Image(), Isis::CameraDetectorMap::p_camera, Isis::CameraDetectorMap::p_detectorLine, Isis::CameraDetectorMap::p_detectorSample, p_intOri, Isis::CameraDetectorMap::p_parentLine, Isis::CameraDetectorMap::p_parentSample, and Isis::Sensor::setTime().

◆ SetParent() [2/2]

bool Isis::CameraDetectorMap::SetParent	(	const double	sample,
		const double	line,
		const double	deltaT )

virtualinherited

Compute detector position from a parent image coordinate.

This method will compute the detector position from the parent line/sample coordinate and an offset from the currently set time in seconds. If the time has not already been set, the input offset is not applied.

Parameters

sample	Sample number in the parent image
line	Line number in the parent image
deltaT	option time offset from center of exposure in seconds

Returns: conversion successful

Reimplemented in Isis::LineScanCameraDetectorMap, Isis::PushFrameCameraDetectorMap, Isis::RollingShutterCameraDetectorMap, and Isis::VariableLineScanCameraDetectorMap.

Definition at line 82 of file CameraDetectorMap.cpp.

References Isis::Spice::isTimeSet(), Isis::CameraDetectorMap::p_camera, Isis::CameraDetectorMap::p_detectorLine, Isis::CameraDetectorMap::p_detectorLineSumming, Isis::CameraDetectorMap::p_detectorSample, Isis::CameraDetectorMap::p_detectorSampleSumming, Isis::CameraDetectorMap::p_parentLine, Isis::CameraDetectorMap::p_parentSample, Isis::CameraDetectorMap::p_sl, Isis::CameraDetectorMap::p_ss, Isis::Sensor::setTime(), and Isis::Spice::time().

◆ SetStartingDetectorLine()

void Isis::CameraDetectorMap::SetStartingDetectorLine ( const double line )

inlineinherited

Set the starting detector line.

Use this method to specify the starting detector that represents the first image line in the cube. If not set the default is 1.

Parameters

line	Starting detector line

Definition at line 93 of file CameraDetectorMap.h.

References Isis::CameraDetectorMap::Compute(), and Isis::CameraDetectorMap::p_startingDetectorLine.

◆ SetStartingDetectorSample()

void Isis::CameraDetectorMap::SetStartingDetectorSample ( const double sample )

inlineinherited

Set the starting detector sample.

Use this method to specify the starting detector that represents the first image sample in the cube. If not set the default is 1.

Parameters

sample Starting detector sample

Definition at line 79 of file CameraDetectorMap.h.

References Isis::CameraDetectorMap::Compute(), and Isis::CameraDetectorMap::p_startingDetectorSample.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera().

◆ stdevResidual()

double Isis::ApolloPanoramicDetectorMap::stdevResidual ( )

inline

Standard deviation of interior orientation residual vector lengths, accesor.

Returns: double Standard deviation of interior orientation residual vector lengths

Definition at line 100 of file ApolloPanoramicDetectorMap.h.

References p_intOri, and Isis::ApolloPanIO::stdevResiduals().

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera().

Member Data Documentation

◆ m_etMiddle

double Isis::ApolloPanoramicDetectorMap::m_etMiddle

private

Ephemeris time at the middle line.

Definition at line 104 of file ApolloPanoramicDetectorMap.h.

Referenced by ApolloPanoramicDetectorMap(), SetDetector(), and SetParent().

◆ m_lab

Pvl* Isis::ApolloPanoramicDetectorMap::m_lab

private

Image label used to construct camera object.

Definition at line 106 of file ApolloPanoramicDetectorMap.h.

Referenced by ApolloPanoramicDetectorMap(), and initializeInteriorOrientation().

◆ m_lineRate

double Isis::ApolloPanoramicDetectorMap::m_lineRate

private

line exposure duration

Definition at line 105 of file ApolloPanoramicDetectorMap.h.

Referenced by ApolloPanoramicDetectorMap(), LineRate(), SetDetector(), SetLineRate(), and SetParent().

◆ p_camera

Camera* Isis::CameraDetectorMap::p_camera

protectedinherited

Pointer to the camera.

Definition at line 138 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), SetDetector(), Isis::LineScanCameraDetectorMap::SetDetector(), Isis::RadarPulseMap::SetDetector(), Isis::VariableLineScanCameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetFramelet(), SetParent(), Isis::RadarPulseMap::SetParent(), Isis::MocWideAngleDetectorMap::SetParent(), Isis::CameraDetectorMap::SetParent(), Isis::LineScanCameraDetectorMap::SetParent(), Isis::RollingShutterCameraDetectorMap::SetParent(), Isis::VariableLineScanCameraDetectorMap::SetParent(), and Isis::PushFrameCameraDetectorMap::TotalFramelets().

◆ p_detectorLine

double Isis::CameraDetectorMap::p_detectorLine

protectedinherited

Detector coordinate line value.

Definition at line 142 of file CameraDetectorMap.h.

◆ p_detectorLineSumming

double Isis::CameraDetectorMap::p_detectorLineSumming

protectedinherited

The scaling factor for computing line resolution.

Definition at line 146 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::Compute(), Isis::CameraDetectorMap::LineScaleFactor(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetectorLineSumming(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_detectorSample

double Isis::CameraDetectorMap::p_detectorSample

protectedinherited

Detector coordinate sample value.

Definition at line 143 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::DetectorSample(), SetDetector(), Isis::CameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), SetParent(), Isis::MocWideAngleDetectorMap::SetParent(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_detectorSampleSumming

double Isis::CameraDetectorMap::p_detectorSampleSumming

protectedinherited

The scaling factor for computing sample resolution.

Definition at line 145 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::Compute(), Isis::CameraDetectorMap::SampleScaleFactor(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetDetectorSampleSumming(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_intOri

ApolloPanIO Isis::ApolloPanoramicDetectorMap::p_intOri

private

Class to preform transformations from cube coordiantes to image coordinates.

Definition at line 111 of file ApolloPanoramicDetectorMap.h.

Referenced by initializeInteriorOrientation(), maxResidual(), meanResidual(), SetDetector(), SetParent(), and stdevResidual().

◆ p_parentLine

double Isis::CameraDetectorMap::p_parentLine

protectedinherited

The parent line calculated from the detector.

Definition at line 141 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::ParentLine(), SetDetector(), Isis::CameraDetectorMap::SetDetector(), Isis::LineScanCameraDetectorMap::SetDetector(), Isis::PushFrameCameraDetectorMap::SetDetector(), Isis::RadarPulseMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::VariableLineScanCameraDetectorMap::SetDetector(), SetParent(), Isis::CameraDetectorMap::SetParent(), Isis::PushFrameCameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_parentSample

double Isis::CameraDetectorMap::p_parentSample

protectedinherited

The parent sample calculated from the detector.

Definition at line 140 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::ParentSample(), SetDetector(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::MocWideAngleDetectorMap::SetDetector(), SetParent(), Isis::CameraDetectorMap::SetParent(), Isis::PushFrameCameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_sl

double Isis::CameraDetectorMap::p_sl

protectedinherited

Start line.

Definition at line 151 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::AdjustedStartingLine(), Isis::CameraDetectorMap::Compute(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_ss

double Isis::CameraDetectorMap::p_ss

protectedinherited

Start sample.

Definition at line 150 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::AdjustedStartingSample(), Isis::CameraDetectorMap::Compute(), Isis::CameraDetectorMap::SetDetector(), Isis::RollingShutterCameraDetectorMap::SetDetector(), Isis::CameraDetectorMap::SetParent(), and Isis::RollingShutterCameraDetectorMap::SetParent().

◆ p_startingDetectorLine

double Isis::CameraDetectorMap::p_startingDetectorLine

protectedinherited

Detector start coordinate line value.

Definition at line 148 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::Compute(), and Isis::CameraDetectorMap::SetStartingDetectorLine().

◆ p_startingDetectorSample

double Isis::CameraDetectorMap::p_startingDetectorSample

protectedinherited

Detector start coordinate sample value.

Definition at line 147 of file CameraDetectorMap.h.

Referenced by Isis::CameraDetectorMap::CameraDetectorMap(), Isis::CameraDetectorMap::Compute(), and Isis::CameraDetectorMap::SetStartingDetectorSample().

The documentation for this class was generated from the following files:

src/apollo/objs/ApolloPanoramicCamera/ApolloPanoramicDetectorMap.h
src/apollo/objs/ApolloPanoramicCamera/ApolloPanoramicDetectorMap.cpp

Public Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ ApolloPanoramicDetectorMap()

◆ ~ApolloPanoramicDetectorMap()

Member Function Documentation

◆ AdjustedStartingLine()

◆ AdjustedStartingSample()

◆ Compute()

◆ DetectorLine()

◆ DetectorSample()

◆ exposureDuration()

◆ initializeInteriorOrientation()

◆ LineRate()

◆ LineScaleFactor()

◆ maxResidual()

◆ meanResidual()

◆ ParentLine()

◆ ParentSample()

◆ SampleScaleFactor()

◆ SetDetector()

◆ SetDetectorLineSumming()

◆ SetDetectorSampleSumming()

◆ SetLineRate()

◆ SetParent() [1/2]

◆ SetParent() [2/2]

◆ SetStartingDetectorLine()

◆ SetStartingDetectorSample()

◆ stdevResidual()

Member Data Documentation

◆ m_etMiddle

◆ m_lab

◆ m_lineRate

◆ p_camera

◆ p_detectorLine

◆ p_detectorLineSumming

◆ p_detectorSample

◆ p_detectorSampleSumming

◆ p_intOri

◆ p_parentLine

◆ p_parentSample

◆ p_sl

◆ p_ss

◆ p_startingDetectorLine

◆ p_startingDetectorSample
