Isis Developer Reference
Public Types | Public Member Functions | Static Public Member Functions | Protected Member Functions | Protected Attributes | List of all members
Isis::RadarGroundRangeMap Class Reference

Construct a mapping between image sample and Radar ground range. More...

#include <RadarGroundRangeMap.h>

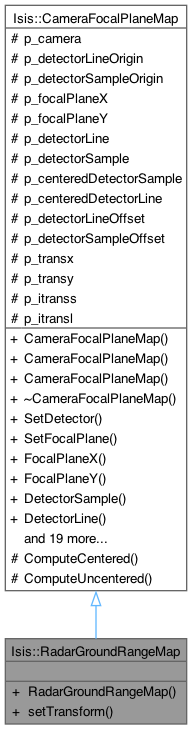

Inheritance diagram for Isis::RadarGroundRangeMap:
Inheritance graph

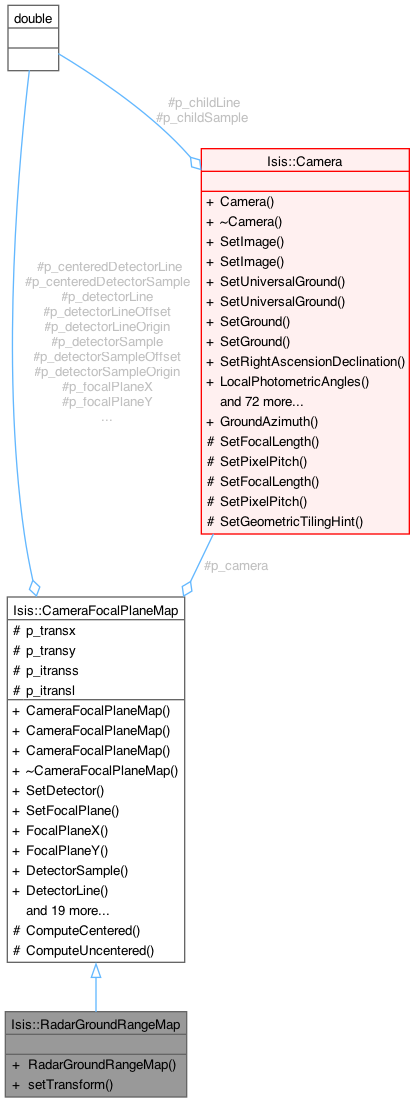

Collaboration diagram for Isis::RadarGroundRangeMap:
Collaboration graph

Public Types

enum  FocalPlaneXDependencyType { Sample = 1 , Line = 2 }
 Focal plane x dependency indicates whether the x value of the focal plane coordinate maps to a sample or a line. More...


Public Member Functions

 RadarGroundRangeMap (Camera *parent, const int naifIkCode)
 Construct mapping between detectors and focal plane x/y.

virtual bool SetDetector (const double sample, const double line)
 Compute distorted focal plane coordinate from detector position (sampel,line)

virtual bool SetFocalPlane (const double dx, const double dy)
 Compute detector position (sample,line) from focal plane coordinates.

double FocalPlaneX () const

double FocalPlaneY () const

double DetectorSample () const

double DetectorLine () const

double CenteredDetectorSample () const

double CenteredDetectorLine () const

void SetDetectorOrigin (const double sample, const double line)
 Set the detector origin.

double DetectorLineOrigin () const

double DetectorSampleOrigin () const

void SetDetectorOffset (const double sampleOffset, const double lineOffset)
 Set the detector offset.

double DetectorLineOffset () const

double DetectorSampleOffset () const

void SetTransL (const QVector< double > transL)
 Set the affine coefficients for converting destorted (x,y) to a detector Line.

void SetTransS (const QVector< double > transS)
 Set the affine coefficients for converting destorted (x,y) to a detector Sample.

void SetTransX (const QVector< double > transX)
 Set the affine coefficients for converting detector (sample,line) to a distorted X.

void SetTransY (const QVector< double > transY)
 Set the affine coefficients for converting detector (sample,line) to a distorted Y.

const double * TransL () const

const double * TransS () const

const double * TransX () const

const double * TransY () const

int FocalPlaneXDependency ()
 Return the focal plane x dependency variable.

double SignMostSigX ()
 Return the sign of the p_transx coefficient with the greatest magnitude.

double SignMostSigY ()
 Return the sign of the p_transy coefficient with the greatest magnitude.


Static Public Member Functions

static void setTransform (int naifIkCode, double groundRangeResolution, int samples, Radar::LookDirection ldir)


Protected Member Functions

void ComputeCentered ()
 Convenience method to center detector origin (use when inheriting)

void ComputeUncentered ()
 Convenience method to center detector origin (use when inheriting)


Protected Attributes

Camera * p_camera
 Camera of the image.

double p_detectorLineOrigin
 The origin line of the detector.

double p_detectorSampleOrigin
 The origin sample of the detector.

double p_focalPlaneX
 x value of focal plane coordinate

double p_focalPlaneY
 y value of focal plane coordinate

double p_detectorLine
 line value of the detector

double p_detectorSample
 sample value of the detector

double p_centeredDetectorSample
 Detector sample position.

double p_centeredDetectorLine
 Detector line position.

double p_detectorLineOffset
 Offset of the detector origin line from the average.

double p_detectorSampleOffset
 offset of the detector origin sample from the average

double p_transx [3]
 The x transition from detector to distorted.

double p_transy [3]
 The y transition from detector to distorted.

double p_itranss [3]
 The x transition from distorted to detector.

double p_itransl [3]
 The y transition from distorted to detector.


Detailed Description

Construct a mapping between image sample and Radar ground range.

See also
Camera
Author
2008-06-17 Jeff Anderson Original version

Member Enumeration Documentation

◆ FocalPlaneXDependencyType

enum Isis::CameraFocalPlaneMap::FocalPlaneXDependencyType
inherited

Focal plane x dependency indicates whether the x value of the focal plane coordinate maps to a sample or a line.

Enumerator
Sample

The x value of the focal plane maps to a sample.

Line

The x value of the focal plane maps to a line.

Constructor & Destructor Documentation

◆ RadarGroundRangeMap()

Isis::RadarGroundRangeMap::RadarGroundRangeMap ( Camera * parent,
const int naifIkCode )

Construct mapping between detectors and focal plane x/y.

Parameters
parentparent camera that will use this map
naifIkCodecode of the naif instrument for reading coefficients

References Isis::CameraFocalPlaneMap::CameraFocalPlaneMap().

Member Function Documentation

◆ CenteredDetectorLine()

double Isis::CameraFocalPlaneMap::CenteredDetectorLine ( ) const
inherited
Returns
The centered detector line

References p_centeredDetectorLine.

◆ CenteredDetectorSample()

double Isis::CameraFocalPlaneMap::CenteredDetectorSample ( ) const
inherited
Returns
The centered detector sample

References p_centeredDetectorSample.

◆ ComputeCentered()

void Isis::CameraFocalPlaneMap::ComputeCentered ( )
protectedinherited

Convenience method to center detector origin (use when inheriting)

References p_centeredDetectorLine, p_centeredDetectorSample, p_detectorLine, p_detectorLineOrigin, p_detectorSample, and p_detectorSampleOrigin.

Referenced by SetDetector().

◆ ComputeUncentered()

void Isis::CameraFocalPlaneMap::ComputeUncentered ( )
protectedinherited

Convenience method to center detector origin (use when inheriting)

References p_centeredDetectorLine, p_centeredDetectorSample, p_detectorLine, p_detectorLineOrigin, p_detectorSample, and p_detectorSampleOrigin.

Referenced by SetFocalPlane().

◆ DetectorLine()

double Isis::CameraFocalPlaneMap::DetectorLine ( ) const
inherited
Returns
The detector line

References p_detectorLine.

Referenced by Isis::ControlPoint::ComputeResiduals(), and Isis::LineScanCameraSkyMap::SetSky().

◆ DetectorLineOffset()

double Isis::CameraFocalPlaneMap::DetectorLineOffset ( ) const
inherited
Returns
The detector line offset

References p_detectorLineOffset.

Referenced by Isis::LineScanCameraSkyMap::SetSky().

◆ DetectorLineOrigin()

double Isis::CameraFocalPlaneMap::DetectorLineOrigin ( ) const
inherited
Returns
The detector line origin

References p_detectorLineOrigin.

Referenced by Isis::OsirisRexDistortionMap::OsirisRexDistortionMap().

◆ DetectorSample()

double Isis::CameraFocalPlaneMap::DetectorSample ( ) const
inherited
Returns
The detector sample

References p_detectorSample.

Referenced by Isis::ControlPoint::ComputeResiduals().

◆ DetectorSampleOffset()

double Isis::CameraFocalPlaneMap::DetectorSampleOffset ( ) const
inherited
Returns
The detector sample offset

References p_detectorSampleOffset.

◆ DetectorSampleOrigin()

double Isis::CameraFocalPlaneMap::DetectorSampleOrigin ( ) const
inherited
Returns
The detector sample origin

References p_detectorSampleOrigin.

Referenced by Isis::OsirisRexDistortionMap::OsirisRexDistortionMap().

◆ FocalPlaneX()

double Isis::CameraFocalPlaneMap::FocalPlaneX ( ) const
inherited
Returns
The distorted focal plane x

References p_focalPlaneX.

◆ FocalPlaneXDependency()

int Isis::CameraFocalPlaneMap::FocalPlaneXDependency ( )
inherited

Return the focal plane x dependency variable.

This method returns the image variable (sample or line) on which the focal plane x depends.

Returns
dependency variable

References Line, p_transx, and Sample.

◆ FocalPlaneY()

double Isis::CameraFocalPlaneMap::FocalPlaneY ( ) const
inherited
Returns
The distorted focal plane y

References p_focalPlaneY.

◆ SetDetector()

bool Isis::CameraFocalPlaneMap::SetDetector ( const double sample,
const double line )
virtualinherited

Compute distorted focal plane coordinate from detector position (sampel,line)

This method will compute both the distorted focal plane x/y and centered detector position given a detector position

Parameters
sampleundistorted focal plane x in millimeters
lineundistorted focal plane y in millimeters
Returns
conversion was successful

References ComputeCentered(), p_centeredDetectorLine, p_centeredDetectorSample, p_detectorLine, p_detectorSample, p_focalPlaneX, p_focalPlaneY, p_transx, and p_transy.

◆ SetDetectorOffset()

void Isis::CameraFocalPlaneMap::SetDetectorOffset ( const double sampleOffset,
const double lineOffset )
inherited

Set the detector offset.

This is used to set the offset between the detector origin and the average location in detector pixels where the image is being viewed. If not set the offset are both 0.0

Parameters
sampleOffsetsample offset in pixels
lineOffsetsample offset in lines

References p_detectorLineOffset, and p_detectorSampleOffset.

Referenced by Isis::ApolloPanoramicCamera::ApolloPanoramicCamera(), Isis::Chandrayaan1M3Camera::Chandrayaan1M3Camera(), Isis::ClipperPushBroomCamera::ClipperPushBroomCamera(), Isis::CrismCamera::CrismCamera(), Isis::CTXCamera::CTXCamera(), Isis::HiriseCamera::HiriseCamera(), Isis::KaguyaMiCamera::KaguyaMiCamera(), Isis::LroNarrowAngleCamera::LroNarrowAngleCamera(), Isis::MocNarrowAngleCamera::MocNarrowAngleCamera(), Isis::MocWideAngleCamera::MocWideAngleCamera(), Isis::ThemisIrCamera::SetBand(), and Isis::ThemisIrCamera::ThemisIrCamera().

◆ SetDetectorOrigin()

void Isis::CameraFocalPlaneMap::SetDetectorOrigin ( const double sample,
const double line )
inherited

Set the detector origin.

This is used to set the origin of the detector. Typically the middle of the detector. For example, a 512x512 dectector would have the origin at (256.5,256.5). If not set both are 0.

Parameters
sampledetector sample at the origin
linedetector line at the origin

References p_detectorLineOrigin, and p_detectorSampleOrigin.

Referenced by Isis::ApolloMetricCamera::ApolloMetricCamera(), Isis::ApolloPanoramicCamera::ApolloPanoramicCamera(), Isis::Chandrayaan1M3Camera::Chandrayaan1M3Camera(), Isis::ClipperNacRollingShutterCamera::ClipperNacRollingShutterCamera(), Isis::ClipperPushBroomCamera::ClipperPushBroomCamera(), Isis::ClipperWacFcCamera::ClipperWacFcCamera(), Isis::CrismCamera::CrismCamera(), Isis::CTXCamera::CTXCamera(), Isis::DawnFcCamera::DawnFcCamera(), Isis::DawnVirCamera::DawnVirCamera(), Isis::HiresCamera::HiresCamera(), Isis::HiriseCamera::HiriseCamera(), Isis::HrscCamera::HrscCamera(), Isis::IdealCamera::IdealCamera(), Isis::IssNACamera::IssNACamera(), Isis::IssWACamera::IssWACamera(), Isis::JunoCamera::JunoCamera(), Isis::KaguyaMiCamera::KaguyaMiCamera(), Isis::KaguyaTcCamera::KaguyaTcCamera(), Isis::LoHighCamera::LoHighCamera(), Isis::LoMediumCamera::LoMediumCamera(), Isis::LroNarrowAngleCamera::LroNarrowAngleCamera(), Isis::LwirCamera::LwirCamera(), Isis::MarciCamera::MarciCamera(), Isis::Mariner10Camera::Mariner10Camera(), Isis::MdisCamera::MdisCamera(), Isis::MexHrscSrcCamera::MexHrscSrcCamera(), Isis::MocNarrowAngleCamera::MocNarrowAngleCamera(), Isis::MocWideAngleCamera::MocWideAngleCamera(), Isis::MsiCamera::MsiCamera(), Isis::NewHorizonsLeisaCamera::NewHorizonsLeisaCamera(), Isis::NewHorizonsLorriCamera::NewHorizonsLorriCamera(), Isis::NewHorizonsMvicFrameCamera::NewHorizonsMvicFrameCamera(), Isis::NewHorizonsMvicTdiCamera::NewHorizonsMvicTdiCamera(), Isis::NirCamera::NirCamera(), Isis::OsirisRexOcamsCamera::OsirisRexOcamsCamera(), Isis::OsirisRexTagcamsCamera::OsirisRexTagcamsCamera(), Isis::RosettaOsirisCamera::RosettaOsirisCamera(), Isis::RosettaVirtisCamera::RosettaVirtisCamera(), Isis::LroWideAngleCamera::SetBand(), Isis::ThemisIrCamera::SetBand(), Isis::SsiCamera::SsiCamera(), Isis::TgoCassisCamera::TgoCassisCamera(), Isis::ThemisIrCamera::ThemisIrCamera(), Isis::ThemisVisCamera::ThemisVisCamera(), Isis::UvvisCamera::UvvisCamera(), Isis::VikingCamera::VikingCamera(), and Isis::VoyagerCamera::VoyagerCamera().

◆ SetFocalPlane()

bool Isis::CameraFocalPlaneMap::SetFocalPlane ( const double dx,
const double dy )
virtualinherited

Compute detector position (sample,line) from focal plane coordinates.

NOTE: This is detector (sample, line) not necessarily image (sample, line). If the image was reformatted from what was collected the two differ. See the New Horizons LEISA camera for an example (LEISA is a frame camera being treated as a line scan camera).

This method will compute both the centered and normal detector position given a distorted focal plane coordinate.

Parameters
dxdistorted focal plane x in millimeters
dydistorted focal plane y in millimeters
Returns
conversion was successful

References ComputeUncentered(), p_centeredDetectorLine, p_centeredDetectorSample, p_focalPlaneX, p_focalPlaneY, p_itransl, and p_itranss.

Referenced by Isis::ControlPoint::ComputeResiduals(), and Isis::LineScanCameraSkyMap::SetSky().

◆ setTransform()

void Isis::RadarGroundRangeMap::setTransform ( int naifIkCode,
double groundRangeResolution,
int samples,
Radar::LookDirection ldir )
static

Referenced by Isis::MiniRF::MiniRF().

◆ SetTransL()

void Isis::CameraFocalPlaneMap::SetTransL ( const QVector< double > transL)
inherited

Set the affine coefficients for converting destorted (x,y) to a detector Line.

Parameters
transLVector of the affine coefficients

References p_itransl.

Referenced by Isis::NewHorizonsLeisaCamera::SetBand().

◆ SetTransS()

void Isis::CameraFocalPlaneMap::SetTransS ( const QVector< double > transS)
inherited

Set the affine coefficients for converting destorted (x,y) to a detector Sample.

Parameters
transSVector of the affine coefficients

References p_itranss.

Referenced by Isis::NewHorizonsLeisaCamera::SetBand().

◆ SetTransX()

void Isis::CameraFocalPlaneMap::SetTransX ( const QVector< double > transX)
inherited

Set the affine coefficients for converting detector (sample,line) to a distorted X.

Parameters
transXVector of the affine coefficients

References p_transx.

Referenced by Isis::NewHorizonsLeisaCamera::SetBand().

◆ SetTransY()

void Isis::CameraFocalPlaneMap::SetTransY ( const QVector< double > transY)
inherited

Set the affine coefficients for converting detector (sample,line) to a distorted Y.

Parameters
transYVector of the affine coefficients

References p_transy.

Referenced by Isis::NewHorizonsLeisaCamera::SetBand().

◆ SignMostSigX()

double Isis::CameraFocalPlaneMap::SignMostSigX ( )
inherited

Return the sign of the p_transx coefficient with the greatest magnitude.

This method returns a +1. or -1. based on the sign of the p_transx coefficient with the greatest magnitude. Only p_transx[1] and p_transx[2] are compared since p_transx[0] is used as a constant in the affine transformation.

Returns
sign of most significant coefficient

References p_transx.

◆ SignMostSigY()

double Isis::CameraFocalPlaneMap::SignMostSigY ( )
inherited

Return the sign of the p_transy coefficient with the greatest magnitude.

This method returns a +1 or -1 based on the sign of the p_transy coefficient with the greatest magnitude. Only p_transy[1] and p_transy[2] are compared since p_transy[0] is used as a constant in the affine transformation.

Returns
sign of most significant coefficient

References p_transy.

◆ TransL()

const double * Isis::CameraFocalPlaneMap::TransL ( ) const
inherited
Returns
The affine coefficients for converting distorted (x,y) to a detector Line

References p_itransl.

Referenced by Isis::NewHorizonsLeisaCamera::NewHorizonsLeisaCamera().

◆ TransS()

const double * Isis::CameraFocalPlaneMap::TransS ( ) const
inherited
Returns
The affine coefficients for converting distorted (x,y) to a detector Sample

References p_itranss.

Referenced by Isis::NewHorizonsLeisaCamera::NewHorizonsLeisaCamera().

◆ TransX()

const double * Isis::CameraFocalPlaneMap::TransX ( ) const
inherited
Returns
The affine coefficients for converting detector (sample,line) to a distorted X

References p_transx.

Referenced by Isis::NewHorizonsLeisaCamera::NewHorizonsLeisaCamera().

◆ TransY()

const double * Isis::CameraFocalPlaneMap::TransY ( ) const
inherited
Returns
The affine coefficients for converting detector (sample,line) to distorted Y

References p_transy.

Referenced by Isis::NewHorizonsLeisaCamera::NewHorizonsLeisaCamera().

Member Data Documentation

◆ p_camera

Camera* Isis::CameraFocalPlaneMap::p_camera
protectedinherited

Camera of the image.

Referenced by Isis::LroWideAngleCameraFocalPlaneMap::addFilter(), and CameraFocalPlaneMap().

◆ p_centeredDetectorLine

double Isis::CameraFocalPlaneMap::p_centeredDetectorLine
protectedinherited

Detector line position.

Referenced by CenteredDetectorLine(), ComputeCentered(), ComputeUncentered(), SetDetector(), and SetFocalPlane().

◆ p_centeredDetectorSample

double Isis::CameraFocalPlaneMap::p_centeredDetectorSample
protectedinherited

Detector sample position.

Referenced by CenteredDetectorSample(), ComputeCentered(), ComputeUncentered(), SetDetector(), and SetFocalPlane().

◆ p_detectorLine

double Isis::CameraFocalPlaneMap::p_detectorLine
protectedinherited

line value of the detector

Referenced by ComputeCentered(), ComputeUncentered(), DetectorLine(), and SetDetector().

◆ p_detectorLineOffset

double Isis::CameraFocalPlaneMap::p_detectorLineOffset
protectedinherited

Offset of the detector origin line from the average.

Referenced by CameraFocalPlaneMap(), DetectorLineOffset(), and SetDetectorOffset().

◆ p_detectorLineOrigin

double Isis::CameraFocalPlaneMap::p_detectorLineOrigin
protectedinherited

The origin line of the detector.

Referenced by CameraFocalPlaneMap(), ComputeCentered(), ComputeUncentered(), DetectorLineOrigin(), and SetDetectorOrigin().

◆ p_detectorSample

double Isis::CameraFocalPlaneMap::p_detectorSample
protectedinherited

sample value of the detector

Referenced by ComputeCentered(), ComputeUncentered(), DetectorSample(), and SetDetector().

◆ p_detectorSampleOffset

double Isis::CameraFocalPlaneMap::p_detectorSampleOffset
protectedinherited

offset of the detector origin sample from the average

Referenced by CameraFocalPlaneMap(), DetectorSampleOffset(), and SetDetectorOffset().

◆ p_detectorSampleOrigin

double Isis::CameraFocalPlaneMap::p_detectorSampleOrigin
protectedinherited

The origin sample of the detector.

Referenced by CameraFocalPlaneMap(), ComputeCentered(), ComputeUncentered(), DetectorSampleOrigin(), and SetDetectorOrigin().

◆ p_focalPlaneX

double Isis::CameraFocalPlaneMap::p_focalPlaneX
protectedinherited

x value of focal plane coordinate

Referenced by FocalPlaneX(), SetDetector(), and SetFocalPlane().

◆ p_focalPlaneY

double Isis::CameraFocalPlaneMap::p_focalPlaneY
protectedinherited

y value of focal plane coordinate

Referenced by FocalPlaneY(), SetDetector(), and SetFocalPlane().

◆ p_itransl

double Isis::CameraFocalPlaneMap::p_itransl[3]
protectedinherited

The y transition from distorted to detector.

Referenced by CameraFocalPlaneMap(), Isis::LroWideAngleCameraFocalPlaneMap::setBand(), SetFocalPlane(), SetTransL(), and TransL().

◆ p_itranss

double Isis::CameraFocalPlaneMap::p_itranss[3]
protectedinherited

The x transition from distorted to detector.

Referenced by CameraFocalPlaneMap(), Isis::LroWideAngleCameraFocalPlaneMap::setBand(), SetFocalPlane(), SetTransS(), and TransS().

◆ p_transx

double Isis::CameraFocalPlaneMap::p_transx[3]
protectedinherited

The x transition from detector to distorted.

Referenced by CameraFocalPlaneMap(), FocalPlaneXDependency(), Isis::LroWideAngleCameraFocalPlaneMap::setBand(), SetDetector(), SetTransX(), SignMostSigX(), and TransX().

◆ p_transy

double Isis::CameraFocalPlaneMap::p_transy[3]
protectedinherited

The y transition from detector to distorted.

Referenced by CameraFocalPlaneMap(), Isis::LroWideAngleCameraFocalPlaneMap::setBand(), SetDetector(), SetTransY(), SignMostSigY(), and TransY().

The documentation for this class was generated from the following files:
