Isis::FindTool Class Reference

Tool to locate a point on a cube that is projected and/or has a camera model. More...

#include <FindTool.h>

Inheritance diagram for Isis::FindTool:

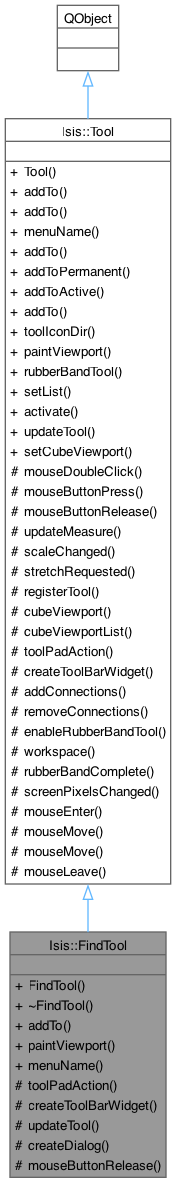

Collaboration diagram for Isis::FindTool:

Public Slots
void	activate (bool)
	Activates the tool.
void	setCubeViewport (MdiCubeViewport *cvp)
	Sets the current viewport to the given cvp.

Signals
void	recordPoint (QPoint p)
	Emitted when point should be recorded.
void	clearWarningSignal ()
void	toolActivated ()
void	viewportChanged ()

Public Member Functions
	FindTool (QWidget *parent)
	Constructs a FindTool object.
	~FindTool ()
void	addTo (QMenu *menu)
	Adds the find tool to the menu.
void	paintViewport (MdiCubeViewport *vp, QPainter *painter)
	This method paints the viewport.
QString	menuName () const
	This method returns the menu name associated with this tool.
void	addTo (ViewportMainWindow *mw)
	Adds the tool to the application.
void	addTo (ToolPad *toolpad)
	Adds the tool to the toolpad.
virtual void	addTo (Workspace *ws)
	Adds the given workspace to the cubeviewport list.
virtual void	addToPermanent (QToolBar *toolbar)
void	addToActive (QToolBar *toolbar)
QString	toolIconDir () const
	returns the path to the icon directory.
RubberBandTool *	rubberBandTool ()
void	setList (ToolList *currentList)

Protected Types
typedef QVector< MdiCubeViewport * >	CubeViewportList
	A list of cubeviewports.

Protected Slots
void	mouseButtonRelease (QPoint p, Qt::MouseButton s)
	Handles mouse clickes in the CubeViewport.
virtual void	rubberBandComplete ()
virtual void	screenPixelsChanged ()
	This is called when actions change which pixels from the cube are displayed.
virtual void	mouseEnter ()
virtual void	mouseMove (QPoint p)
virtual void	mouseMove (QPoint p, Qt::MouseButton)
virtual void	mouseLeave ()

Protected Member Functions
QAction *	toolPadAction (ToolPad *toolpad)
	Adds the find tool to the toolpad.
QWidget *	createToolBarWidget (QStackedWidget *parent)
	Creates the tool bar for the find tool.
void	updateTool ()
	Overriden method to update this tool - Checks if cube is open and checks if the image has camera and/or projection or none and sets the flags accordingly.
void	createDialog (QWidget *parent)
	Creates the dialog used by this tool.
virtual void	mouseDoubleClick (QPoint p)
virtual void	mouseButtonPress (QPoint p, Qt::MouseButton s)
virtual void	updateMeasure ()
virtual void	scaleChanged ()
virtual void	stretchRequested (MdiCubeViewport *, int)
void	registerTool (MdiCubeViewport *viewport)
	Registers the tool to the viewport.
MdiCubeViewport *	cubeViewport () const
	Return the current cubeviewport.
CubeViewportList *	cubeViewportList () const
	Return the list of cubeviewports.
virtual void	addConnections (MdiCubeViewport *cvp)
	Anytime a tool is created, you must add the connections for it.
virtual void	removeConnections (MdiCubeViewport *cvp)
	Anytime a tool is created, you must be able to remove it's connections.
virtual void	enableRubberBandTool ()
	Anytime a tool is created, you may use the rubber band tool.
Workspace *	workspace ()

Detailed Description

Tool to locate a point on a cube that is projected and/or has a camera model.

This tool is part of the Qisis namespace and allows the user to locate a point on a cube that has been projected and/or has a camera model. It also allows the user to link viewports and sync scales.

Author

????-??-?? Unknown

Member Typedef Documentation

CubeViewportList

typedef QVector< MdiCubeViewport * > Isis::Tool::CubeViewportList

protectedinherited

A list of cubeviewports.

Constructor & Destructor Documentation

FindTool()

Isis::FindTool::FindTool

(

QWidget *

parent

)

Constructs a FindTool object.

Parameters

parent

References createDialog(), Isis::Tool::Tool(), and Isis::Tool::toolIconDir().

~FindTool()

Isis::FindTool::~FindTool

(

)

Member Function Documentation

activate

void Isis::Tool::activate ( bool on )

slotinherited

Activates the tool.

Parameters

on

References clearWarningSignal(), and toolActivated().

Referenced by addTo(), Isis::AdvancedTrackTool::AdvancedTrackTool(), Isis::RubberBandTool::disable(), Isis::RubberBandTool::enable(), Isis::AdvancedTrackTool::eventFilter(), Isis::FileTool::FileTool(), Isis::RubberBandTool::RubberBandTool(), Isis::TrackTool::TrackTool(), Isis::WindowTool::WindowTool(), and Isis::Workspace::Workspace().

addConnections()

virtual void Isis::Tool::addConnections ( MdiCubeViewport * cvp )

inlineprotectedvirtualinherited

Anytime a tool is created, you must add the connections for it.

Parameters

cvp

Reimplemented in Isis::TrackTool, and Isis::WindowTool.

addTo() [1/4]

void Isis::FindTool::addTo ( QMenu * menu )

virtual

Adds the find tool to the menu.

Parameters

menu

Reimplemented from Isis::Tool.

addTo() [2/4]

void Isis::Tool::addTo ( ToolPad * toolpad )

inherited

Adds the tool to the toolpad.

Parameters

toolpad

References activate(), Isis::ToolPad::addAction(), and toolPadAction().

addTo() [3/4]

void Isis::Tool::addTo ( ViewportMainWindow * pViewPortMnWin )

inherited

Adds the tool to the application.

Parameters

pViewPortMnWin

References Isis::ViewportMainWindow::activeToolBar(), addTo(), addToActive(), addToPermanent(), Isis::ViewportMainWindow::getMenu(), menuName(), Isis::ViewportMainWindow::permanentToolBar(), Isis::ViewportMainWindow::toolPad(), and Isis::ViewportMainWindow::workspace().

Referenced by Isis::EditTool::addTo(), Isis::FileTool::addTo(), Isis::SpecialPixelTool::addTo(), addTo(), Isis::WindowTool::addTo(), and Isis::Workspace::Workspace().

addTo() [4/4]

void Isis::Tool::addTo ( Workspace * ws )

virtualinherited

Adds the given workspace to the cubeviewport list.

Parameters

ws

Reimplemented in Isis::EditTool, Isis::FileTool, Isis::SpecialPixelTool, and Isis::WindowTool.

References registerTool(), and setCubeViewport().

addToActive()

void Isis::Tool::addToActive ( QToolBar * toolbar )

inherited

Parameters

toolbar

References createToolBarWidget().

Referenced by addTo(), and Isis::Workspace::Workspace().

addToPermanent()

virtual void Isis::Tool::addToPermanent ( QToolBar * toolbar )

inlinevirtualinherited

Parameters

toolbar

Reimplemented in Isis::AdvancedTrackTool, Isis::BlinkTool, Isis::FileTool, Isis::HelpTool, Isis::SpecialPixelTool, and Isis::WindowTool.

Referenced by addTo(), and Isis::Workspace::Workspace().

clearWarningSignal

void Isis::Tool::clearWarningSignal ( )

signalinherited

Referenced by activate(), mouseButtonPress(), mouseButtonRelease(), and mouseDoubleClick().

createDialog()

void Isis::FindTool::createDialog ( QWidget * parent )

protected

Creates the dialog used by this tool.

Parameters

parent

Referenced by FindTool().

createToolBarWidget()

QWidget * Isis::FindTool::createToolBarWidget ( QStackedWidget * parent )

protectedvirtual

Creates the tool bar for the find tool.

Parameters

parent

Returns

QWidget*

Reimplemented from Isis::Tool.

References Isis::Tool::toolIconDir().

cubeViewport()

MdiCubeViewport * Isis::Tool::cubeViewport ( ) const

inlineprotectedinherited

Return the current cubeviewport.

Returns

CubeViewport*

Referenced by Isis::TrackTool::addConnections(), Isis::WindowTool::addConnections(), Isis::StretchTool::deleteFromCube(), Isis::FileTool::discard(), Isis::FileTool::exportToList(), Isis::FileTool::exportView(), Isis::StretchTool::loadStretchFromCube(), Isis::SunShadowTool::mouseButtonPress(), Isis::ControlNetTool::mouseButtonRelease(), Isis::EditTool::mouseButtonRelease(), Isis::FeatureNomenclatureTool::mouseButtonRelease(), Isis::FindTool::mouseButtonRelease(), Isis::MatchTool::mouseButtonRelease(), Isis::PanTool::mouseButtonRelease(), Isis::QnetTool::mouseButtonRelease(), Isis::RubberBandTool::mouseButtonRelease(), Isis::StretchTool::mouseButtonRelease(), Isis::AdvancedTrackTool::mouseLeave(), Isis::RubberBandTool::mouseMove(), Isis::ScatterPlotTool::mouseMove(), Isis::SunShadowTool::mouseMove(), Isis::TrackTool::mouseMove(), Isis::FindTool::paintViewport(), Isis::LatLonGridTool::paintViewport(), Isis::RubberBandTool::paintViewport(), Isis::SunShadowTool::paintViewport(), Isis::FileTool::print(), Isis::HistogramTool::refreshPlot(), Isis::SpatialPlotTool::refreshPlot(), Isis::SpectralPlotTool::refreshPlot(), Isis::TrackTool::removeConnections(), Isis::WindowTool::removeConnections(), Isis::EditTool::rubberBandComplete(), Isis::HistogramTool::rubberBandComplete(), Isis::MeasureTool::rubberBandComplete(), Isis::StereoTool::rubberBandComplete(), Isis::StretchTool::rubberBandComplete(), Isis::ZoomTool::rubberBandComplete(), Isis::FileTool::save(), Isis::FileTool::saveAs(), Isis::FileTool::saveAsCubeByOption(), Isis::FileTool::saveInfo(), Isis::StretchTool::saveStretchToCube(), Isis::ScatterPlotTool::showNewScatterPlotConfig(), Isis::StretchTool::stretchGlobal(), Isis::StretchTool::stretchGlobalAllBands(), Isis::StretchTool::stretchRegional(), Isis::StretchTool::updateAdvStretchDialogforAll(), Isis::StretchTool::updateHistograms(), Isis::MeasureTool::updateMeasure(), Isis::AbstractPlotTool::updateTool(), Isis::BandTool::updateTool(), Isis::BlinkTool::updateTool(), Isis::EditTool::updateTool(), Isis::FileTool::updateTool(), Isis::FindTool::updateTool(), Isis::LatLonGridTool::updateTool(), Isis::SpecialPixelTool::updateTool(), Isis::StretchTool::updateTool(), Isis::SunShadowTool::updateTool(), Isis::WindowTool::updateTool(), Isis::ZoomTool::updateTool(), and Isis::AbstractPlotTool::viewportsToPlot().

cubeViewportList()

Tool::CubeViewportList * Isis::Tool::cubeViewportList ( ) const

protectedinherited

Return the list of cubeviewports.

Returns

CubeViewportList*

Referenced by Isis::FileTool::closeAll(), Isis::MatchTool::createPoint(), Isis::BlinkTool::eventFilter(), Isis::PanTool::mouseButtonRelease(), Isis::RubberBandTool::mouseButtonRelease(), Isis::RubberBandTool::mouseMove(), Isis::AbstractPlotTool::repaintViewports(), Isis::AbstractPlotTool::repaintViewports(), Isis::ScatterPlotTool::repaintViewports(), Isis::ZoomTool::rubberBandComplete(), Isis::ControlNetTool::setControlNet(), Isis::FeatureNomenclatureTool::setFontColor(), Isis::FeatureNomenclatureTool::setFontSize(), Isis::FeatureNomenclatureTool::setShowApprovedOnly(), Isis::FeatureNomenclatureTool::setVectorType(), Isis::StretchTool::stretchGlobalAllViewports(), Isis::MeasureTool::updateMeasure(), Isis::BlinkTool::updateTool(), Isis::FindTool::updateTool(), Isis::WindowTool::updateTool(), and Isis::AbstractPlotTool::viewportsToPlot().

enableRubberBandTool()

void Isis::Tool::enableRubberBandTool ( )

protectedvirtualinherited

Anytime a tool is created, you may use the rubber band tool.

Enable the use of the rubberband tool.

Reimplemented in Isis::HistogramTool, Isis::MeasureTool, Isis::RubberBandTool, Isis::SpatialPlotTool, Isis::SpectralPlotTool, Isis::StereoTool, and Isis::ZoomTool.

References Isis::RubberBandTool::disable(), and rubberBandTool().

menuName()

QString Isis::FindTool::menuName ( ) const

inlinevirtual

This method returns the menu name associated with this tool.

Returns

QString

Reimplemented from Isis::Tool.

mouseButtonPress()

void Isis::Tool::mouseButtonPress ( QPoint p, Qt::MouseButton s )

protectedvirtualinherited

Parameters

p
s

References clearWarningSignal().

mouseButtonRelease

void Isis::FindTool::mouseButtonRelease ( QPoint p, Qt::MouseButton s )

protectedslot

Handles mouse clickes in the CubeViewport.

Uses the point where click occurred to calculate line/samp or lat/lon (if there is a camera).

Parameters

p
s

References Isis::CubeViewport::camera(), Isis::Tool::cubeViewport(), Isis::Sensor::Declination(), Isis::Target::isSky(), Isis::Sensor::RightAscension(), Isis::UniversalGroundMap::SetImage(), Isis::Spice::target(), Isis::CubeViewport::universalGroundMap(), Isis::UniversalGroundMap::UniversalLatitude(), Isis::UniversalGroundMap::UniversalLongitude(), updateTool(), and Isis::CubeViewport::viewportToCube().

mouseDoubleClick()

void Isis::Tool::mouseDoubleClick ( QPoint p )

protectedvirtualinherited

Parameters

p

References clearWarningSignal().

mouseEnter

virtual void Isis::Tool::mouseEnter ( )

inlineprotectedvirtualslotinherited

mouseLeave

virtual void Isis::Tool::mouseLeave ( )

inlineprotectedvirtualslotinherited

mouseMove [1/2]

void Isis::Tool::mouseMove ( QPoint p )

protectedvirtualslotinherited

Parameters

p

mouseMove [2/2]

virtual void Isis::Tool::mouseMove ( QPoint p, Qt::MouseButton  )

inlineprotectedvirtualslotinherited

paintViewport()

void Isis::FindTool::paintViewport ( MdiCubeViewport * vp, QPainter * painter )

virtual

This method paints the viewport.

Parameters

vp
painter

History

2010-03-24 Sharmila Prasad - Enable FindTool for no camera image only for Image Point (lines and Samples)

2010-05-06 Eric Hyer - points now calculated here for every repaint. This method is now used for all images, whether they have a cam or not

Reimplemented from Isis::Tool.

References Isis::CubeViewport::cubeToViewport(), Isis::Tool::cubeViewport(), Isis::MdiCubeViewport::isLinked(), Isis::UniversalGroundMap::Line(), Isis::UniversalGroundMap::Sample(), Isis::UniversalGroundMap::SetUniversalGround(), and Isis::CubeViewport::universalGroundMap().

recordPoint

void Isis::FindTool::recordPoint ( QPoint p )

signal

Emitted when point should be recorded.

registerTool()

void Isis::Tool::registerTool ( MdiCubeViewport * viewport )

protectedinherited

Registers the tool to the viewport.

Parameters

viewport

References Isis::MdiCubeViewport::registerTool(), and stretchRequested().

Referenced by addTo().

removeConnections()

virtual void Isis::Tool::removeConnections ( MdiCubeViewport * cvp )

inlineprotectedvirtualinherited

Anytime a tool is created, you must be able to remove it's connections.

Parameters

cvp

Reimplemented in Isis::MeasureTool, Isis::TrackTool, and Isis::WindowTool.

rubberBandComplete

virtual void Isis::Tool::rubberBandComplete ( )

inlineprotectedvirtualslotinherited

rubberBandTool()

RubberBandTool * Isis::Tool::rubberBandTool ( )

inherited

References rubberBandTool().

Referenced by Isis::MeasureTool::createToolBarWidget(), Isis::EditTool::enableRubberBandTool(), Isis::HistogramTool::enableRubberBandTool(), Isis::MeasureTool::enableRubberBandTool(), Isis::SpatialPlotTool::enableRubberBandTool(), Isis::SpectralPlotTool::enableRubberBandTool(), Isis::StereoTool::enableRubberBandTool(), Isis::StretchTool::enableRubberBandTool(), enableRubberBandTool(), Isis::ZoomTool::enableRubberBandTool(), Isis::HistogramTool::refreshPlot(), Isis::SpatialPlotTool::refreshPlot(), Isis::SpectralPlotTool::refreshPlot(), Isis::EditTool::rubberBandComplete(), Isis::HistogramTool::rubberBandComplete(), Isis::MeasureTool::rubberBandComplete(), Isis::SpatialPlotTool::rubberBandComplete(), Isis::SpectralPlotTool::rubberBandComplete(), Isis::StereoTool::rubberBandComplete(), Isis::StretchTool::rubberBandComplete(), Isis::ZoomTool::rubberBandComplete(), and rubberBandTool().

scaleChanged()

virtual void Isis::Tool::scaleChanged ( )

inlineprotectedvirtualinherited

Reimplemented in Isis::RubberBandTool.

screenPixelsChanged

virtual void Isis::Tool::screenPixelsChanged ( )

inlineprotectedvirtualslotinherited

This is called when actions change which pixels from the cube are displayed.

setCubeViewport

void Isis::Tool::setCubeViewport ( MdiCubeViewport * cvp )

slotinherited

Sets the current viewport to the given cvp.

Parameters

cvp

References updateTool(), and viewportChanged().

Referenced by addTo(), and Isis::FileTool::closeAll().

setList()

void Isis::Tool::setList ( ToolList * currentList )

inherited

Referenced by Isis::ToolList::append().

stretchRequested()

virtual void Isis::Tool::stretchRequested ( MdiCubeViewport * , int  )

inlineprotectedvirtualinherited

Reimplemented in Isis::StretchTool.

Referenced by registerTool().

toolActivated

void Isis::Tool::toolActivated ( )

signalinherited

Referenced by activate(), Isis::FeatureNomenclatureTool::FeatureNomenclatureTool(), Isis::MatchTool::MatchTool(), and Isis::StereoTool::StereoTool().

toolIconDir()

QString Isis::Tool::toolIconDir ( ) const

inlineinherited

returns the path to the icon directory.

Returns

QString

Referenced by Isis::AdvancedTrackTool::AdvancedTrackTool(), Isis::BlinkTool::BlinkTool(), Isis::BandTool::createToolBarWidget(), Isis::EditTool::createToolBarWidget(), Isis::FindTool::createToolBarWidget(), Isis::MatchTool::createToolBarWidget(), Isis::PanTool::createToolBarWidget(), Isis::StereoTool::createToolBarWidget(), Isis::StretchTool::createToolBarWidget(), Isis::ZoomTool::createToolBarWidget(), Isis::FileTool::FileTool(), Isis::FindTool::FindTool(), Isis::HelpTool::HelpTool(), Isis::HistogramTool::HistogramTool(), Isis::PanTool::PanTool(), Isis::SpecialPixelTool::SpecialPixelTool(), Isis::BandTool::toolPadAction(), Isis::ControlNetTool::toolPadAction(), Isis::EditTool::toolPadAction(), Isis::FeatureNomenclatureTool::toolPadAction(), Isis::FindTool::toolPadAction(), Isis::HistogramTool::toolPadAction(), Isis::LatLonGridTool::toolPadAction(), Isis::MatchTool::toolPadAction(), Isis::MeasureTool::toolPadAction(), Isis::PanTool::toolPadAction(), Isis::QnetTool::toolPadAction(), Isis::ScatterPlotTool::toolPadAction(), Isis::SpatialPlotTool::toolPadAction(), Isis::SpectralPlotTool::toolPadAction(), Isis::StatisticsTool::toolPadAction(), Isis::StereoTool::toolPadAction(), Isis::StretchTool::toolPadAction(), Isis::SunShadowTool::toolPadAction(), Isis::ZoomTool::toolPadAction(), Isis::WindowTool::WindowTool(), and Isis::ZoomTool::ZoomTool().

toolPadAction()

QAction * Isis::FindTool::toolPadAction ( ToolPad * toolpad )

protectedvirtual

Adds the find tool to the toolpad.

Parameters

toolpad

Returns

QAction*

Reimplemented from Isis::Tool.

References Isis::Tool::toolIconDir().

updateMeasure()

virtual void Isis::Tool::updateMeasure ( )

inlineprotectedvirtualinherited

updateTool()

void Isis::FindTool::updateTool ( )

protectedvirtual

Overriden method to update this tool - Checks if cube is open and checks if the image has camera and/or projection or none and sets the flags accordingly.

Also checks whether the images are linked.

History

2010-03-24 Sharmila Prasad - Enable FindTool for no camera image & display status as "None"

History

2010-05-06 Eric Hyer - This method now also updates the line edits within the dialog.

Reimplemented from Isis::Tool.

References Isis::CubeViewport::camera(), Isis::Tool::cubeViewport(), Isis::Tool::cubeViewportList(), Isis::UniversalGroundMap::Line(), Isis::CubeViewport::projection(), Isis::UniversalGroundMap::Sample(), Isis::UniversalGroundMap::SetImage(), Isis::UniversalGroundMap::SetUniversalGround(), Isis::CubeViewport::universalGroundMap(), Isis::UniversalGroundMap::UniversalLatitude(), and Isis::UniversalGroundMap::UniversalLongitude().

Referenced by mouseButtonRelease().

viewportChanged

void Isis::Tool::viewportChanged ( )

signalinherited

Referenced by setCubeViewport(), Isis::SpatialPlotTool::SpatialPlotTool(), Isis::SpectralPlotTool::SpectralPlotTool(), and Isis::SunShadowTool::SunShadowTool().

workspace()

Workspace * Isis::Tool::workspace ( )

protectedinherited

Referenced by Isis::EditTool::addTo(), Isis::ControlNetTool::setControlNet(), and Isis::ScatterPlotTool::showNewScatterPlotConfig().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/qisis/objs/FindTool/FindTool.h
• /Users/astamile/ISIS3/isis/src/qisis/objs/FindTool/FindTool.cpp
