Isis::Hapke Class Reference
Radiometric And Photometric Correction

Hapke-Henyey-Greenstein photometric model. More...

#include <Hapke.h>

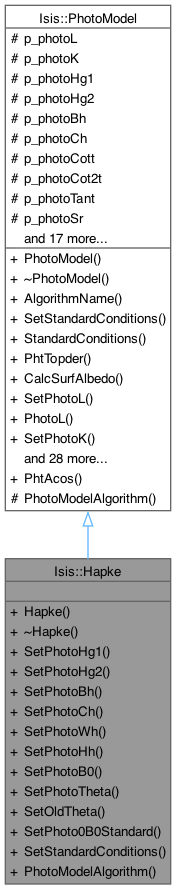

Inheritance diagram for Isis::Hapke:
Inheritance graph

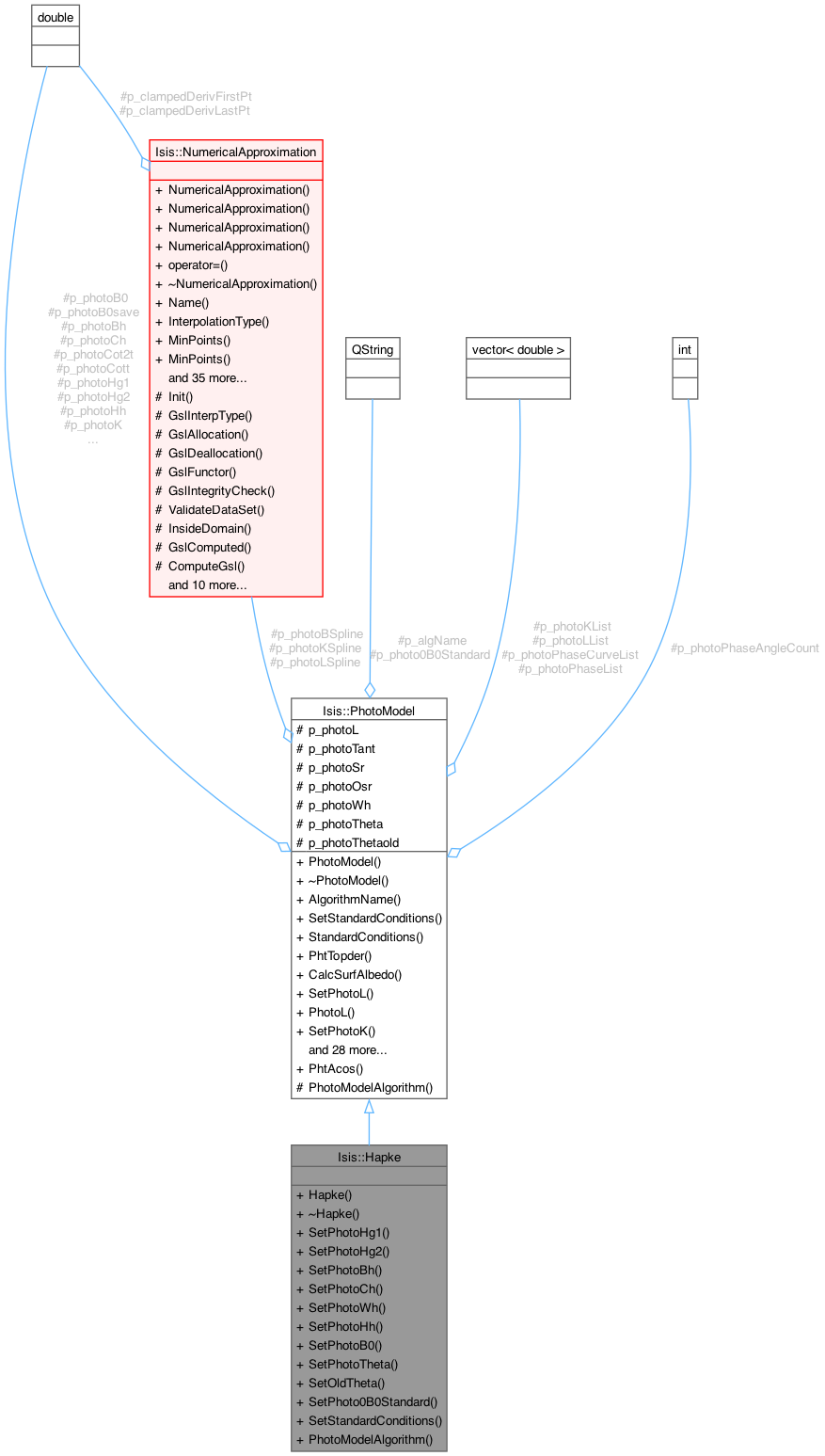

Collaboration diagram for Isis::Hapke:
Collaboration graph

Public Member Functions

 Hapke (Pvl &pvl)

virtual ~Hapke ()

void SetPhotoHg1 (const double hg1)
 Set the Hapke Henyey Greenstein coefficient for the single particle phase function.

void SetPhotoHg2 (const double hg2)
 Return photometric Hg1 value.

void SetPhotoBh (const double bh)
 Return photometric Hg2 value.

void SetPhotoCh (const double ch)
 Return photometric Bh value.

void SetPhotoWh (const double wh)
 Return photometric Ch value.

void SetPhotoHh (const double hh)
 Return photometric Wh value.

void SetPhotoB0 (const double b0)
 Return photometric Hh value.

void SetPhotoTheta (const double theta)
 Return photometric B0 value.

void SetOldTheta (double theta)
 Return photometric Theta value.

void SetPhoto0B0Standard (const QString &b0standard)
 Determine if the Hapke opposition surge component is initialized to zero during the SetStandardConditions phase.

void SetStandardConditions (bool standard)
 Sets whether standard conditions will be used.

virtual double PhotoModelAlgorithm (double phase, double incidence, double emission)

QString AlgorithmName () const
 Return algorithm name found in Pvl file from constructor.

bool StandardConditions () const
 Returns true if standard conditions are used, i.e., if SetStandardConditions(true) has been called. This is initialized to false in the constructor.

double PhtTopder (double phase, double incidence, double emission)
 Obtain topographic derivative of an arbitrary photometric function.

double CalcSurfAlbedo (double pha, double inc, double ema)
 Calculate the surface brightness using photometric angle information.

virtual void SetPhotoL (const double l)

double PhotoL () const
 Return photometric L value.

virtual void SetPhotoK (const double k)

double PhotoK () const
 Return photometric K value.

double PhotoHg1 () const
 Return photometric Hg1 value.

double PhotoHg2 () const
 Return photometric Hg2 value.

double PhotoBh () const
 Return photometric Bh value.

double PhotoCh () const
 Return photometric Ch value.

double PhotoWh () const
 Return photometric Wh value.

double PhotoHh () const
 Return photometric Hh value.

double PhotoB0 () const
 Return photometric B0 value.

double PhotoTheta () const
 Return photometric Theta value.

QString Photo0B0Standard () const
 Return photometric B0 standardization value.

double Hfunc (double u, double gamma)
 Hapke's approximation to Chandra's H function.

virtual void SetPhotoPhaseList (const QString)

virtual void SetPhotoKList (const QString)

virtual void SetPhotoLList (const QString)

virtual void SetPhotoPhaseCurveList (const QString)

std::vector< double > PhotoPhaseList () const
 Return photometric phase angle list.

std::vector< double > PhotoKList () const
 Return photometric k value list.

std::vector< double > PhotoLList () const
 Return photometric l value list.

std::vector< double > PhotoPhaseCurveList () const
 Return photometric phase curve value list.


Static Public Member Functions

static double PhtAcos (double cosang)
 Obtain arccosine of input value.


Protected Attributes

double p_photoL

double p_photoK

double p_photoHg1

double p_photoHg2

double p_photoBh

double p_photoCh

double p_photoCott

double p_photoCot2t

double p_photoTant

double p_photoSr

double p_photoOsr

QString p_algName

QString p_photo0B0Standard

double p_photoWh

double p_photoHh

double p_photoB0

double p_photoB0save

double p_photoTheta

double p_photoThetaold

std::vector< double > p_photoPhaseList

std::vector< double > p_photoKList

std::vector< double > p_photoLList

std::vector< double > p_photoPhaseCurveList

int p_photoPhaseAngleCount

NumericalApproximation p_photoKSpline

NumericalApproximation p_photoLSpline

NumericalApproximation p_photoBSpline


Detailed Description

Hapke-Henyey-Greenstein photometric model.

Derive model albedo using complete Hapke model with Henyey-Greenstein single-particle phase function whose coefficients are hg1 and hg2, plus single scattering albedo wh, opposition surge parameters hh and b0, and macroscopic roughness theta.

Author
1989-08-02 Unknown

Constructor & Destructor Documentation

◆ Hapke()

Isis::Hapke::Hapke ( Pvl & pvl)

References Isis::PhotoModel::AlgorithmName(), Isis::PvlObject::findObject(), Isis::PvlContainer::hasKeyword(), Isis::PhotoModel::p_algName, Isis::PhotoModel::p_photoB0, Isis::PhotoModel::p_photoB0save, Isis::PhotoModel::p_photoHg1, Isis::PhotoModel::p_photoHg2, Isis::PhotoModel::p_photoHh, Isis::PhotoModel::p_photoTheta, Isis::PhotoModel::p_photoThetaold, Isis::PhotoModel::p_photoWh, Isis::PhotoModel::PhotoModel(), SetPhoto0B0Standard(), SetPhotoB0(), SetPhotoBh(), SetPhotoCh(), SetPhotoHg1(), SetPhotoHg2(), SetPhotoHh(), SetPhotoTheta(), SetPhotoWh(), and Isis::PvlObject::Traverse.

◆ ~Hapke()

virtual Isis::Hapke::~Hapke ( )
inlinevirtual

Member Function Documentation

◆ AlgorithmName()

QString Isis::PhotoModel::AlgorithmName ( ) const
inlineinherited

Return algorithm name found in Pvl file from constructor.

Referenced by Isis::Hapke::Hapke().

◆ CalcSurfAlbedo()

double Isis::PhotoModel::CalcSurfAlbedo ( double pha,
double inc,
double ema )
inherited

Calculate the surface brightness using photometric angle information.

Parameters
phaPhase angle
incIncidence angle
emaEmission angle
Returns
double Surface brightness calculated by the photometric function

References PhotoModelAlgorithm().

Referenced by Isis::Albedo::Albedo(), Isis::AlbedoAtm::AlbedoAtm(), Isis::NumericalAtmosApprox::InrFunc2Bint(), Isis::Mixed::Mixed(), Isis::Albedo::NormModelAlgorithm(), Isis::AlbedoAtm::NormModelAlgorithm(), Isis::Mixed::NormModelAlgorithm(), Isis::MoonAlbedo::NormModelAlgorithm(), Isis::NoNormalization::NormModelAlgorithm(), Isis::Shade::NormModelAlgorithm(), Isis::ShadeAtm::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), PhtTopder(), and Isis::TopoAtm::TopoAtm().

◆ Hfunc()

double Isis::PhotoModel::Hfunc ( double u,
double gamma )
inlineinherited

Hapke's approximation to Chandra's H function.

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ Photo0B0Standard()

QString Isis::PhotoModel::Photo0B0Standard ( ) const
inlineinherited

Return photometric B0 standardization value.

References p_photo0B0Standard.

◆ PhotoB0()

double Isis::PhotoModel::PhotoB0 ( ) const
inlineinherited

Return photometric B0 value.

References p_photoB0.

◆ PhotoBh()

double Isis::PhotoModel::PhotoBh ( ) const
inlineinherited

Return photometric Bh value.

References p_photoBh.

◆ PhotoCh()

double Isis::PhotoModel::PhotoCh ( ) const
inlineinherited

Return photometric Ch value.

References p_photoCh.

◆ PhotoHg1()

double Isis::PhotoModel::PhotoHg1 ( ) const
inlineinherited

Return photometric Hg1 value.

References p_photoHg1.

◆ PhotoHg2()

double Isis::PhotoModel::PhotoHg2 ( ) const
inlineinherited

Return photometric Hg2 value.

References p_photoHg2.

◆ PhotoHh()

double Isis::PhotoModel::PhotoHh ( ) const
inlineinherited

Return photometric Hh value.

References p_photoHh.

◆ PhotoK()

double Isis::PhotoModel::PhotoK ( ) const
inlineinherited

Return photometric K value.

References p_photoK.

◆ PhotoKList()

std::vector< double > Isis::PhotoModel::PhotoKList ( ) const
inlineinherited

Return photometric k value list.

References p_photoKList.

◆ PhotoL()

double Isis::PhotoModel::PhotoL ( ) const
inlineinherited

Return photometric L value.

References p_photoL.

◆ PhotoLList()

std::vector< double > Isis::PhotoModel::PhotoLList ( ) const
inlineinherited

Return photometric l value list.

References p_photoLList.

◆ PhotoModelAlgorithm()

double Isis::Hapke::PhotoModelAlgorithm ( double phase,
double incidence,
double emission )
virtual

Implements Isis::PhotoModel.

References Isis::PhotoModel::Hfunc(), Isis::PhotoModel::p_algName, Isis::PhotoModel::p_photoB0, Isis::PhotoModel::p_photoBh, Isis::PhotoModel::p_photoCh, Isis::PhotoModel::p_photoCot2t, Isis::PhotoModel::p_photoCott, Isis::PhotoModel::p_photoHg1, Isis::PhotoModel::p_photoHg2, Isis::PhotoModel::p_photoHh, Isis::PhotoModel::p_photoOsr, Isis::PhotoModel::p_photoSr, Isis::PhotoModel::p_photoTant, Isis::PhotoModel::p_photoTheta, Isis::PhotoModel::p_photoThetaold, Isis::PhotoModel::p_photoWh, Isis::PI, and SetOldTheta().

◆ PhotoPhaseCurveList()

std::vector< double > Isis::PhotoModel::PhotoPhaseCurveList ( ) const
inlineinherited

Return photometric phase curve value list.

References p_photoPhaseCurveList.

◆ PhotoPhaseList()

std::vector< double > Isis::PhotoModel::PhotoPhaseList ( ) const
inlineinherited

Return photometric phase angle list.

References p_photoPhaseList.

◆ PhotoTheta()

double Isis::PhotoModel::PhotoTheta ( ) const
inlineinherited

Return photometric Theta value.

References p_photoTheta.

◆ PhotoWh()

double Isis::PhotoModel::PhotoWh ( ) const
inlineinherited

Return photometric Wh value.

References p_photoWh.

◆ PhtAcos()

double Isis::PhotoModel::PhtAcos ( double cosang)
staticinherited

Obtain arccosine of input value.

If the input value is outside of the valid range (-1 to 1), then obtain the arccosine of the closest valid value.

Parameters
cosanginput value to obtain arccosine of (in radians)
Returns
double Arccosine of cosang, if valid.
History
2008-11-05 Jeannie Walldren - This method was moved from NumericalMethods class.

Referenced by PhtTopder().

◆ PhtTopder()

double Isis::PhotoModel::PhtTopder ( double phase,
double incidence,
double emission )
inherited

Obtain topographic derivative of an arbitrary photometric function.

Parameters
phaseInput phase angle
incidenceInput incidence angle
emissionInput emission angle
Returns
double Gradient

References CalcSurfAlbedo(), PhtAcos(), and Isis::PI.

Referenced by Isis::Mixed::Mixed(), Isis::Mixed::NormModelAlgorithm(), Isis::Topo::NormModelAlgorithm(), Isis::TopoAtm::NormModelAlgorithm(), and Isis::TopoAtm::TopoAtm().

◆ SetOldTheta()

void Isis::Hapke::SetOldTheta ( double theta)
inline

Return photometric Theta value.

References Isis::PhotoModel::p_photoThetaold.

Referenced by PhotoModelAlgorithm().

◆ SetPhoto0B0Standard()

void Isis::Hapke::SetPhoto0B0Standard ( const QString & b0standard)
virtual

Determine if the Hapke opposition surge component is initialized to zero during the SetStandardConditions phase.

This parameter is limited to values that are true or false.

Parameters
b0standardHapke opposition surge initialization, default is true

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photo0B0Standard, Isis::IString::UpCase(), and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoB0()

void Isis::Hapke::SetPhotoB0 ( const double b0)
virtual

Return photometric Hh value.

Set the Hapke opposition surge component.

This is one of two opposition surge components needed for the Hapke model. This parameter is limited to values that are >=0.

Parameters
b0Hapke opposition surge component, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoB0, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoBh()

void Isis::Hapke::SetPhotoBh ( const double bh)
virtual

Return photometric Hg2 value.

Set the Hapke Legendre coefficient for the single particle phase function.

This is one of two coefficients needed for the single particle phase function. This parameter is limited to values that are >=-1 and <=1.

Parameters
bhHapke Legendre coefficient, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoBh, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoCh()

void Isis::Hapke::SetPhotoCh ( const double ch)
virtual

Return photometric Bh value.

Set the Hapke Legendre coefficient for the single particle phase function.

This is one of two coefficients needed for the single particle phase function. This parameter is limited to values that are >=-1 and <=1.

Parameters
chHapke Legendre coefficient, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoCh, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoHg1()

void Isis::Hapke::SetPhotoHg1 ( const double hg1)
virtual

Set the Hapke Henyey Greenstein coefficient for the single particle phase function.

This is one of two coefficients needed for the single particle phase function. This parameter is limited to values that are >-1 and <1.

Parameters
hg1Hapke Henyey Greenstein coefficient, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoHg1, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoHg2()

void Isis::Hapke::SetPhotoHg2 ( const double hg2)
virtual

Return photometric Hg1 value.

Set the Hapke Henyey Greenstein coefficient for the single particle phase function.

This is one of two coefficients needed for the single particle phase function. This parameter is limited to values that are >=0 and <=1.

Parameters
hg2Hapke Henyey Greenstein coefficient, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoHg2, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoHh()

void Isis::Hapke::SetPhotoHh ( const double hh)
virtual

Return photometric Wh value.

Set the Hapke opposition surge component.

This is one of two opposition surge components needed for the Hapke model. This parameter is limited to values that are >=0.

Parameters
hhHapke opposition surge component, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoHh, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoK()

virtual void Isis::PhotoModel::SetPhotoK ( const double k)
inlinevirtualinherited

Reimplemented in Isis::Minnaert.

References p_photoK.

◆ SetPhotoKList()

virtual void Isis::PhotoModel::SetPhotoKList ( const QString )
inlinevirtualinherited

Reimplemented in Isis::MinnaertEmpirical.

◆ SetPhotoL()

virtual void Isis::PhotoModel::SetPhotoL ( const double l)
inlinevirtualinherited

Reimplemented in Isis::LunarLambert.

References p_photoL.

◆ SetPhotoLList()

virtual void Isis::PhotoModel::SetPhotoLList ( const QString )
inlinevirtualinherited

Reimplemented in Isis::LunarLambertEmpirical.

◆ SetPhotoPhaseCurveList()

virtual void Isis::PhotoModel::SetPhotoPhaseCurveList ( const QString )
inlinevirtualinherited

Reimplemented in Isis::LunarLambertEmpirical, and Isis::MinnaertEmpirical.

◆ SetPhotoPhaseList()

virtual void Isis::PhotoModel::SetPhotoPhaseList ( const QString )
inlinevirtualinherited

Reimplemented in Isis::LunarLambertEmpirical, and Isis::MinnaertEmpirical.

◆ SetPhotoTheta()

void Isis::Hapke::SetPhotoTheta ( const double theta)
virtual

Return photometric B0 value.

Set the Hapke macroscopic roughness component.

This parameter is limited to values that are >=0 and <=90.

Parameters
thetaHapke macroscopic roughness component, default is 0.0

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoTheta, and Isis::IException::User.

Referenced by Hapke().

◆ SetPhotoWh()

void Isis::Hapke::SetPhotoWh ( const double wh)
virtual

Return photometric Ch value.

Set the Hapke single scattering albedo component.

This parameter is limited to values that are >0 and <=1.

Parameters
whHapke single scattering albedo component, default is 0.5

Reimplemented from Isis::PhotoModel.

References _FILEINFO_, Isis::PhotoModel::p_photoWh, and Isis::IException::User.

Referenced by Hapke().

◆ SetStandardConditions()

void Isis::Hapke::SetStandardConditions ( bool standard)
virtual

Sets whether standard conditions will be used.

Parameters
standardTrue if standard conditions are used.

Reimplemented from Isis::PhotoModel.

References Isis::PhotoModel::p_photo0B0Standard, Isis::PhotoModel::p_photoB0, Isis::PhotoModel::p_photoB0save, and Isis::PhotoModel::SetStandardConditions().

◆ StandardConditions()

bool Isis::PhotoModel::StandardConditions ( ) const
inlineinherited

Returns true if standard conditions are used, i.e., if SetStandardConditions(true) has been called. This is initialized to false in the constructor.

Member Data Documentation

◆ p_algName

QString Isis::PhotoModel::p_algName
protectedinherited

Referenced by Isis::Hapke::Hapke(), and Isis::Hapke::PhotoModelAlgorithm().

◆ p_photo0B0Standard

QString Isis::PhotoModel::p_photo0B0Standard
protectedinherited

Referenced by Photo0B0Standard(), Isis::Hapke::SetPhoto0B0Standard(), SetPhoto0B0Standard(), and Isis::Hapke::SetStandardConditions().

◆ p_photoB0

double Isis::PhotoModel::p_photoB0
protectedinherited

Referenced by Isis::Hapke::Hapke(), PhotoB0(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoB0(), SetPhotoB0(), and Isis::Hapke::SetStandardConditions().

◆ p_photoB0save

double Isis::PhotoModel::p_photoB0save
protectedinherited

Referenced by Isis::Hapke::Hapke(), and Isis::Hapke::SetStandardConditions().

◆ p_photoBh

double Isis::PhotoModel::p_photoBh
protectedinherited

Referenced by PhotoBh(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoBh(), and SetPhotoBh().

◆ p_photoBSpline

NumericalApproximation Isis::PhotoModel::p_photoBSpline
protectedinherited

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::MinnaertEmpirical::MinnaertEmpirical(), Isis::LunarLambertEmpirical::PhotoModelAlgorithm(), Isis::MinnaertEmpirical::PhotoModelAlgorithm(), Isis::LunarLambertEmpirical::~LunarLambertEmpirical(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoCh

double Isis::PhotoModel::p_photoCh
protectedinherited

Referenced by PhotoCh(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoCh(), and SetPhotoCh().

◆ p_photoCot2t

double Isis::PhotoModel::p_photoCot2t
protectedinherited

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoCott

double Isis::PhotoModel::p_photoCott
protectedinherited

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoHg1

double Isis::PhotoModel::p_photoHg1
protectedinherited

Referenced by Isis::Hapke::Hapke(), PhotoHg1(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoHg1(), and SetPhotoHg1().

◆ p_photoHg2

double Isis::PhotoModel::p_photoHg2
protectedinherited

Referenced by Isis::Hapke::Hapke(), PhotoHg2(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoHg2(), and SetPhotoHg2().

◆ p_photoHh

double Isis::PhotoModel::p_photoHh
protectedinherited

Referenced by Isis::Hapke::Hapke(), PhotoHh(), Isis::Hapke::PhotoModelAlgorithm(), Isis::Hapke::SetPhotoHh(), and SetPhotoHh().

◆ p_photoK

double Isis::PhotoModel::p_photoK
protectedinherited

Referenced by PhotoK(), Isis::Minnaert::PhotoModelAlgorithm(), Isis::Minnaert::SetPhotoK(), and SetPhotoK().

◆ p_photoKList

std::vector<double> Isis::PhotoModel::p_photoKList
protectedinherited

Referenced by Isis::MinnaertEmpirical::MinnaertEmpirical(), PhotoKList(), Isis::MinnaertEmpirical::SetPhotoKList(), Isis::MinnaertEmpirical::SetPhotoKList(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoKSpline

NumericalApproximation Isis::PhotoModel::p_photoKSpline
protectedinherited

Referenced by Isis::MinnaertEmpirical::MinnaertEmpirical(), Isis::MinnaertEmpirical::PhotoModelAlgorithm(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoL

double Isis::PhotoModel::p_photoL
protectedinherited

Referenced by PhotoL(), Isis::LunarLambert::PhotoModelAlgorithm(), Isis::LunarLambert::SetPhotoL(), and SetPhotoL().

◆ p_photoLList

std::vector<double> Isis::PhotoModel::p_photoLList
protectedinherited

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), PhotoLList(), Isis::LunarLambertEmpirical::SetPhotoLList(), Isis::LunarLambertEmpirical::SetPhotoLList(), and Isis::LunarLambertEmpirical::~LunarLambertEmpirical().

◆ p_photoLSpline

NumericalApproximation Isis::PhotoModel::p_photoLSpline
protectedinherited

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::LunarLambertEmpirical::PhotoModelAlgorithm(), and Isis::LunarLambertEmpirical::~LunarLambertEmpirical().

◆ p_photoOsr

double Isis::PhotoModel::p_photoOsr
protectedinherited

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoPhaseAngleCount

int Isis::PhotoModel::p_photoPhaseAngleCount
protectedinherited

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), and Isis::MinnaertEmpirical::MinnaertEmpirical().

◆ p_photoPhaseCurveList

std::vector<double> Isis::PhotoModel::p_photoPhaseCurveList
protectedinherited

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::MinnaertEmpirical::MinnaertEmpirical(), PhotoPhaseCurveList(), Isis::LunarLambertEmpirical::SetPhotoPhaseCurveList(), Isis::LunarLambertEmpirical::SetPhotoPhaseCurveList(), Isis::MinnaertEmpirical::SetPhotoPhaseCurveList(), Isis::MinnaertEmpirical::SetPhotoPhaseCurveList(), Isis::LunarLambertEmpirical::~LunarLambertEmpirical(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoPhaseList

std::vector<double> Isis::PhotoModel::p_photoPhaseList
protectedinherited

Referenced by Isis::LunarLambertEmpirical::LunarLambertEmpirical(), Isis::MinnaertEmpirical::MinnaertEmpirical(), PhotoPhaseList(), Isis::LunarLambertEmpirical::SetPhotoPhaseList(), Isis::LunarLambertEmpirical::SetPhotoPhaseList(), Isis::MinnaertEmpirical::SetPhotoPhaseList(), Isis::MinnaertEmpirical::SetPhotoPhaseList(), Isis::LunarLambertEmpirical::~LunarLambertEmpirical(), and Isis::MinnaertEmpirical::~MinnaertEmpirical().

◆ p_photoSr

double Isis::PhotoModel::p_photoSr
protectedinherited

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoTant

double Isis::PhotoModel::p_photoTant
protectedinherited

Referenced by Isis::Hapke::PhotoModelAlgorithm().

◆ p_photoTheta

double Isis::PhotoModel::p_photoTheta
protectedinherited

Referenced by Isis::Hapke::Hapke(), Isis::Hapke::PhotoModelAlgorithm(), PhotoTheta(), Isis::Hapke::SetPhotoTheta(), and SetPhotoTheta().

◆ p_photoThetaold

double Isis::PhotoModel::p_photoThetaold
protectedinherited

Referenced by Isis::Hapke::Hapke(), Isis::Hapke::PhotoModelAlgorithm(), and Isis::Hapke::SetOldTheta().

◆ p_photoWh

double Isis::PhotoModel::p_photoWh
protectedinherited

Referenced by Isis::Hapke::Hapke(), Isis::Hapke::PhotoModelAlgorithm(), PhotoWh(), Isis::Hapke::SetPhotoWh(), and SetPhotoWh().

The documentation for this class was generated from the following files:
