Isis::ControlNetFilter Class Reference

Filter Control Network. More...

#include <ControlNetFilter.h>

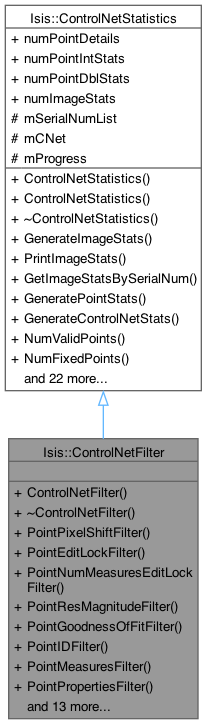

Inheritance diagram for Isis::ControlNetFilter:
Inheritance graph
Collaboration diagram for Isis::ControlNetFilter:
Collaboration graph

Public Types

enum  ePointDetails {
  total , ignore , locked , fixed ,
  constrained , freed
}
 Enumeration for Point Statistics. More...

enum  ePointIntStats {
  totalPoints , validPoints , ignoredPoints , fixedPoints ,
  constrainedPoints , freePoints , editLockedPoints , totalMeasures ,
  validMeasures , ignoredMeasures , editLockedMeasures
}
 Enumeration for Point int stats for counts such as valid points, measures etc. More...

enum  ePointDoubleStats {
  avgResidual , minResidual , maxResidual , minLineResidual ,
  maxLineResidual , minSampleResidual , maxSampleResidual , avgPixelShift ,
  minPixelShift , maxPixelShift , minLineShift , maxLineShift ,
  minSampleShift , maxSampleShift , minGFit , maxGFit ,
  minEccentricity , maxEccentricity , minPixelZScore , maxPixelZScore
}
 Enumeration for Point stats like Tolerances, PixelShifts which have double data. More...

enum  ImageStats {
  imgSamples , imgLines , imgTotalPoints , imgIgnoredPoints ,
  imgFixedPoints , imgLockedPoints , imgLocked , imgConstrainedPoints ,
  imgFreePoints , imgConvexHullArea , imgConvexHullRatio
}
 Enumeration for image stats. More...


Public Member Functions

 ControlNetFilter (ControlNet *pCNet, QString &psSerialNumFile, Progress *pProgress=0)
 Constructor.

 ~ControlNetFilter ()
 Destructor.

void PointPixelShiftFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Pixel Shift.

void PointEditLockFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Edit Lock.

void PointNumMeasuresEditLockFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Measure Edit Lock number.

void PointResMagnitudeFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Residual Magnitude.

void PointGoodnessOfFitFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by GoodnessOfFit.

void PointIDFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Point ID Expression.

void PointMeasuresFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Number of measures.

void PointPropertiesFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by properties.

void PointLatLonFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Lat Lon Range.

void PointDistanceFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by distance between points.

void PointMeasurePropertiesFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Measure properties.

void PointCubeNamesFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Points by Cube names.

void PointStatsHeader (void)
 Standard Point stats Header.

void PointStats (const ControlPoint &pcPoint)
 Standard Point Stats.

void CubeNameExpressionFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Cubes by Cube name expression.

void CubeNumPointsFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Cubes by number of points in the cube.

void CubeDistanceFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Cubes by Distance between points in a Cube.

void CubeConvexHullFilter (const PvlGroup &pvlGrp, bool pbLastFilter)
 Filter Cubes by its ConvexHull Ratio.

void CubeStatsHeader (void)
 Print the standard cube stats Header.

void SetOutputFile (QString psPrintFile)
 Set the output print file.

void PrintCubeFileSerialNum (const ControlMeasure &pcMeasure)
 Print Cube's File and Serial Number into the Output File.

void GenerateImageStats ()
 Generate stats like Total, Ignored, Fixed Points in an Image.

void PrintImageStats (const QString &psImageFile)
 Print the Image Stats into specified output file.

QVector< double > GetImageStatsBySerialNum (QString psSerialNum) const
 Returns the Image Stats by Serial Number.

void GeneratePointStats (const QString &psPointFile)
 Generate stats like Ignored, Fixed, Total Measures, Ignored by Control Point.

void GenerateControlNetStats (PvlGroup &pStatsGrp)
 Generate the Control Net Stats into the PvlGroup.

int NumValidPoints () const
 Returns the Number of Valid (Not Ignored) Points in the Control Net.

int NumFixedPoints () const
 Returns the Number of Fixed Points in the Control Net.

int NumConstrainedPoints () const
 Returns the number of Constrained Points in Control Net.

int NumFreePoints () const
 Returns the number of Constrained Points in Control Net.

int NumIgnoredPoints () const
 Returns the number of ignored points.

int NumEditLockedPoints () const
 Returns total number of edit locked points.

int NumMeasures () const
 Returns the total Number of Measures in the Control Net.

int NumValidMeasures () const
 Returns the total Number of valid Measures in the Control Net.

int NumIgnoredMeasures () const
 Returns the total Number of Ignored Measures in the Control Net.

int NumEditLockedMeasures () const
 Returns total number of edit locked measures in the network.

double GetAverageResidual () const
 Determine the average error of all points in the network.

double GetMinimumResidual () const
 Determine the minimum error of all points in the network.

double GetMaximumResidual () const
 Determine the maximum error of all points in the network.

double GetMinLineResidual () const
 Determine the minimum line error of all points in the network.

double GetMinSampleResidual () const
 Determine the minimum sample error of all points in the network.

double GetMaxLineResidual () const
 Determine the maximum line error of all points in the network.

double GetMaxSampleResidual () const
 Determine the maximum sample error of all points in the network.

double GetMinLineShift () const
 Get Min and Max LineShift.

double GetMaxLineShift () const
 Get network Max LineShift.

double GetMinSampleShift () const
 Get network Min SampleShift.

double GetMaxSampleShift () const
 Get network Max SampleShift.

double GetMinPixelShift () const
 Get network Min PixelShift.

double GetMaxPixelShift () const
 Get network Max PixelShift.

double GetAvgPixelShift () const
 Get network Avg PixelShift.


Static Public Attributes

static const int numPointDetails = 6

static const int numPointIntStats = 11

static const int numPointDblStats = 20

static const int numImageStats = 11


Protected Attributes

SerialNumberList mSerialNumList
 Serial Number List.

ControlNet * mCNet
 Control Network.

Progress * mProgress
 Progress state.


Detailed Description

Filter Control Network.

This class is used to filter Control Network based on different options

Author
2010-08-10 Sharmila Prasad
See also
ControlNetwork ControlPoint ControlMeasure

Member Enumeration Documentation

◆ ePointDetails

enum Isis::ControlNetStatistics::ePointDetails
inherited

Enumeration for Point Statistics.

Enumerator
total
ignore
locked
fixed
constrained
freed

◆ ePointDoubleStats

enum Isis::ControlNetStatistics::ePointDoubleStats
inherited

Enumeration for Point stats like Tolerances, PixelShifts which have double data.

Enumerator
avgResidual
minResidual
maxResidual
minLineResidual
maxLineResidual
minSampleResidual
maxSampleResidual
avgPixelShift
minPixelShift
maxPixelShift
minLineShift
maxLineShift
minSampleShift
maxSampleShift
minGFit
maxGFit
minEccentricity
maxEccentricity
minPixelZScore
maxPixelZScore

◆ ePointIntStats

enum Isis::ControlNetStatistics::ePointIntStats
inherited

Enumeration for Point int stats for counts such as valid points, measures etc.

Enumerator
totalPoints
validPoints
ignoredPoints
fixedPoints
constrainedPoints
freePoints
editLockedPoints
totalMeasures
validMeasures
ignoredMeasures
editLockedMeasures

◆ ImageStats

enum Isis::ControlNetStatistics::ImageStats
inherited

Enumeration for image stats.

Enumerator
imgSamples
imgLines
imgTotalPoints
imgIgnoredPoints
imgFixedPoints
imgLockedPoints
imgLocked
imgConstrainedPoints
imgFreePoints
imgConvexHullArea
imgConvexHullRatio

Constructor & Destructor Documentation

◆ ControlNetFilter()

Isis::ControlNetFilter::ControlNetFilter ( ControlNet * pCNet,
QString & psSerialNumFile,
Progress * pProgress = 0 )

Constructor.

ControlNetFilter Constructor.

Author
Sharmila Prasad (8/27/2010)
Parameters
pCNet- input Control Net
psSerialNumFile- Corresponding Serial Num List
pProgress- Progress of the processing

◆ ~ControlNetFilter()

Isis::ControlNetFilter::~ControlNetFilter ( )

Destructor.

ControlNetFilter Destructor.

Author
Sharmila Prasad (8/27/2010)

Member Function Documentation

◆ CubeConvexHullFilter()

void Isis::ControlNetFilter::CubeConvexHullFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Cubes by its ConvexHull Ratio.

Filter Cubes by its ConvexHull Ratio (Ratio = Convex Hull / Image Area).

ConvexHull is calculated only for valid Control Points

Author
Sharmila Prasad (11/2/2011)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

Group = Cube_ConvexHullRatio LessThan = double GreaterThan = double EndGroup

References _FILEINFO_, CubeStatsHeader(), Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNetStatistics::GetImageStatsBySerialNum(), Isis::ControlNetStatistics::imgConstrainedPoints, Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::imgFixedPoints, Isis::ControlNetStatistics::imgFreePoints, Isis::ControlNetStatistics::imgIgnoredPoints, Isis::ControlNetStatistics::imgLockedPoints, Isis::ControlNetStatistics::imgTotalPoints, Isis::SerialNumberList::remove(), Isis::SerialNumberList::serialNumber(), Isis::SerialNumberList::size(), Isis::IException::User, and Isis::ValidMaximum.

◆ CubeDistanceFilter()

void Isis::ControlNetFilter::CubeDistanceFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Cubes by Distance between points in a Cube.

Filter by distance between points in Cube Group by Image.

Author
Sharmila Prasad (8/17/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References _FILEINFO_, Isis::ControlPoint::Constrained, Isis::CameraFactory::Create(), CubeStatsHeader(), Isis::Angle::Degrees, Isis::SerialNumberList::fileName(), Isis::ControlPoint::Fixed, Isis::ControlPoint::Free, Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNetStatistics::GetImageStatsBySerialNum(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlMeasure::GetSample(), Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::mCNet, Isis::Distance::Meters, Isis::ControlNetStatistics::mSerialNumList, Isis::SerialNumberList::remove(), Isis::SerialNumberList::serialNumber(), Isis::SerialNumberList::size(), Isis::toString(), and Isis::IException::User.

◆ CubeNameExpressionFilter()

void Isis::ControlNetFilter::CubeNameExpressionFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Cubes by Cube name expression.

Filter Cube names in Control Network by cube name expression Group by Image.

Author
Sharmila Prasad (8/16/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References CubeStatsHeader(), Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNetStatistics::GetImageStatsBySerialNum(), Isis::ControlNetStatistics::imgConstrainedPoints, Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::imgFixedPoints, Isis::ControlNetStatistics::imgFreePoints, Isis::ControlNetStatistics::imgIgnoredPoints, Isis::ControlNetStatistics::imgLockedPoints, Isis::ControlNetStatistics::imgTotalPoints, Isis::SerialNumberList::remove(), Isis::SerialNumberList::serialNumber(), and Isis::SerialNumberList::size().

◆ CubeNumPointsFilter()

void Isis::ControlNetFilter::CubeNumPointsFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Cubes by number of points in the cube.

Filter the cube by the number of points in each cube Group by Image.

Author
Sharmila Prasad (8/16/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References _FILEINFO_, CubeStatsHeader(), Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNetStatistics::GetImageStatsBySerialNum(), Isis::ControlNetStatistics::imgConstrainedPoints, Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::imgFixedPoints, Isis::ControlNetStatistics::imgFreePoints, Isis::ControlNetStatistics::imgIgnoredPoints, Isis::ControlNetStatistics::imgLockedPoints, Isis::ControlNetStatistics::imgTotalPoints, Isis::SerialNumberList::remove(), Isis::SerialNumberList::serialNumber(), Isis::SerialNumberList::size(), Isis::toInt(), Isis::IException::User, and Isis::VALID_MAX2.

◆ CubeStatsHeader()

void Isis::ControlNetFilter::CubeStatsHeader ( void )

Print the standard cube stats Header.

Print the Standard Cube Stats Header into Output File.

Author
Sharmila Prasad (8/31/2010)

Referenced by CubeConvexHullFilter(), CubeDistanceFilter(), CubeNameExpressionFilter(), CubeNumPointsFilter(), and PointCubeNamesFilter().

◆ GenerateControlNetStats()

void Isis::ControlNetStatistics::GenerateControlNetStats ( PvlGroup & pStatsGrp)
inherited

Generate the Control Net Stats into the PvlGroup.

Generates the summary stats for the entire control network.

Stats include Total images, Total, Valid, Ignored, Fixed Points, Total, Valid, Ignored Measures and also Average, Min, Max Error, Min, Max Line and Sample Errors

Author
Sharmila Prasad (8/25/2010)
Parameters
pStatsGrp- Output Control Net Stats in Pvl format

References Isis::Statistics::Average(), Isis::ControlNetStatistics::GetAverageResidual(), Isis::ControlNetStatistics::GetAvgPixelShift(), Isis::ControlNetStatistics::GetMaximumResidual(), Isis::ControlNetStatistics::GetMaxLineResidual(), Isis::ControlNetStatistics::GetMaxLineShift(), Isis::ControlNetStatistics::GetMaxPixelShift(), Isis::ControlNetStatistics::GetMaxSampleResidual(), Isis::ControlNetStatistics::GetMaxSampleShift(), Isis::ControlNetStatistics::GetMinimumResidual(), Isis::ControlNetStatistics::GetMinLineResidual(), Isis::ControlNetStatistics::GetMinLineShift(), Isis::ControlNetStatistics::GetMinPixelShift(), Isis::ControlNetStatistics::GetMinSampleResidual(), Isis::ControlNetStatistics::GetMinSampleShift(), Isis::ControlNet::GetNumEditLockMeasures(), Isis::ControlNet::GetNumEditLockPoints(), Isis::ControlNet::GetNumPoints(), Isis::ControlNetStatistics::maxEccentricity, Isis::ControlNetStatistics::maxGFit, Isis::Statistics::Maximum(), Isis::ControlNetStatistics::maxPixelZScore, Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::minEccentricity, Isis::ControlNetStatistics::minGFit, Isis::Statistics::Minimum(), Isis::ControlNetStatistics::minPixelZScore, Isis::ControlNetStatistics::mSerialNumList, Isis::Null, Isis::ControlNetStatistics::NumConstrainedPoints(), Isis::ControlNetStatistics::NumFixedPoints(), Isis::ControlNetStatistics::NumFreePoints(), Isis::ControlNetStatistics::NumIgnoredMeasures(), Isis::ControlNetStatistics::NumMeasures(), Isis::ControlNetStatistics::NumValidMeasures(), Isis::ControlNetStatistics::NumValidPoints(), Isis::SerialNumberList::size(), and Isis::toString().

◆ GenerateImageStats()

void Isis::ControlNetStatistics::GenerateImageStats ( )
inherited

Generate stats like Total, Ignored, Fixed Points in an Image.

Generate the Image stats - imgSamples, imgLines, imgTotalPoints, imgIgnoredPoints, imgFixedPoints, imgLockedPoints, imgLocked, imgConstrainedPoints, imgFreePoints, imgConvexHullArea, imgConvexHullRatio.

Author
Sharmila Prasad (11/1/2011)

References Isis::Statistics::AddData(), Isis::Progress::CheckStatus(), Isis::ControlPoint::Constrained, Isis::SerialNumberList::fileName(), Isis::ControlPoint::Fixed, Isis::ControlPoint::Free, Isis::ControlNet::GetCubeSerials(), Isis::ControlNet::GetMeasuresInCube(), Isis::ControlPoint::GetType(), Isis::ControlNetStatistics::imgConstrainedPoints, Isis::ControlNetStatistics::imgConvexHullArea, Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::imgFixedPoints, Isis::ControlNetStatistics::imgFreePoints, Isis::ControlNetStatistics::imgIgnoredPoints, Isis::ControlNetStatistics::imgLines, Isis::ControlNetStatistics::imgLocked, Isis::ControlNetStatistics::imgLockedPoints, Isis::ControlNetStatistics::imgSamples, Isis::ControlNetStatistics::imgTotalPoints, Isis::ControlPoint::IsEditLocked(), Isis::ControlPoint::IsIgnored(), Isis::Cube::lineCount(), Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::mProgress, Isis::ControlNetStatistics::mSerialNumList, Isis::ControlNetStatistics::numImageStats, Isis::ControlPoint::Parent(), Isis::Cube::sampleCount(), Isis::Progress::SetMaximumSteps(), Isis::CubeManager::SetNumOpenCubes(), and Isis::Progress::SetText().

Referenced by Isis::ControlNetStatistics::ControlNetStatistics(), CubeConvexHullFilter(), CubeDistanceFilter(), CubeNameExpressionFilter(), CubeNumPointsFilter(), PointCubeNamesFilter(), PointDistanceFilter(), PointEditLockFilter(), PointGoodnessOfFitFilter(), PointIDFilter(), PointLatLonFilter(), PointMeasurePropertiesFilter(), PointMeasuresFilter(), PointNumMeasuresEditLockFilter(), PointPixelShiftFilter(), PointPropertiesFilter(), and PointResMagnitudeFilter().

◆ GeneratePointStats()

void Isis::ControlNetStatistics::GeneratePointStats ( const QString & psPointFile)
inherited

Generate stats like Ignored, Fixed, Total Measures, Ignored by Control Point.

Generate the statistics of a Control Network by Point Stats include ID, Type of each Control Point and Total, Ignored measures in each Control Point.

Author
Sharmila Prasad (8/24/2010)
Parameters
psPointFile- Output Point Statisitics File

References _FILEINFO_, Isis::Progress::CheckStatus(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::IException::Io, Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::mProgress, Isis::sBoolean, Isis::Progress::SetMaximumSteps(), Isis::Progress::SetText(), and Isis::sPointType.

◆ GetAverageResidual()

double Isis::ControlNetStatistics::GetAverageResidual ( ) const
inlineinherited

Determine the average error of all points in the network.

References Isis::ControlNetStatistics::avgResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetAvgPixelShift()

double Isis::ControlNetStatistics::GetAvgPixelShift ( ) const
inlineinherited

Get network Avg PixelShift.

References Isis::ControlNetStatistics::avgPixelShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetImageStatsBySerialNum()

QVector< double > Isis::ControlNetStatistics::GetImageStatsBySerialNum ( QString psSerialNum) const
inherited

Returns the Image Stats by Serial Number.

Author
Sharmila Prasad (11/3/2011)
Parameters
psSerialNum- Image serialNum
Returns
const QVector<double>

Referenced by CubeConvexHullFilter(), CubeDistanceFilter(), CubeNameExpressionFilter(), CubeNumPointsFilter(), and PointCubeNamesFilter().

◆ GetMaximumResidual()

double Isis::ControlNetStatistics::GetMaximumResidual ( ) const
inlineinherited

Determine the maximum error of all points in the network.

References Isis::ControlNetStatistics::maxResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMaxLineResidual()

double Isis::ControlNetStatistics::GetMaxLineResidual ( ) const
inlineinherited

Determine the maximum line error of all points in the network.

References Isis::ControlNetStatistics::maxLineResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMaxLineShift()

double Isis::ControlNetStatistics::GetMaxLineShift ( ) const
inlineinherited

Get network Max LineShift.

References Isis::ControlNetStatistics::maxLineShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMaxPixelShift()

double Isis::ControlNetStatistics::GetMaxPixelShift ( ) const
inlineinherited

Get network Max PixelShift.

References Isis::ControlNetStatistics::maxPixelShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMaxSampleResidual()

double Isis::ControlNetStatistics::GetMaxSampleResidual ( ) const
inlineinherited

Determine the maximum sample error of all points in the network.

References Isis::ControlNetStatistics::maxSampleResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMaxSampleShift()

double Isis::ControlNetStatistics::GetMaxSampleShift ( ) const
inlineinherited

Get network Max SampleShift.

References Isis::ControlNetStatistics::maxSampleShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMinimumResidual()

double Isis::ControlNetStatistics::GetMinimumResidual ( ) const
inlineinherited

Determine the minimum error of all points in the network.

References Isis::ControlNetStatistics::minResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMinLineResidual()

double Isis::ControlNetStatistics::GetMinLineResidual ( ) const
inlineinherited

Determine the minimum line error of all points in the network.

References Isis::ControlNetStatistics::minLineResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMinLineShift()

double Isis::ControlNetStatistics::GetMinLineShift ( ) const
inlineinherited

Get Min and Max LineShift.

References Isis::ControlNetStatistics::minLineShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMinPixelShift()

double Isis::ControlNetStatistics::GetMinPixelShift ( ) const
inlineinherited

Get network Min PixelShift.

References Isis::ControlNetStatistics::minPixelShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMinSampleResidual()

double Isis::ControlNetStatistics::GetMinSampleResidual ( ) const
inlineinherited

Determine the minimum sample error of all points in the network.

References Isis::ControlNetStatistics::minSampleResidual.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ GetMinSampleShift()

double Isis::ControlNetStatistics::GetMinSampleShift ( ) const
inlineinherited

Get network Min SampleShift.

References Isis::ControlNetStatistics::minSampleShift.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumConstrainedPoints()

int Isis::ControlNetStatistics::NumConstrainedPoints ( ) const
inlineinherited

Returns the number of Constrained Points in Control Net.

References Isis::ControlNetStatistics::constrainedPoints.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumEditLockedMeasures()

int Isis::ControlNetStatistics::NumEditLockedMeasures ( ) const
inlineinherited

Returns total number of edit locked measures in the network.

References Isis::ControlNetStatistics::editLockedMeasures.

◆ NumEditLockedPoints()

int Isis::ControlNetStatistics::NumEditLockedPoints ( ) const
inlineinherited

Returns total number of edit locked points.

References Isis::ControlNetStatistics::editLockedPoints.

◆ NumFixedPoints()

int Isis::ControlNetStatistics::NumFixedPoints ( ) const
inlineinherited

Returns the Number of Fixed Points in the Control Net.

References Isis::ControlNetStatistics::fixedPoints.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumFreePoints()

int Isis::ControlNetStatistics::NumFreePoints ( ) const
inlineinherited

Returns the number of Constrained Points in Control Net.

References Isis::ControlNetStatistics::freePoints.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumIgnoredMeasures()

int Isis::ControlNetStatistics::NumIgnoredMeasures ( ) const
inlineinherited

Returns the total Number of Ignored Measures in the Control Net.

References Isis::ControlNetStatistics::ignoredMeasures.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumIgnoredPoints()

int Isis::ControlNetStatistics::NumIgnoredPoints ( ) const
inlineinherited

Returns the number of ignored points.

References Isis::ControlNetStatistics::ignoredPoints.

◆ NumMeasures()

int Isis::ControlNetStatistics::NumMeasures ( ) const
inlineinherited

Returns the total Number of Measures in the Control Net.

References Isis::ControlNetStatistics::totalMeasures.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumValidMeasures()

int Isis::ControlNetStatistics::NumValidMeasures ( ) const
inlineinherited

Returns the total Number of valid Measures in the Control Net.

References Isis::ControlNetStatistics::validMeasures.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ NumValidPoints()

int Isis::ControlNetStatistics::NumValidPoints ( ) const
inlineinherited

Returns the Number of Valid (Not Ignored) Points in the Control Net.

References Isis::ControlNetStatistics::validPoints.

Referenced by Isis::ControlNetStatistics::GenerateControlNetStats().

◆ PointCubeNamesFilter()

void Isis::ControlNetFilter::PointCubeNamesFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Cube names.

Filter points based on the image serial # - Group by Point.

Author
Sharmila Prasad (8/16/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References CubeStatsHeader(), Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNetStatistics::GetImageStatsBySerialNum(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::imgConstrainedPoints, Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::imgFixedPoints, Isis::ControlNetStatistics::imgFreePoints, Isis::ControlNetStatistics::imgIgnoredPoints, Isis::ControlNetStatistics::imgLockedPoints, Isis::ControlNetStatistics::imgTotalPoints, Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::mSerialNumList, PointStatsHeader(), Isis::sBoolean, and Isis::sPointType.

◆ PointDistanceFilter()

void Isis::ControlNetFilter::PointDistanceFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by distance between points.

Filter points that are within given distance of some other point Group by Points.

Author
Sharmila Prasad (8/13/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References Isis::CameraFactory::Create(), Isis::Angle::Degrees, Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::mSerialNumList, Isis::Null, PointStats(), and PointStatsHeader().

◆ PointEditLockFilter()

void Isis::ControlNetFilter::PointEditLockFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Edit Lock.

Filter points based on the point EditLock.

Author
Sharmila Prasad (7/20/2011)

Header - PointID, Type, Ignore, EditLock, NumMeasures, NumIgnoredMeasures, NumLockedMeasures,

Parameters
pvlGrp- Deffile Input group
pbLastFilter- Is this the last filter - for printing purposes.

References Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, PointStatsHeader(), Isis::sBoolean, and Isis::sPointType.

◆ PointGoodnessOfFitFilter()

void Isis::ControlNetFilter::PointGoodnessOfFitFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by GoodnessOfFit.

Filter the Points based on the Measures Goodness ofFit value Group by Points.

Header: PointID, PointType, PointIgnored, PointEditLocked, TotalMeasures, MeasuresIgnored, MeasuresEditLocked, FileName, SerialNumber, GoodnessOfFit, MeasureIgnored, MeasureType, MeasureEditLocked, Reference

Author
Sharmila Prasad (8/16/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlMeasure::GetLogData(), Isis::ControlMeasureLogData::GetNumericalValue(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlMeasureLogData::GoodnessOfFit, Isis::ControlNetStatistics::mCNet, Isis::Null, PointStatsHeader(), PrintCubeFileSerialNum(), Isis::sBoolean, Isis::sPointType, and Isis::ValidMaximum.

◆ PointIDFilter()

void Isis::ControlNetFilter::PointIDFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Point ID Expression.

Filter PointID based on regular expression Group by Points.

Author
Sharmila Prasad (8/11/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, PointStats(), and PointStatsHeader().

◆ PointLatLonFilter()

void Isis::ControlNetFilter::PointLatLonFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Lat Lon Range.

Filters the Control Network based on Lat,Lon Range Group by Points.

Author
Sharmila Prasad (8/13/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References _FILEINFO_, Isis::CameraFactory::Create(), Isis::Angle::Degrees, Isis::Angle::degrees(), Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlMeasure::GetCubeSerialNumber(), Isis::Sensor::GetLatitude(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::Sensor::LocalRadius(), Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::mSerialNumList, PointStats(), PointStatsHeader(), Isis::Camera::SetImage(), Isis::Sensor::UniversalLatitude(), Isis::Sensor::UniversalLongitude(), Isis::IException::User, Isis::ValidMaximum, and Isis::ValidMinimum.

◆ PointMeasurePropertiesFilter()

void Isis::ControlNetFilter::PointMeasurePropertiesFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Measure properties.

Filter the Points which have measures of specified Measure type and Ignored Flag.

Group by Points

Author
Sharmila Prasad (8/13/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References Isis::ControlMeasure::Candidate, Isis::IString::DownCase(), Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlMeasure::IsIgnored(), Isis::ControlMeasure::Manual, Isis::ControlNetStatistics::mCNet, Isis::ControlNetStatistics::mSerialNumList, PointStats(), PointStatsHeader(), Isis::ControlMeasure::RegisteredPixel, Isis::ControlMeasure::RegisteredSubPixel, and Isis::sBoolean.

◆ PointMeasuresFilter()

void Isis::ControlNetFilter::PointMeasuresFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Number of measures.

Filters the Control Network based on the user specified number of measures in a Control Point.

Group by Points

Author
Sharmila Prasad (8/12/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References _FILEINFO_, Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, PointStats(), PointStatsHeader(), PrintCubeFileSerialNum(), Isis::sBoolean, Isis::toInt(), Isis::IException::User, and Isis::VALID_MAX2.

◆ PointNumMeasuresEditLockFilter()

void Isis::ControlNetFilter::PointNumMeasuresEditLockFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Measure Edit Lock number.

Filter points based on number of measures EditLocked.

Author
Sharmila Prasad (7/20/2011)

Header - PointID, Type, Ignore, EditLock, NumMeasures, NumIgnoredMeasures, NumLockedMeasures,

Parameters
pvlGrp- Deffile Input group
pbLastFilter- Is this the last filter - for printing purposes.

References _FILEINFO_, Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, PointStats(), PointStatsHeader(), PrintCubeFileSerialNum(), Isis::sBoolean, Isis::toInt(), Isis::IException::User, and Isis::VALID_MAX2.

◆ PointPixelShiftFilter()

void Isis::ControlNetFilter::PointPixelShiftFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Pixel Shift.

Filter Points by PixelShift.

Author
Sharmila Prasad (7/20/2011)
Parameters
pvlGrp- Deffile Input group
pbLastFilter- Is this the last filter - for printing purposes.

References _FILEINFO_, Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlMeasure::GetPixelShift(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, Isis::Null, PrintCubeFileSerialNum(), Isis::sBoolean, Isis::sPointType, Isis::toString(), Isis::IException::User, and Isis::ValidMaximum.

◆ PointPropertiesFilter()

void Isis::ControlNetFilter::PointPropertiesFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by properties.

Filter the Control Network based on Ignored, Fixed Point Properties Group by Points.

Author
Sharmila Prasad (8/12/2010)
Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References Isis::ControlPoint::Constrained, Isis::IString::DownCase(), Isis::ControlPoint::Fixed, Isis::ControlPoint::Free, Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlNetStatistics::mCNet, PointStats(), and PointStatsHeader().

◆ PointResMagnitudeFilter()

void Isis::ControlNetFilter::PointResMagnitudeFilter ( const PvlGroup & pvlGrp,
bool pbLastFilter )

Filter Points by Residual Magnitude.

Filters out the Control Network based on Residual Magnitude Criteria.

Group by Points

Author
Sharmila Prasad (8/11/2010)

Header: PointID, Type, Ignore, EditLock, FileName, SerialNum, ResidualMagnitude, MeasureIgnore, MeasureLocked, Reference,

Parameters
pvlGrp- Pvl Group containing the filter info
pbLastFilter- Flag to indicate whether this is the last filter to print the stats

References _FILEINFO_, Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNet::GetNumPoints(), Isis::ControlNet::GetPoint(), Isis::ControlMeasure::GetResidualMagnitude(), Isis::ControlNetStatistics::mCNet, Isis::Null, PrintCubeFileSerialNum(), Isis::sBoolean, Isis::sPointType, Isis::IException::User, and Isis::ValidMaximum.

◆ PointStats()

void Isis::ControlNetFilter::PointStats ( const ControlPoint & pcPoint)

Standard Point Stats.

Print the Standard Point Stats into Output file given the Control Point.

Author
Sharmila Prasad (8/31/2010)
Parameters
pcPoint

References Isis::sBoolean, and Isis::sPointType.

Referenced by PointDistanceFilter(), PointIDFilter(), PointLatLonFilter(), PointMeasurePropertiesFilter(), PointMeasuresFilter(), PointNumMeasuresEditLockFilter(), and PointPropertiesFilter().

◆ PointStatsHeader()

void Isis::ControlNetFilter::PointStatsHeader ( void )

Standard Point stats Header.

Print the Standard Point Stats Header into Output File.

Author
Sharmila Prasad (8/31/2010)

Referenced by PointCubeNamesFilter(), PointDistanceFilter(), PointEditLockFilter(), PointGoodnessOfFitFilter(), PointIDFilter(), PointLatLonFilter(), PointMeasurePropertiesFilter(), PointMeasuresFilter(), PointNumMeasuresEditLockFilter(), and PointPropertiesFilter().

◆ PrintCubeFileSerialNum()

void Isis::ControlNetFilter::PrintCubeFileSerialNum ( const ControlMeasure & pcMeasure)

Print Cube's File and Serial Number into the Output File.

Author
Sharmila Prasad (8/31/2010)
Parameters
pcMeasure- Measure's Cube and Serial #

References Isis::SerialNumberList::fileName(), and Isis::ControlNetStatistics::mSerialNumList.

Referenced by PointGoodnessOfFitFilter(), PointMeasuresFilter(), PointNumMeasuresEditLockFilter(), PointPixelShiftFilter(), and PointResMagnitudeFilter().

◆ PrintImageStats()

void Isis::ControlNetStatistics::PrintImageStats ( const QString & psImageFile)
inherited

Print the Image Stats into specified output file.

Author
Sharmila Prasad (9/1/2010)

Header: FileName, SerialNumber, TotalPoints, PointsIgnored, PointsLocked, Fixed, Constrained, Free

Parameters
psImageFile- Output Image Stats File

References _FILEINFO_, Isis::SerialNumberList::fileName(), Isis::ControlNetStatistics::imgConstrainedPoints, Isis::ControlNetStatistics::imgConvexHullRatio, Isis::ControlNetStatistics::imgFixedPoints, Isis::ControlNetStatistics::imgFreePoints, Isis::ControlNetStatistics::imgIgnoredPoints, Isis::ControlNetStatistics::imgLockedPoints, Isis::ControlNetStatistics::imgTotalPoints, Isis::IException::Io, Isis::ControlNetStatistics::mSerialNumList, Isis::SerialNumberList::size(), and Isis::IException::User.

◆ SetOutputFile()

void Isis::ControlNetFilter::SetOutputFile ( QString psPrintFile)

Set the output print file.

Get the output file and open the output file stream.

Author
Sharmila Prasad (9/7/2010)
Parameters
psPrintFile
pbPvl

Member Data Documentation

◆ mCNet

ControlNet* Isis::ControlNetStatistics::mCNet
protectedinherited

Control Network.

Referenced by Isis::ControlNetStatistics::ControlNetStatistics(), Isis::ControlNetStatistics::ControlNetStatistics(), CubeDistanceFilter(), Isis::ControlNetStatistics::GenerateControlNetStats(), Isis::ControlNetStatistics::GenerateImageStats(), Isis::ControlNetStatistics::GeneratePointStats(), PointCubeNamesFilter(), PointDistanceFilter(), PointEditLockFilter(), PointGoodnessOfFitFilter(), PointIDFilter(), PointLatLonFilter(), PointMeasurePropertiesFilter(), PointMeasuresFilter(), PointNumMeasuresEditLockFilter(), PointPixelShiftFilter(), PointPropertiesFilter(), PointResMagnitudeFilter(), and Isis::ControlNetStatistics::~ControlNetStatistics().

◆ mProgress

Progress* Isis::ControlNetStatistics::mProgress
protectedinherited

Progress state.

Referenced by Isis::ControlNetStatistics::ControlNetStatistics(), Isis::ControlNetStatistics::ControlNetStatistics(), Isis::ControlNetStatistics::GenerateImageStats(), and Isis::ControlNetStatistics::GeneratePointStats().

◆ mSerialNumList

SerialNumberList Isis::ControlNetStatistics::mSerialNumList
protectedinherited

Serial Number List.

Referenced by Isis::ControlNetStatistics::ControlNetStatistics(), CubeDistanceFilter(), Isis::ControlNetStatistics::GenerateControlNetStats(), Isis::ControlNetStatistics::GenerateImageStats(), PointCubeNamesFilter(), PointDistanceFilter(), PointLatLonFilter(), PointMeasurePropertiesFilter(), PrintCubeFileSerialNum(), and Isis::ControlNetStatistics::PrintImageStats().

◆ numImageStats

const int Isis::ControlNetStatistics::numImageStats = 11
staticinherited

Referenced by Isis::ControlNetStatistics::GenerateImageStats().

◆ numPointDblStats

const int Isis::ControlNetStatistics::numPointDblStats = 20
staticinherited

◆ numPointDetails

const int Isis::ControlNetStatistics::numPointDetails = 6
staticinherited

◆ numPointIntStats

const int Isis::ControlNetStatistics::numPointIntStats = 11
staticinherited
The documentation for this class was generated from the following files:
