Isis::ImageIoHandler Class Reference

Handles converting buffers to and from disk. More...

#include <ImageIoHandler.h>

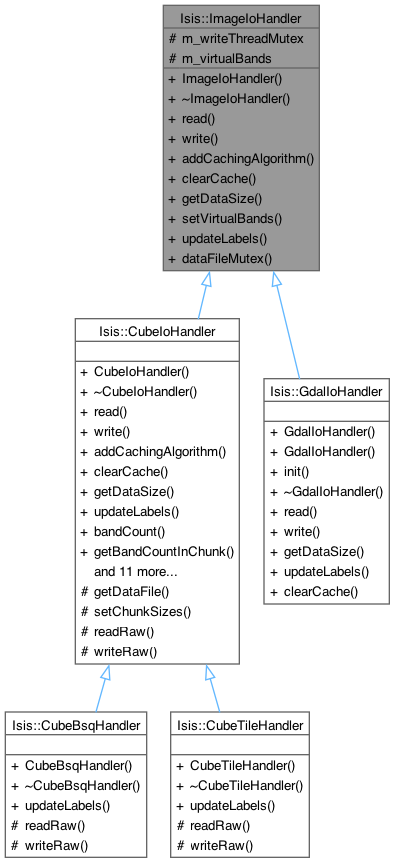

Inheritance diagram for Isis::ImageIoHandler:

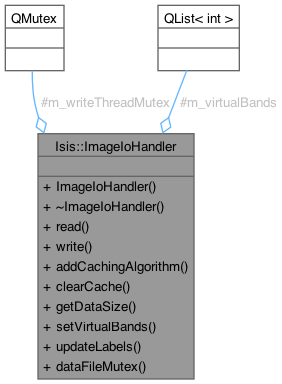

Collaboration diagram for Isis::ImageIoHandler:

Public Member Functions
	ImageIoHandler (const QList< int > *virtualBandList)
virtual	~ImageIoHandler ()
virtual void	read (Buffer &bufferToFill) const =0
virtual void	write (const Buffer &bufferToWrite)=0
virtual void	addCachingAlgorithm (CubeCachingAlgorithm *algorithm)
virtual void	clearCache (bool blockForWriteCache=true) const
virtual BigInt	getDataSize () const =0
void	setVirtualBands (const QList< int > *virtualBandList)
	This changes the virtual band list.
virtual void	updateLabels (Pvl &labels)=0
	Function to update the labels with a Pvl object.
QMutex *	dataFileMutex ()
	Get the mutex that this IO handler is using around I/Os on the given data file.

Protected Attributes
QMutex *	m_writeThreadMutex
	This enables us to block while the write thread is working.
QList< int > *	m_virtualBands
	Converts from virtual band to physical band.

Detailed Description

Handles converting buffers to and from disk.

This class handles converting buffers to and from disk. This class holds the cube chunks in memory and is capable of reading and writing them. It asks the caching algorithms to recommend cube chunks to not keep in memory. Children need to call setChunkSizes() in their constructor.

This class handles all of the virtual band conversions. This class also guarantees that unwritten cube data ends up read and written as NULLs. The default caching algorithm is a RegionalCachingAlgorithm.

Author

2011-??-?? Jai Rideout and Steven Lambright

Constructor & Destructor Documentation

ImageIoHandler()

Isis::ImageIoHandler::ImageIoHandler

(

const QList< int > *

virtualBandList

)

References m_virtualBands, m_writeThreadMutex, and setVirtualBands().

Referenced by Isis::CubeIoHandler::CubeIoHandler(), Isis::GdalIoHandler::GdalIoHandler(), and Isis::GdalIoHandler::GdalIoHandler().

~ImageIoHandler()

Isis::ImageIoHandler::~ImageIoHandler ( )

virtual

References m_virtualBands, and m_writeThreadMutex.

Member Function Documentation

addCachingAlgorithm()

void Isis::ImageIoHandler::addCachingAlgorithm ( CubeCachingAlgorithm * algorithm )

virtual

Reimplemented in Isis::CubeIoHandler.

clearCache()

void Isis::ImageIoHandler::clearCache ( bool blockForWriteCache = true ) const

virtual

Reimplemented in Isis::CubeIoHandler.

dataFileMutex()

QMutex * Isis::ImageIoHandler::dataFileMutex

(

)

Get the mutex that this IO handler is using around I/Os on the given data file.

A lock should be acquired before doing any reads/writes on the data file externally.

Returns

A mutex that can guarantee exclusive access to the data file

References m_writeThreadMutex.

getDataSize()

virtual BigInt Isis::ImageIoHandler::getDataSize ( ) const

pure virtual

Implemented in Isis::CubeIoHandler, and Isis::GdalIoHandler.

read()

virtual void Isis::ImageIoHandler::read ( Buffer & bufferToFill ) const

pure virtual

Implemented in Isis::CubeIoHandler, and Isis::GdalIoHandler.

setVirtualBands()

void Isis::ImageIoHandler::setVirtualBands

(

const QList< int > *

virtualBandList

)

This changes the virtual band list.

Parameters

virtualBandList

A list where the indices are the vbands and the values are the physical bands. The values are 1-based. This can be specified as NULL, in which case the vbands are the physical bands. The virtual band list is copied (the pointer provided isn't remembered).

References m_virtualBands.

Referenced by ImageIoHandler().

updateLabels()

virtual void Isis::ImageIoHandler::updateLabels ( Pvl & labels )

pure virtual

Function to update the labels with a Pvl object.

Parameters

labels

Pvl object to update with

Implemented in Isis::CubeBsqHandler, Isis::CubeIoHandler, Isis::CubeTileHandler, and Isis::GdalIoHandler.

write()

virtual void Isis::ImageIoHandler::write ( const Buffer & bufferToWrite )

pure virtual

Implemented in Isis::CubeIoHandler, and Isis::GdalIoHandler.

Member Data Documentation

m_virtualBands

QList<int>* Isis::ImageIoHandler::m_virtualBands

protected

Converts from virtual band to physical band.

Referenced by ImageIoHandler(), Isis::CubeIoHandler::read(), Isis::GdalIoHandler::read(), setVirtualBands(), Isis::GdalIoHandler::write(), and ~ImageIoHandler().

m_writeThreadMutex

QMutex* Isis::ImageIoHandler::m_writeThreadMutex

protected

This enables us to block while the write thread is working.

Referenced by Isis::CubeIoHandler::CubeIoHandler(), dataFileMutex(), ImageIoHandler(), Isis::CubeIoHandler::read(), Isis::CubeIoHandler::write(), and ~ImageIoHandler().

---

The documentation for this class was generated from the following files:

• /Users/astamile/ISIS3/isis/src/base/objs/ImageIoHandler/ImageIoHandler.h
• /Users/astamile/ISIS3/isis/src/base/objs/ImageIoHandler/ImageIoHandler.cpp
